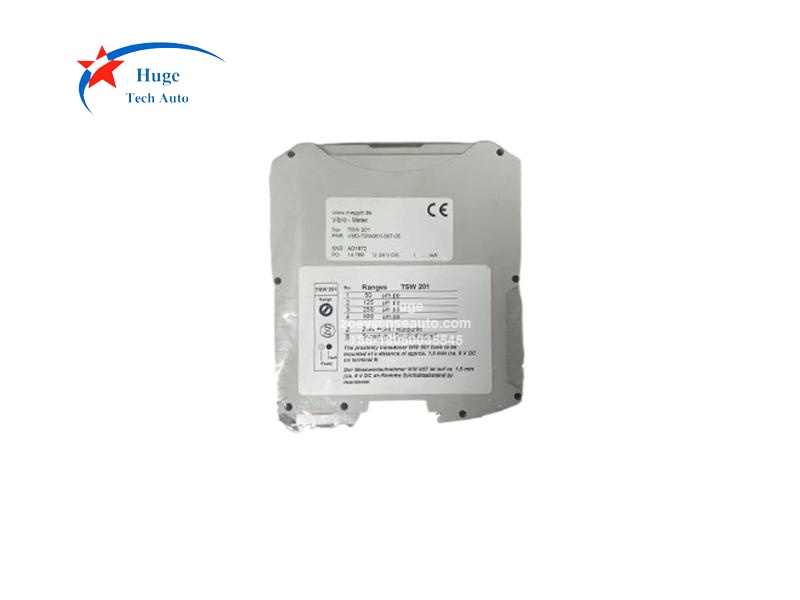

TSW201 VMD-TSW201-007-05 one-channel vibration transmitter
Description:
TSW201 VMD-TSW201-007-05 match with WW007, frequency range 1 … 250 Hz and with 5 m system length.
The one-channel vibration transmitter TSW201 measures with the assistance of the proximity transducer non-contacting the shaft vibration Sppm. It allows measurements according to DIN ISO 10817-1 and forming the peak to peak value. The TSW201 is partially equivalent to the API 610.
Measuring ranges:
Selected over a Switch at the front panel.
(1) 50 µm pp,
(2) 125 µm pp,
(3) 250 µm pp,
(4) 500 µm pp.
Frequency Range: 1 … 250 Hz (optional 5 … 1,5 kHz) Factory-designed
Internal Control:
Controlled is an interruption or a short circuit in the proximity transducer or in the cable-connections. Furthermore, it will be recognized when the measuring object is clearly placed out of the measuring range.
Fault indication:
By the red LED on the front panel and as 2 mA-Signal from the analogy output.
1 Analog output (Current): Sppm 4 … 20 mA, max. load 500 Ω For 0 … 100% measuring range
1 Analog output (Voltage): Static distance signal with the sensitivity of 4mV/µm with superimposed vibration (short circuit protection and decoupled non-reaction) R Load ≥ 10 kΩ.
Offset
To compensate for plants-related influences, the 4 mA point can be in the range of app. ± 1 mA to be adjusted at the front.
Ordering Information:
VMD – TSW201 – X1 – X2
X1:
Proximity Probe:WW007 007
WW009 009
X2:
Total System Length
5 m 05
10 m 10
