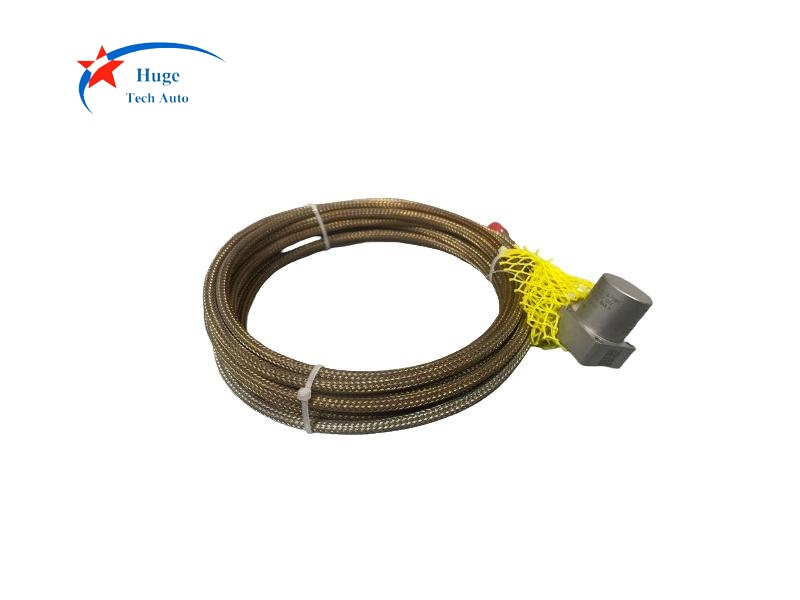

CA306 144-306-000-321 Piezoelectric Accelerometer

Brand:
Ungrouped
Item NO.:
CA306 144-306-000-321
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
Switzerland
Shipping Port:
Xiamen
Lead Time：
In stock
Warranty:
1 year

Product Detail

CA306 144-306-000-321 Piezoelectric Accelerometer
Description:
CA306 is high temperature piezoelectric accelerometer, has been designed specifically used in harsh industrial conditions, for aero-derivative and industrial gas turbines.
The accelerometers feature a rugged design with hermetically sealed connectors. An integral mineral insulated (MI) cable with stainless most hostile environments.
The differential output signal minimizes noise pick-up due to electrical ground potentials. A version with side connector is available when an integral cable is not required.

Features:
Designed for high temperature gas turbine applications
Continuous operation up to 500°C
High output of 50 pC/g
Improved transverse frequency resonance
4-hole mounting according to ARINC Characteristic 554
Certified for use in potentially explosive atmospheres
Construction: Hermetically welded Inconel 600 superalloy

Frequency response: 5 Hz to 3 000 Hz

Specifications:
GENERAL
Input power requirements: None
Signal transmission: 2 pole system insulated from casing, charge output
Signal processing: Charge amplifier
OPERATING
(at 23°C ± 5°C)
Sensitivity (at 120 Hz): 50 pC/g ± 5%
Dynamic measuring range (random): 0.01 g to 100 g peak
Overload capacity (spikes): Up to 200 g peak
Linearity: ±1% over dynamic measuring range
Transverse sensitivity: <5%
Resonant frequency: >15 kHz
Frequency response (typical): ± 5% between 5 and 3 000 Hz (lower cut-off frequency is determined by electronics used)
Internal insulation resistance: Min. 109 Ω pole-ground, Min. 109 Ω pole-pole

Ordering Information:
144-306-000-111 Length L : 3000±100
144-306-000-121 6000±150
144-306-000-131 9000±200
144-306-000-141 12000±200
