CA901 144-901-000-282 Piezoelectric Accelerometer

CA901 144-901-000-282 Piezoelectric Accelerometer with 3.5m cable length

Item NO.:
CA901
Order(MOQ):
1 PC
Payment:
T/T
Market Price:
9999
Price:
$21500
Product Origin:
Switzerland
Shipping Port:
Xiamen
Lead Time：
In stock
Warranty:
1 year

Product Detail

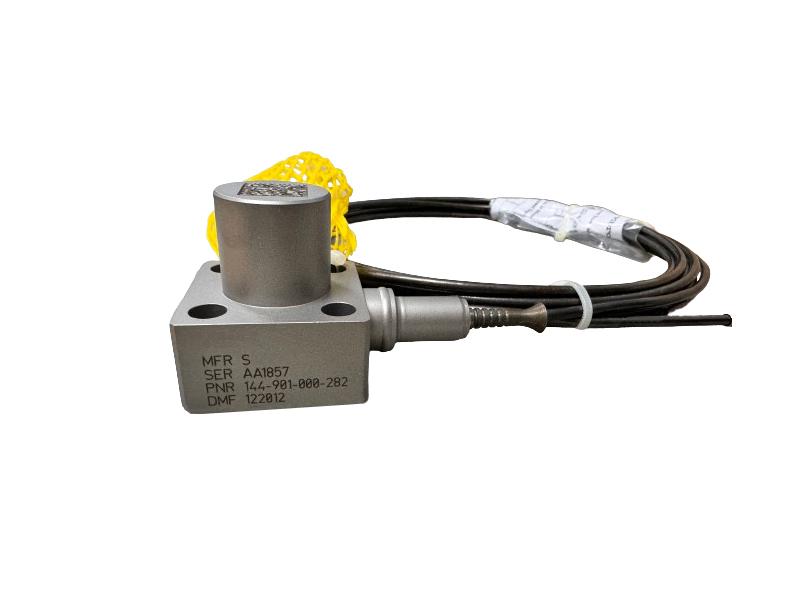

CA901 144-901-000-282 Piezoelectric Accelerometer with 3.5m cable length
Description：
CA901 is the Piezoelectric Accelerometer with 3.5m cable length, which can be applicated in the heavy duty gas turbine. The use of VC2 type single crystal material in the CA901 compression mode accelerometer provides an extremely stable instrument.

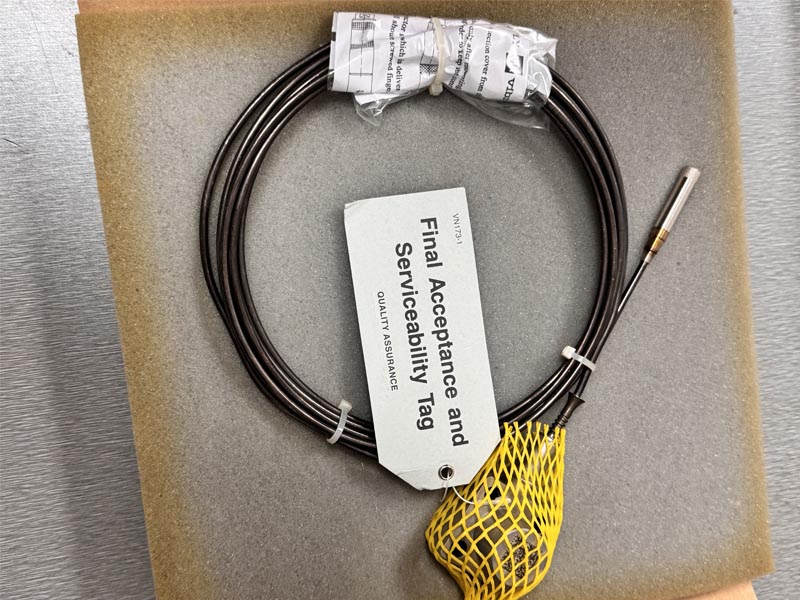

The transducer is designed for long-term monitoring or development testing. It is fitted with an integral mineral insulated cable (twin conductors) which is terminated with a Lemo or a high-temperature connector from Vibro-Meter.
FEATURES
Extreme temperature capability
Operational as loose part monitoring accelerometer
Proven reliability
Meets NRC guide 1.133, IEEE 323-1974. Qualified to DIN 25.475.1
Integral case insulation
Certified for use in potentially explosive atmospheres
Frequency response: 3 Hz to 2 800 Hz
Sensitivity: 10 pC/g
Temperature range (operational): -196°C to +700°C
SPECIFICATIONS
GENERAL
Input power requirements: None
Signal transmission: 2 pole system insulated from casing, charge output
Signal processing: Charge converter
OPERATING (at +23°C ±5°C)
Sensitivity (at 120 Hz): 10 pC/g ±5%
Dynamic measuring range (random): 0.001 g to 200 g peak
Overload capacity (spikes): Up to 500 g peak
Linearity: ±1% over dynamic measuring range
Transverse sensitivity: < 5%
Resonance frequency (mounted): > 17 kHz nominal
Frequency response
•3 to 2800 Hz nominal: ±5% (lower cutoff frequency is determined by the electronics used)
•2800 to 3700 Hz: < 10%
Internal insulation resistance: Min. 109 Ω
Capacitance (nominal)
•Pole to pole: 80 pF for transducer + 200 pF/m of cable
•Pole to casing: 18 pF for transducer + 300 pF/m of cable
Ordering Information:
CA901 144-901-000-282: cable length 3.5 m
CA901 144-901-000-212: cable length 5 m
CA901 144-901-000-252: cable length 8 m
CA901 144-901-000-222: cable length 12.5 m

CA901 144-901-000-601: cable length 5 m (EX version)

CA901 144-901-000-282
