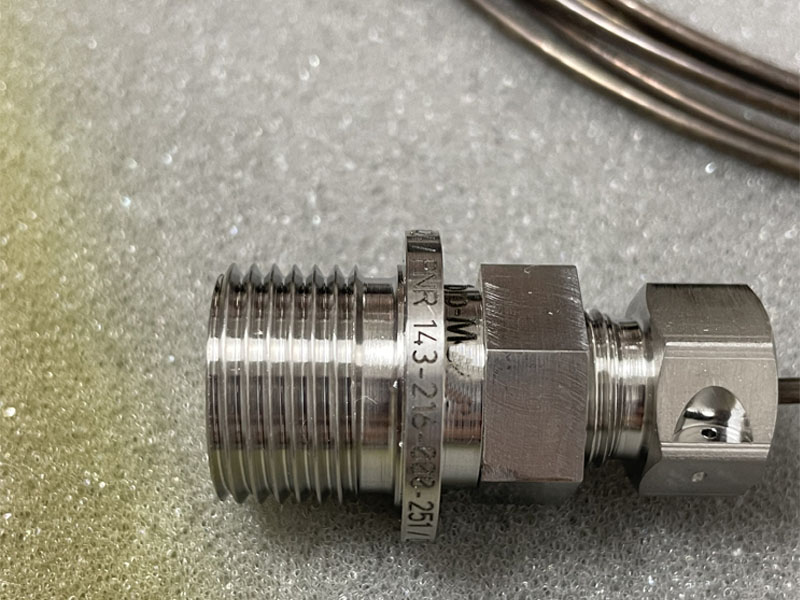

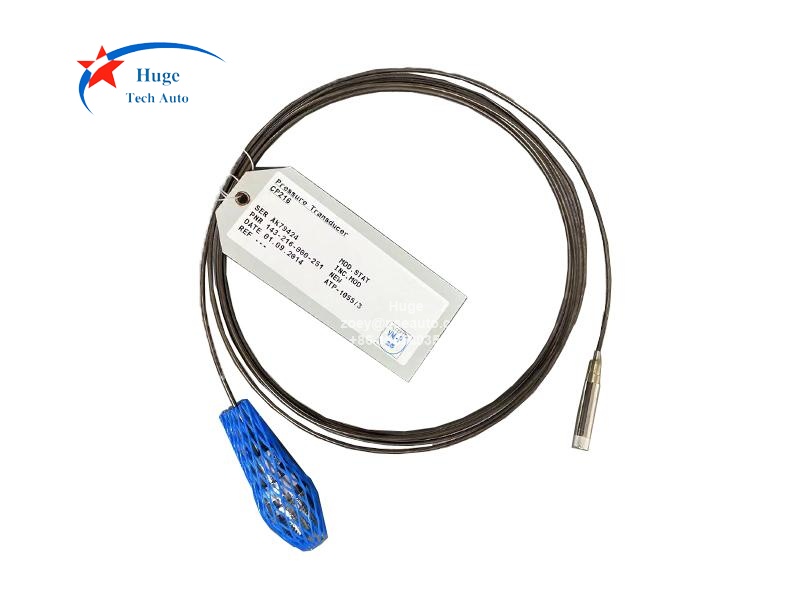

CP216 143-216-000-251 Piezoelectric pressure transducer
Description：
CP216 143-216-000-251 is the Piezoelectric pressure transducer with integral cable 3 meter length. CP216 are available to connect the transducer to an IPC 704 signal conditioner.
The use of man-made piezoelectric material in the CP216 a compression-mode dynamic pressure transducer produces an extremely stable device. The CP 216 is designed for long-term monitoring or development testing over wide temperature ranges in extreme environments, such as gas turbines. The transducer is fitted with an integral mineral insulated cable (twin conductors) that can be terminated with either a LEMO connector or a hightemperature connector developed by Vibro-Meter.
FEATURES
Extreme temperature capability -70°C to +520°C
High-pressure capability 350 bar
High reliability
Internal case insulation
Certified for use in potentially explosive atmospheres
Sensitivity 200 pC/bar (typical)
SPECIFICATIONS
ELECTRICAL
Input power requirements: None
Signal transmission: 2-pole system insulated from casing, charge output
Signal processing: Charge converter
OPERATING (at +23°℃ +5°C)
Sensitivity (at 2 Hz): 200pC/bar typical
Dynamic measuring range (random): 0.0005 bar to 250 bar nominal
Overload capacity(spikes): Up to 350 bar
Linearity: + 1% over dynamic measuring range
Acceleration sensitivity: ≤ 0.5 pC/g (≤ 0.0025 bar/g)
Resonant frequency: > 80 kHz
Frequency response: 2 to 15 000 Hz +5% (lower cut-off frequency is determi-ned by the electronics used)
Internal insulation resist: Min. 109 Ω (5x104 at +450°C)
Capacitance (nominal)
Pole to pole: 320 pF for transducer + 200 pF/m of cable
Pole to casing: 13 pF for transducer + 300 pF/m of cable
ENVIRONMENTAL
Temperature range
•Continuous : -54°C to +470°C
•Extreme : -70°C to +520°C
Shock acceleration : < 2000 g peak (half sine 1 ms) along sensitive axis
Ordering Information:
Piezoelectric Pressure Transducer with VM Lemo connector
CP216  143-216-000-0XX
143-216-000-021 cable length 0.5 m
143-216-000-031 cable length 1 m
143-216-000-041 cable length 2 m
143-216-000-051 cable length 3 m
143-216-000-061
143-216-000-071
Piezoelectric Pressure Transducer with VM high-temperature connector
CP216 143-216-000-1XX
143-216-000-121 cable length 0.5 m
143-216-000-131 cable length 1 m
143-216-000-141 cable length 2 m
143-216-000-151 cable length 3 m
143-216-000-161
143-216-000-251
143-216-000-351
