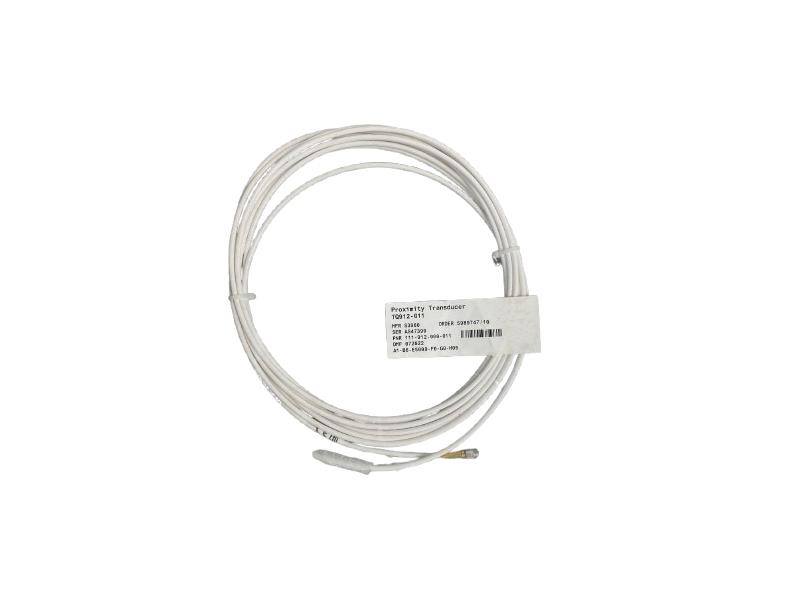

TQ912 111-912-000-011 Proximity Sensors Description： TQ912 111-912-000-011 A1-B6-E5000-F0-G0-H05 is a coil of wire that is moulded inside the tip of the device, made of PPS (polyphenylene sulfide), a high-performance, high-temperature engineering thermoplastic. The sensor body is made of stainless steel. The target material must, in all cases, be metallic. TQ912 is for reverse-mount applications. TQ912 body is available with metric or imperial threads and have an integral coaxial cable terminated with a self-locking miniature coaxial connector. TQ912 sensor’s integral cable and the EA90x extension cables are available in various lengths, which can be combined to obtain a particular total system length (TSL) for an application. Optional interconnection protectors (IP172), junction boxes (JB118) and other housings are available for the mechanical and environmental protection of the connection between a TQ9xx sensor’s integral cable and a EA90x extension cable. Ordering number: TQ912 proximity sensor TQ912 111-912-000-011-AX-BX-EX-FX-GX-HX Warranty: 12 months. Lead time: 1-2 working days. Terms of payment:T/T and Western Union. Courier partners: DHL, UPS, TNT, FedEx and EMS. Technical specification, manuals and data sheets Related items: TQ902 111-902-000-011 EA902 913 - 902 - 000 - 011 IQS900 204 - 900 - 000 - 011
