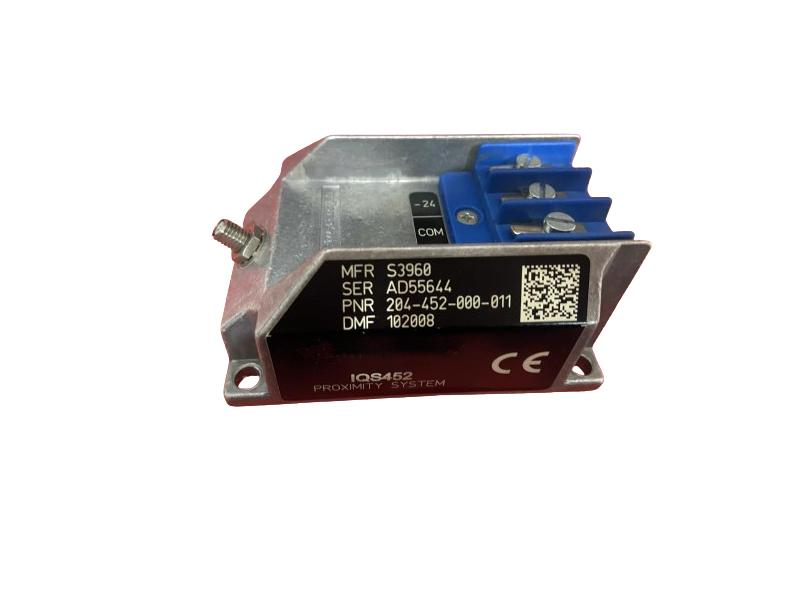

IQS452 204-452-000-211 Proximity Measurement System Signal Conditioner
Description：
The HF modulator/demodulator in the IQS 451, 452, 453 signal conditioner supplies a driving signal to the matching proximity transducer. This generates the necessary electromagnetic field used to measure the gap between the transducer tip and the target, using the eddy current principle. As this gap distance varies, the output of the conditioner provides a dynamic signal proportional to the movement of the target.
The power for the transducer-conditioner system is obtained from the associated processor modules or rack power supply. The conditioner circuitry is made of high-quality components and is mounted and potted in an aluminium extrusion to seal out moisture and dust. Please refer to the accessory list for the range of available enclosures for additional protection and for multi-channel installations. IQS452 204-452-000-011 is standard version, with 5 meters system length, sensitivity 4 mV/μm.
Ordering Information:

Related Items:
IQS452 204-452-000-221 standard version, 10m system length
IQS452 204-452-000-211 standard version,  5m system length
