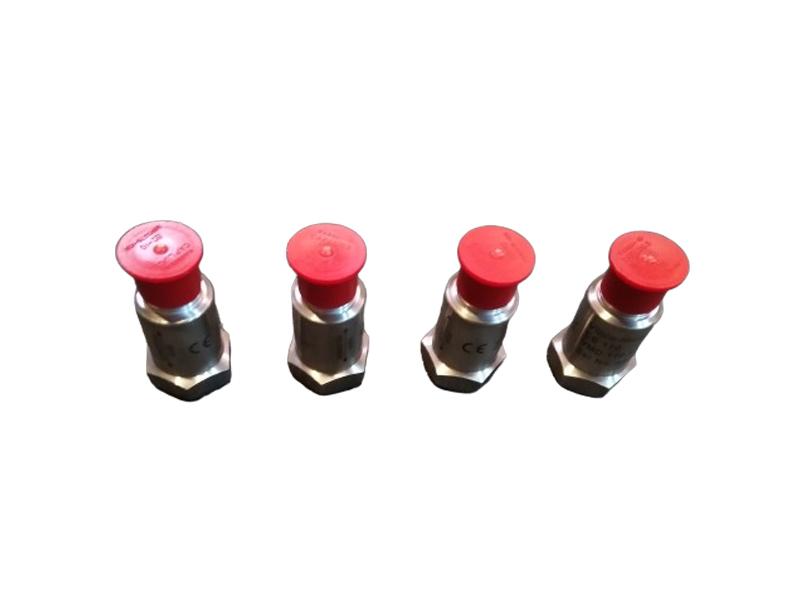

CE110 110-100-CT-VO Acceleration sensor
Description：
Standard Sensitivity: 100 mV/g ±5% (Nominal at 80 Hz)
Frequency Response: 2 Hz to 10 kHz ±5% (-3 dB at 0.8 Hz)
Mounted Base Resonance: 18 kHz (nominal)
Isolation Base: isolated
Dynamic Range: ±80g
Transverse Sensitivity: Less than 5%
Electrical Noise: 0.1 mg max
Current Range: 0.5 mA to 8 mA
Temperature Range: -55°C to +140 ºC
Bias Voltage: 12 Volts DC (nominal)
Case Material: Stainless steel
Mounting Torque: 8 Nm
Weight: 110 g (nominal)
Sealing: IP67
Maximum cable length： 1000 meters
Standard cable length： 5 meters for AT and EX versions, cable diameter 4mm
Mounting connector： 2 pin MS for CT versions
ATEX version： Intrinsic safe accelerometer ATEX Group I & II Approved
Barrier： MTL 728- BAS01ATEX7202, P&F Z728- BAS01ATEX7005 or any other Barrier that conforms
to note 4 of ATX011
Ordering Information:
