ABA160 830-160-000-011 Industrial Housing

Brand:
Ungrouped
Item NO.:
ABA160
Order(MOQ):
1 PC
Payment:
T/T
Market Price:
999
Price:
$999
Product Origin:
Switzerland
Shipping Port:
Xiamen
Lead Time：
In stock
Weight：
440 g
Warranty:
1 year

Product Detail

ABA160 830-160-000-111 Industrial Housing
Description：
ABA160 as a mounting accessory, can protect again mechanical damage, water and dust.
Features:
Several models and configurations, suitable for 1 up to 10 conditioners.
Diecast polyester or aluminium enclosure, fully insulated and corrosion resistant
Ex certified versions

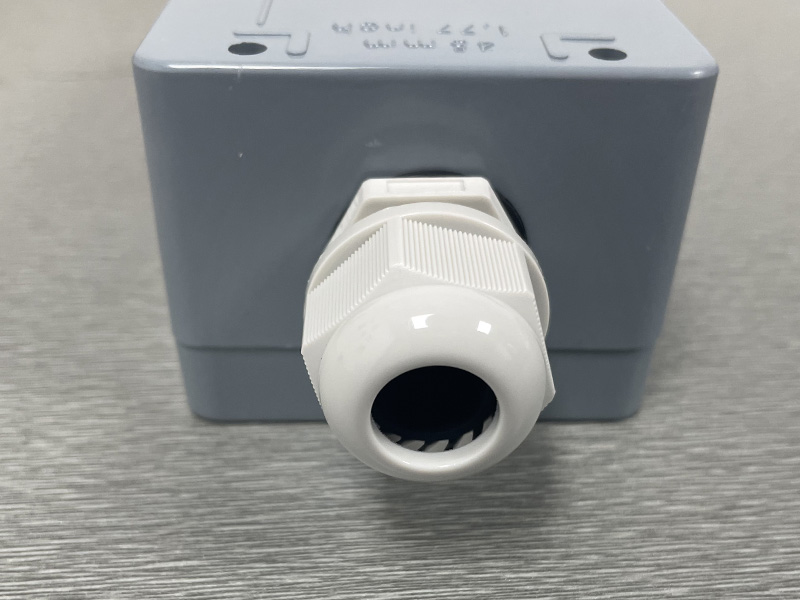

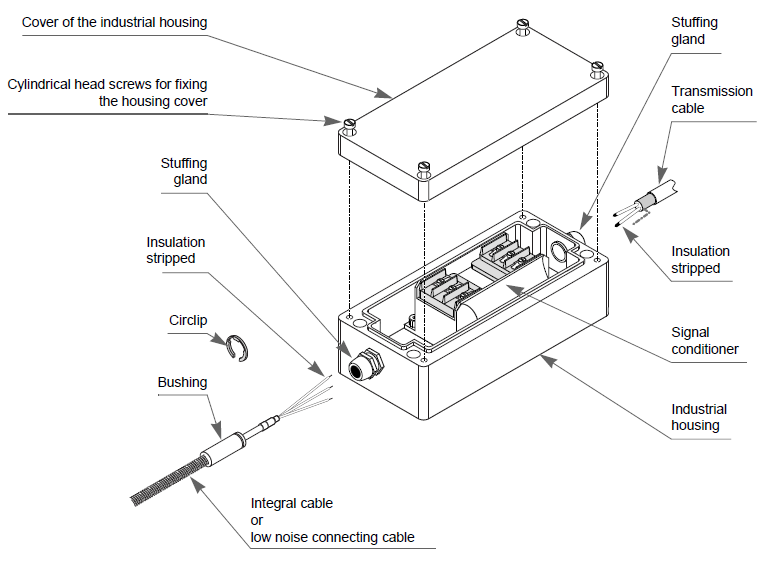

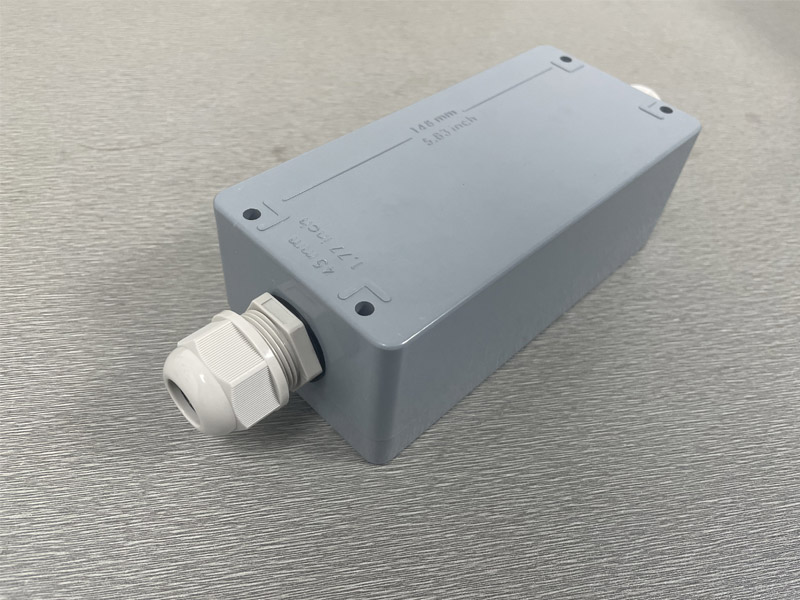

This industrial housing is used for the mechanical and environmental protection of one IPC704 signal conditioner. It is supplied with an aluminium base plate and two stuffing glands for input and output cables. This enclosure also insulates the IPC704 electronic circuitry, thereby preventing earth loops.
Material： Polyester reinforced with fibre-glass
Protection class : IP 65, according to IEC classification
Sealing： Silicone gasket
Temperature range: -40 to +100°C
Chemical : Good resistance to sea water, acids, alkaline solutions, solvents, gasoline and oils
Finish： Black colour, surface resistance < 109 Ω
Flammability：Self-extinguishing, halogen free
Exi certificate：PTB Ex-81/3102
Stuffing glands：Reinforced polyamid or nickel-plated brass
Seals： Perbunan N
Mounting： M4 x 20 Allen head screws
Dimensions：160 x 75 x 55 mm
Weight：440 g
Ordering Information:
ABA160 830-160-000-111
