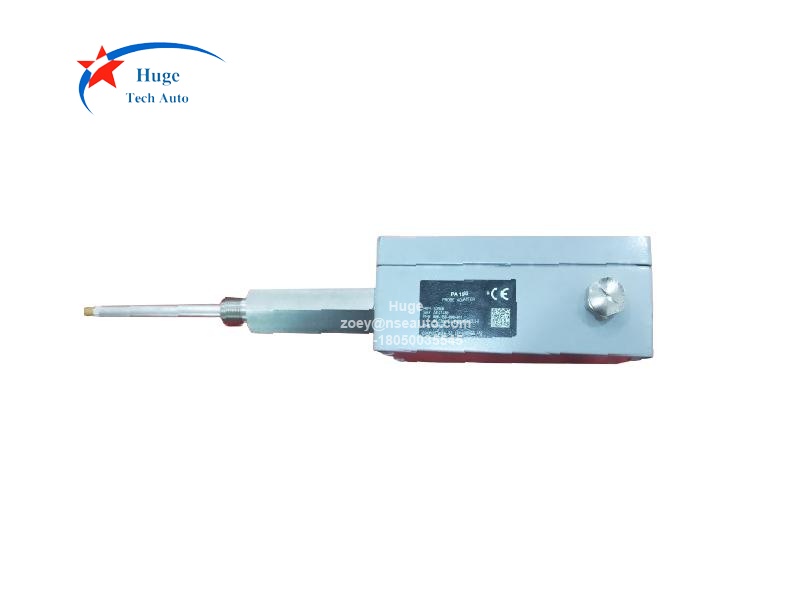

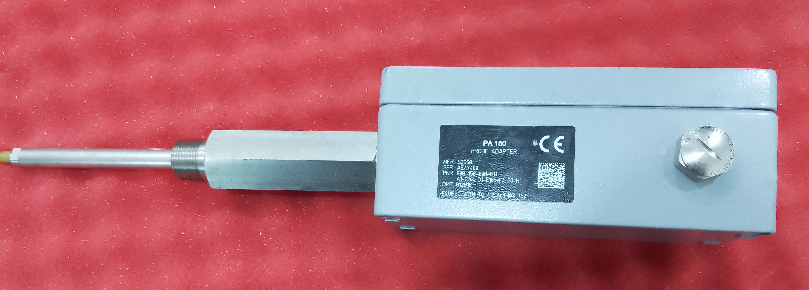

PA150 800-150-000-011 Probe Mounting Adaptor with Proximity System
Description:
PA150 800-150-000-011 A1-C144-D3-E105-F4-G3-H1 including IQS452 204-452-000-051 and TQ412 111-412-000-112 A1-B1-E010-F0-G000-H01.

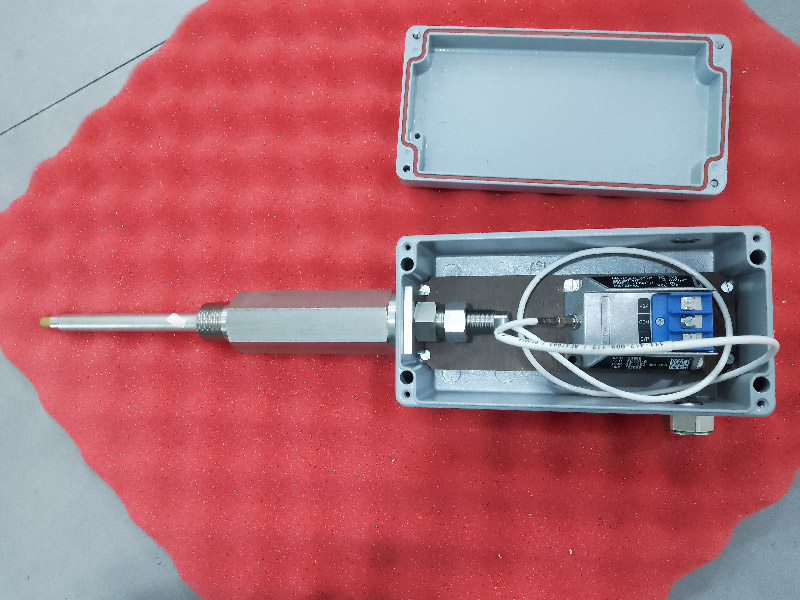

The PA150 consists of a complete, self-contained measuring chain, which includes a TQ412 proximity transducer with 1m cable, and a standard lQS 452 signal conditioner in the probe adapter housing， eliminating the need for an external extension cable.
This probe adapter permits the external mounting of the reverse mount type proximity transducer without machine disassembly, and the removable housing allows easier gap adjustment even while the machine is running.
Being designed for harsh industrial environments, the adjustable stainless steel rod and polyester housing assembly protect the transducer and the signal conditioner.
Measuring range: 2 mm or 4 mm
Operating temperature: (Transducer) -40°C to +180°C， (Conditioner)-30°C to +70°C
Sensitivity: 4 mV/um or 8 mV/um， 1.25 μA/um or 2.5 μA/μm
Frequency response: DC to 20 kHz (-3 dB)
TQ 412 Proximity Transducer
GENERAL
Transducer input requirements: High-frequency power source via matching conditioner type lQS452
ENVIRONMENTAL
Temperature ranges
Transducer: :-40°C to +180°C with drift<5% (operation), +180°C to +220°C with drift>5% (short-term survival)
Cable: -100°C to +200°C
Connector: -65°C to +85°C
Heat shrinkable sleeve (modified Polyolefin): -55°C to +135°C
Protection class(according to lEC 529 and DIN 40050): The tip of the transducer is rated lP 68. The connection between the transducer body and its integral cable is ratedIP 64
Transducer construction: Wire coil ② 8 mm, Torlon (polyamide-imide) tip, encapsulated in stainlesssteel body (AlSl 316L) with high-temperature epoxy glue
Integral cable: FEP covered 70 Ω coaxial cable, Ø 3.6 mm
Connector: Miniature coaxial male connector type AMP 1-330 723-0, NB : This should be hand-tightened only when connecting
lQS 452 Signal Conditioner
OUTPUT CHARACTERISTICS
Voltage output, 3-wire configuration
Voltage at min. GAP: -1.6 V
Voltage at max. GAP: -17.6 V
Dynamic range: 16 V
Output impedance: 500 Ω
Short-circuit current： 45 mA
Current output, 2-wire configuration
Current at min. GAP： 15.5 mA
Current at max. GAP： 20.5 mA
Dynamic range： 5 mA
Output capacitance： 1 nF
Qutput inductance： 100 μH
SUPPLY
Voltage：-20 V to -32 V
Current： 13 ±1 mA (25 mA max.)
Supply input capacitance：1 nF
Supply input inductance： 100 μH
Probe Adapter
ENVIRONMENTAL (SEE ORDERING OPTION A)
Use in explosive atmospheres： Standard or explosive versions
ROD (SEE ORDERING OPTION C)
Material: Stainless steel 1.4301
Length: See Ordering Information
Probe mounting thread: M10x1
ADAPTER ASSEMBLY(SEE ORDERING OPTIONS D & E)
Material: Stainless steel 1.4305
Adapter length and mounting thread: See Ordering Information
O-ring seal: Viton (FPM),0 13 x1.5 mm
CABLE FITTINGS (SEE ORDERING OPTION F)
Stuffing gland: See Ordering Information
Material
Option F1: Nickel-plated brass
Available in Ex-approved version for use in hazardous locations
Environment: 11 2 G/D (Zones 1, 2) EEx e ll

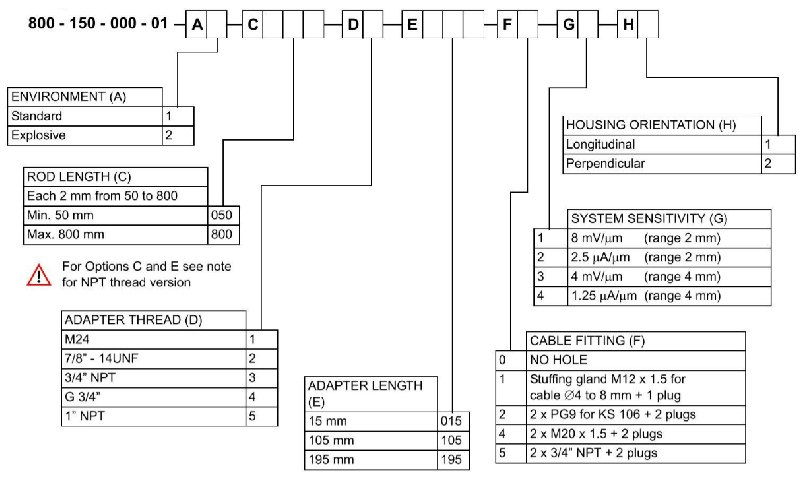

Ordering Information:
