AE119 800-119-000-025 Housing expansion probe 50mm measuring range

Housing expansion probe 50mm measuring range AE119 800-119-000-025 A1-B1

Brand:
Ungrouped
Item NO.:
AE119 800-119-000-025
Order(MOQ):
1 PC
Payment:
T/T
Market Price:
999
Price:
$999
Product Origin:
Switzerland
Shipping Port:
Xiamen
Lead Time：
In stock
Weight：
4kg
Warranty:
1 year

Product Detail

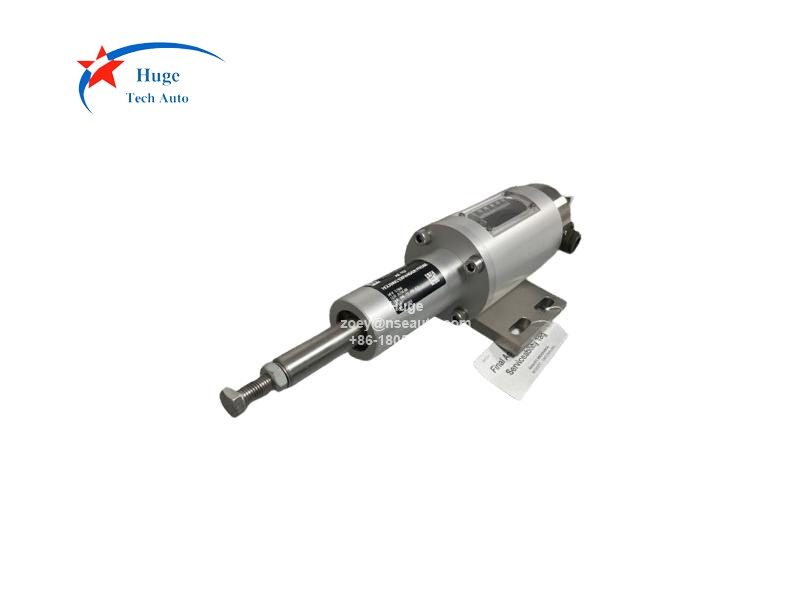

AE119 800-119-000-025 Housing expansion probe 50mm measuring range
Description:
AE 119 transducer uses the eddy current principle so it is non-wearing. The processing electronics are contained in its supporting body and it requires a 20 to 32 VDC supply to produce an output signal that is proportional to the measured absolute expansion.
The transducer uses the 2-wire current transmission technique. The output current range is from 4 to 20 mA, with the maximum current given when the rod is fully extracted.
The AE 119 housing expansion probe can measure the absolute expansion that all thermal machines experience due to variations in temperature. The transducer is available with either a 50 mm or 100 mm measuring range and is suitable for medium or large gas turbines and steam turbines.

SPECIFICATIONS:
Electrical
Input power requirements
• Voltage: +20 to +32 VDC
• Current: 60 mA nominal at 24 VDC (70 mA max.)
• Max. load resistance: 500 Ω
Operating
Frequency response
• Electrical: 0 to 1 000 Hz
• Mechanical: 0 to 5 Hz
Accuracy
• Linearity: < 1% of FSD
• Resolution: < 0.05‰ of FSD
• Reproducibility: < 0.05‰ of FSD
Temperature drift
•On zero: < 150 ppm/°C of FSD
• On sensitivity: < 150 ppm/°C of FSD
Output signal
• Constant current signal: 4 to 20 mA
• Start position: Adjusted to 4 mA ± 0.15 mA (rod fully inserted)
• End position: Adjusted to 20 mA ± 0.3 mA (rod fully extracted) Note: The transducer and measuring tube are calibrated at the factory

Ordering Information:
AE119 800-119-000-025

Q&A:
How could we distinguish AE119 measuring range?
The measuring range can be distinguished by the last group of order number.
AE119 800-119-000-025 measuring range is 50 mm
AE119 800-119-000-112 measuring range is 100 mm

What's the difference between A1-B1 and A2-B2.
The Orientation is difference.
A1-B1 means the left Orientation
A2-B2 means the right Orientation
