Home / TSI SYSTEM / Spare Parts / CI185 VMD 185-020-AT-CA-F Acceleration sensor with Armored cable
CI185

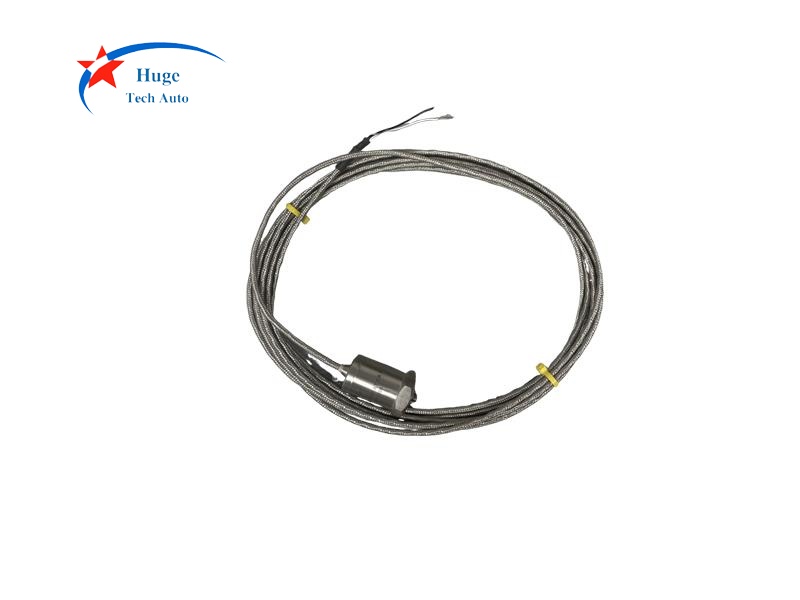

CI185 VMD 185-020-AT-CA-F Acceleration sensor with Armored cable

Acceleration sensor CI185 VMD 185-020-AT-CA-F

  • Brand:

    Ungrouped

  • Item NO.:

    CI185 VMD 185-020-AT-CA-F

  • Order(MOQ):

    1 PC

  • Payment:

    T/T

  • Market Price:

    999

  • Price:

    $999

  • Product Origin:

    Switzerland

  • Shipping Port:

    Xiamen

  • Lead Time：

    In stock

  • Warranty:

    1 year
Request A Quote
Product Detail
Acceleration sensor CI185 VMD 185-020-AT-CA-F
Description:

CI185 VMD 185-020-AT-CA-F is for PLC interface Output in Velocity units as 4...20 mA signal. Loop powered, with armored cable.

TECHNICAL DATA:
Output Current: 4-20 mA DC proportional to RMS velocity (mm/s)
Frequency Response: 2 Hz to 1 kHz ±10 %
Dynamic Range: 50 g peak
Mounted Resonance: 5 kHz min
Isolation: Base isolated
Operating Temp Range: -25 to 90 ºC
Temperature Sensitivity: 0.08 %/ºC
Transverse Sensitivity: Less than 5 %
Supply Voltage: 12-32 Volts DC (4-20 mA) Loop powered
Standard Cable length: 5 meters armoured PTFE
Maximum Cable length: 1000 meter, for IS version see ATX009
Mating Connector: 2 pin MS for CT connection
Case Material: Stainless steel
Weight: 150 gms (nominal)

Ordering Information:
