EA402 913-402-000-013 A1-E040-F1-G038 Extension cable with Flexible Stainless
Description:

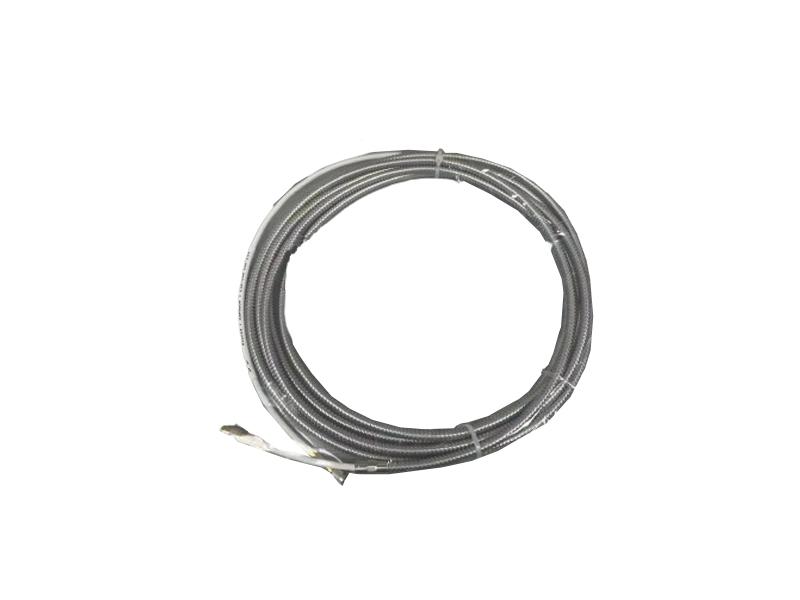

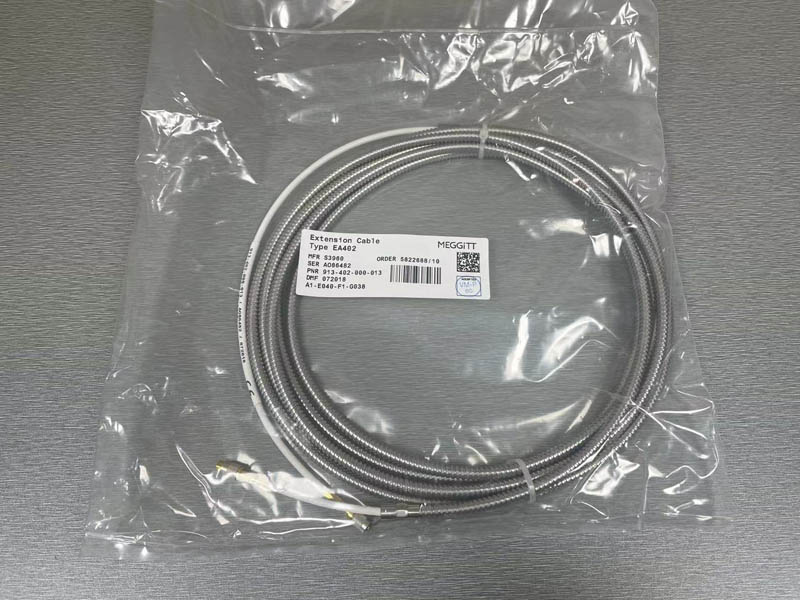

EA402 913-402-000-013 A1-E040-F1-G038 is 4.0 meters cabel length, Flexible stainless steel hose.

The system is based around a TQ402 or TQ412 non-contact transducer and an IQS450 signal conditioner. EA402 can be matched with TQ402 and TQ412 transducers.  These form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or current proportional to the distance between the transducer tip and the target, such as a machine shaft. The TQ402 transducer can be matched with a single EA402 extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.

Specifications:
Temperature ranges
• Transducer : −40 to +180 °C with drift < 5% (operating). +180 to +220 °C with drift > 5% (short-term survival).
• Transducer and cable : −40 to +195 °C if used in an Ex Zone
• Cable, connector and optional protection : −40 to +200 °C
Protection rating (according to IEC 60529)：The head of the proximity transducer (transducer tip and integral cable) is rated IP68
Vibration (according to IEC 60068-2-26)：5 g peak between 10 and 500 Hz
Shock acceleration (according to IEC 60068-2-27)：15 g peak (half sine-wave, 11 ms duration)
Physical characteristics
Transducer construction：Wire coil Ø 8 mm, Torlon (polyamide-imide) tip, encapsulated in stainless steel body (AISI 316L) with high-temperature epoxy glue
Integral and extension cables : FEP covered 70 Ω coaxial cable, Ø 3.6 mm
Connectors : Self-locking miniature coaxial connectors
Optional protection
Flexible stainless steel hose (protection tube）：The stainless steel hose provides additional mechanical protection but is not leak-tight
FEP sheath (extruded fluorinated ethylene propylene) : The FEP sheath provides resistance to almost all chemicals and low permeability to liquids, gases and moisture. It is also flexible, low friction and mechanically tough.
