CV213 110-213-000-012 Velocity Transducers

Brand:
Ungrouped
Item NO.:
CV213 110-213-000-012
Order(MOQ):
1 PC
Payment:
T/T
Market Price:
9999
Price:
$6000
Product Origin:
Switzerland
Shipping Port:
Xiamen
Lead Time：
In stock
Weight：
0.4 kg
Warranty:
1 year

Product Detail

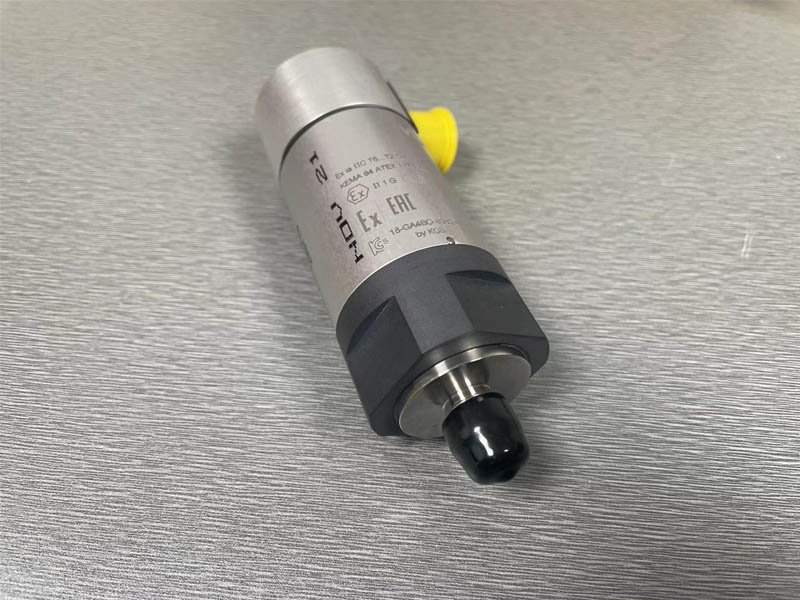

CV213 110-213-000-012 Velocity transducers
Description:
The CV213 110-213-000-012 velocity transducers are designed to measure absolute vibration at low frequencies. When used with a cable assembly, the transducer can be connected directly to the monitoring electronics without the need for an additional signal conditioner and power supply.
CV213 is intended for high-temperature applications.
Good sensitivity and rugged design make CV213 110-213-000-012 suitable for all types of low-speed industrial machinery. Their anodised aluminium case and watertight sealed connector allow them to withstand damp and corrosive environments.
The transducer’s sensing element consists of a coil moving around a permanent magnet. This assembly produces a voltage directly proportional to the vibration velocity. The signal is generated without the need for an external power source, a feature that makes these devices suitable for portable measurement applications.

Specifications:
Operating principle: Moving coil and magnet
Power supply: No external power supply required
Signal transmission: 2-wire system insulated from casing, voltage-based output
Sensitivity
Directionality: Calibrated along the long axis of the transducer
Nominal sensitivity at 22 °C (71.6 °F) ± 5 °C: 20 mV/ mm / s (508 mV/ in / s) ± 5% with signal of 100 Hz
Frequency range: 10 Hz to 1 kHz
Typical frequency response
• 10 Hz: −3 dB
• 30 to 400 Hz: ± 0.5 dB
• 400 Hz to 1 kHz: ±1 dB
Resonant frequency: 10 Hz ± 1 Hz (nominal)
Transverse sensitivity: Max.±10%
Output impedance: <700 Ω
Internal insulation resistance at 22°C (71.6°F)±5°C
• Case to (+)pole: >10⁷ Ω
• Case to(-)pole: >10⁷Ω
• Machine to case: >10⁷Ω
