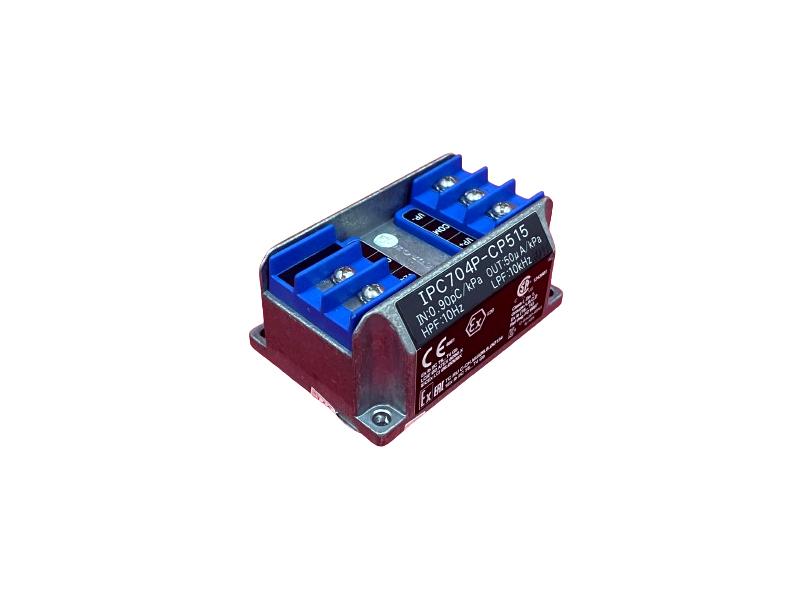

IPC704 244-704-000-511 signal conditioner

IPC704 244-704-000-511 proximity measurement system signal conditioner

Brand:
Ungrouped
Item NO.:
IPC704
Order(MOQ):
1 PC
Payment:
T/T
Shipping Port:
XIAMEN
Lead Time：
IN STOCK
Warranty:
1 Year

Product Detail

IPC704 244-704-000-511 Signal Conditioner using GaPO4 piezoelectric material
Description:
The IPC 704 signal conditioner converts the chargebased signal from a piezoelectric-based transducer into a current or a voltage signal. This current or voltage signal is transmitted to the processing electronics via a standard 2-wire or 3-wire transmission cable.
The current modulation technique allows transmission over a distance of up to 1 km. A GSI galvanic separation unit is required for this configuration.
The electronic circuitry of the IPC 704 signal conditioner is incorporated into a moulded aluminium enclosure. The signal conditioner has configurable high-pass and low-pass filters and an optional integrator to give a velocity output. Furthermore, RFI filters protect the input and output against radiofrequency interference and other electromagnetic influences.
A range of installation options are available for the IPC 704 signal conditioner, including:
A polyester enclosure providing environmental protection against dust, oil and water jets.
A mounting adaptor allowing the IPC 704 signal conditioner to be mounted on a DIN rail.
Two versions of the IPC 704 signal conditioner are available:
An IPC 704 for sensors using standard piezoelectric materials, for example, CA xxx, CP 10x and CP 2xx (ordering number 244-704-000-042-... ).
An IPC 704 for sensors using GaPO4 piezoelectric material, for example, CP 50x (ordering number 244-704-000-511-... ).
Ordering Information:
IPC704 244-704-000-042
IPC704 244-704-000-511
