IOC4T 200-560-000-113 voltage-drop adaptor
Description:

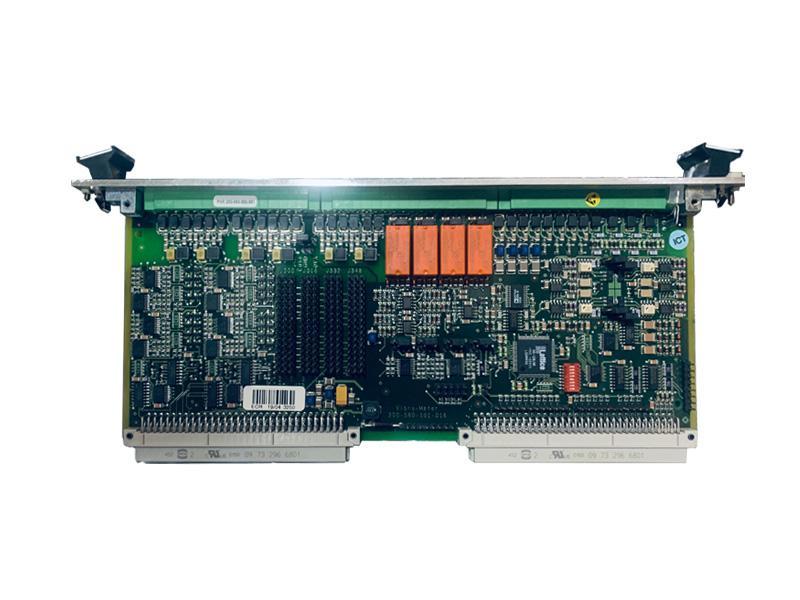

The IOC4T input /output card acts as a signal interface for the machinery protection card. It is installed in the rear rack and connects directly to the rack backplane via two connectors.
Input/output (interface) card for an MPC4 or MPC4SIL card – supports 4 dynamic channels and 2 tachometer channels.
Differential signal input with sensor power supply output per dynamic channel and per tachometer channel.
Differential buffered (raw) transducer output per dynamic channel.
DC output configurable as current-based signal (4 to 20 mA) or voltage-based signal (0 to 10 V) per dynamic channel.
4 configurable relays with two contacts available per relay, and alarm reset (AR), danger bypass (DB) and trip multiply (TM) control inputs.
