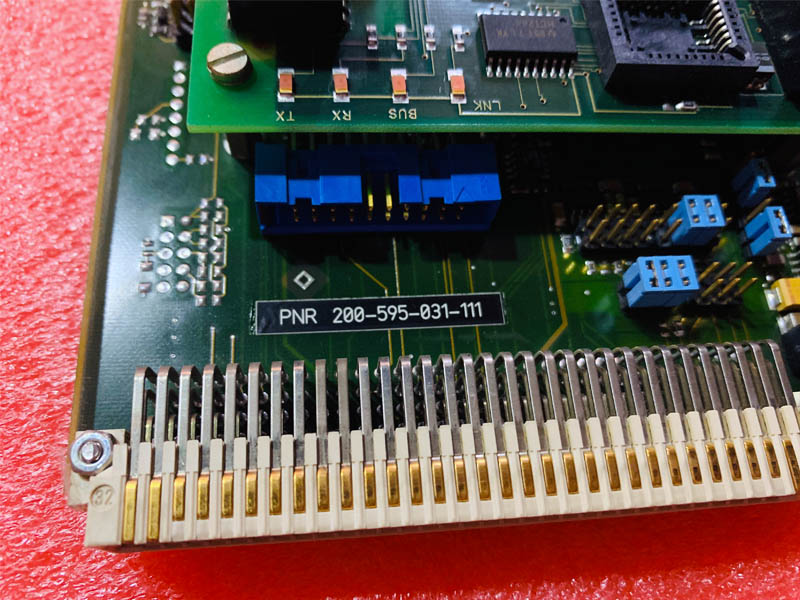

200-595-031-111 CPUM CPU Card
Description:
CPUM CPU card is a rack controller that acts as a system controller.
CPUM/IOCN rack controller pair with support for Modbus RTU/TCP or PROFINET, and a front-panel display “One-Shot” configuration management of protection cards (MPC4 and AMC8) in the rack using an Ethernet or RS-232 serial connection to a computer running the software.
The modular, highly versatile design of the CPUM means that all the rack configuration, display and communications interfacing can be performed from a single card in a “networked” rack. The CPUM card acts as a “rack controller” and allows an Ethernet link to be established between the rack and a computer running one of the software packages (MPS1 or MPS2).

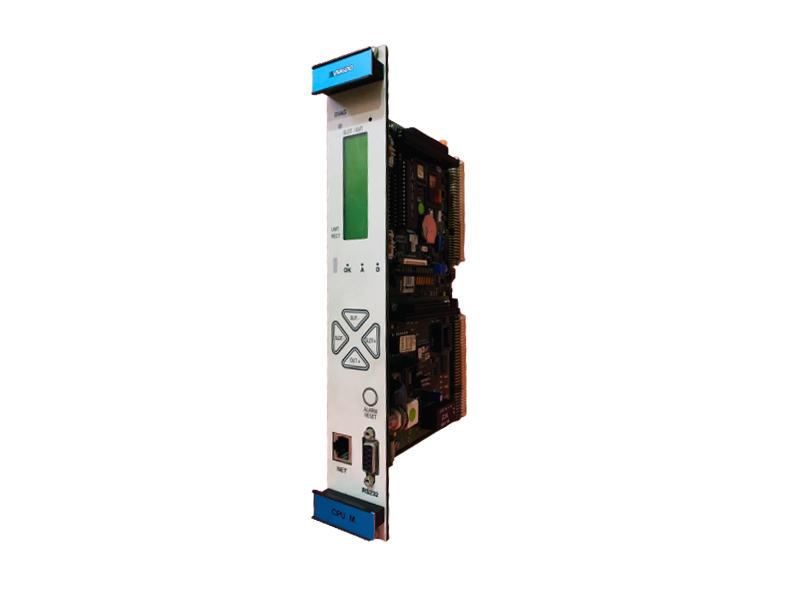

The CPUM front panel features an LCD display that shows information for the CPUM itself and for protection cards. The SLOT and OUT (output) keys on the CPUM front panel are used to select which signal to display.

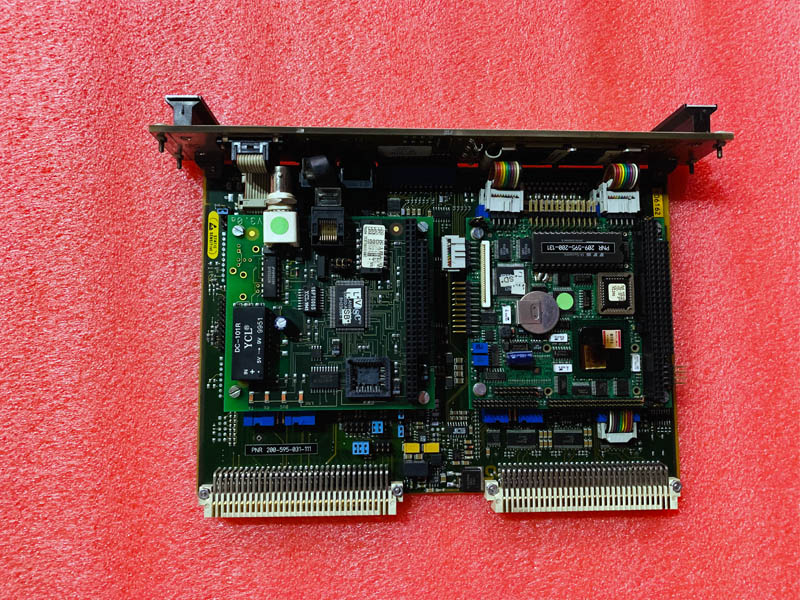

The CPUM card consists of a carrier board with two PC/104 type slots that can accept different PC/104 modules: a CPU module and an optional serial communications module.
All CPUM cards are fitted with a CPU module that supports two Ethernet connections and two serial connections. That is, both the Ethernet redundant and serial redundant versions of the card.
