GE IS420UCSCH1B UCSC CONTROLLER, QUAD CORE, 1.2GHZ, 4GB
GE IS420UCSCH1B UCSC CONTROLLER, QUAD CORE, 1.2GHZ, 4GB
Brand:
General Electric PLCItem NO.:
IS420UCSCH1BOrder(MOQ):
1 PCPayment:
T/TProduct Origin:
USAShipping Port:
XiamenLead Time:
In stockWarranty:

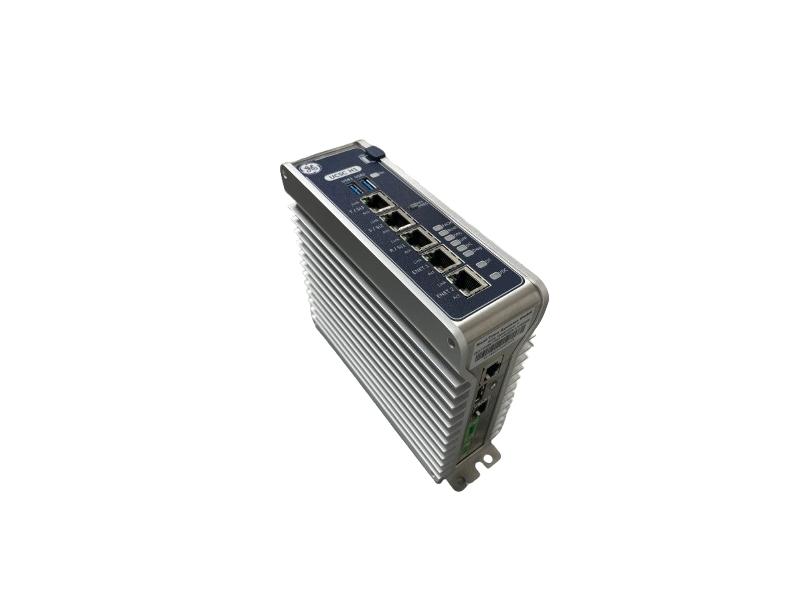

1 yearIS420UCSCH1B is GE Mark* Vie UCSCH1x Controller. IS420UCSCH1B quad core controller uses real-time hypervisor technology and QNX® Neutrino, a real-time, multi-tasking operating system (OS), to run the following virtual machines. IS420UCSCH1B controller is designed for high-speed, high-reliability industrial applications.
IS420UCSCH1B is loaded with software specific to its application. As a turbine or balance of plant (BoP) controller, it runs the Mark VIe firmware and applications and utilizes IONet interfaces. IONet is a private special-purpose Ethernet that only supports Mark controls I/O packs and controllers. IEEE 1588 protocol is used through the IONet interfaces to synchronize the clock of the I/O modules and controllers to within +100 microseconds. External data is transferred to and from the control system database in the controller over the IONet interfaces. This includes process inputs/outputs to the I/O modules. Unlike traditional controllers where I/O is on a backplane, the UCSC controller does not host any application I/O. In a redundant set, all I/O networks are attached to each controller, providing them with all input data. This hardware and software architecture guarantees that no single point of application input is lost if a controller is powered down for maintenance or repair.
