Home / PLC SYSTEM / General Electric / GE IS230SNSCH2A Serial Communications Assy IS220PSCAH1B with IS200SSCAH2A
IS230SNSCH2A

GE IS230SNSCH2A Serial Communications Assy IS220PSCAH1B with IS200SSCAH2A

GE IS230SNSCH2A Serial Communications Assy IS220PSCAH1B with IS200SSCAH2A

  • Brand:

    General Electric PLC

  • Item NO.:

    IS230SNSCH2A

  • Order(MOQ):

    1 PC

  • Payment:

    T/T

  • Market Price:

    999

  • Price:

    $99

  • Product Origin:

    USA

  • Shipping Port:

    Xiamen

  • Lead Time：

    In stock

  • Warranty:

    1 year
Request A Quote
Product Detail

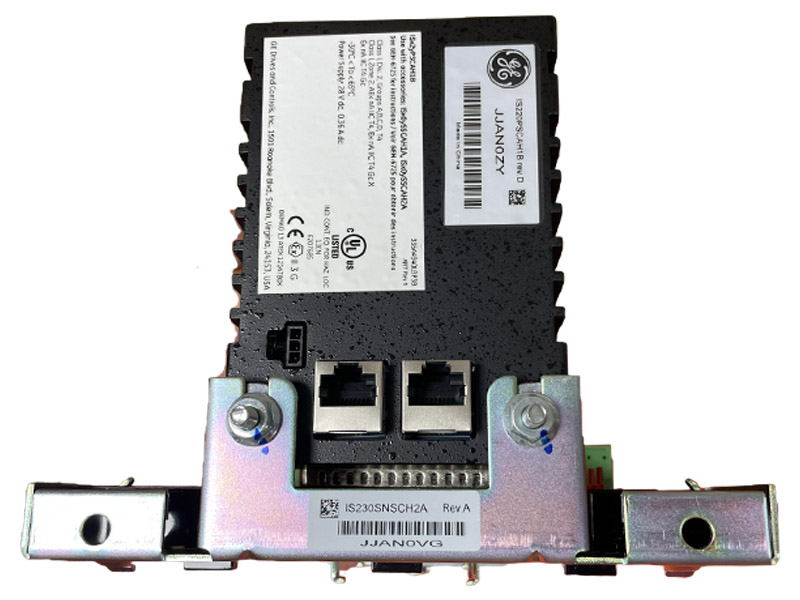

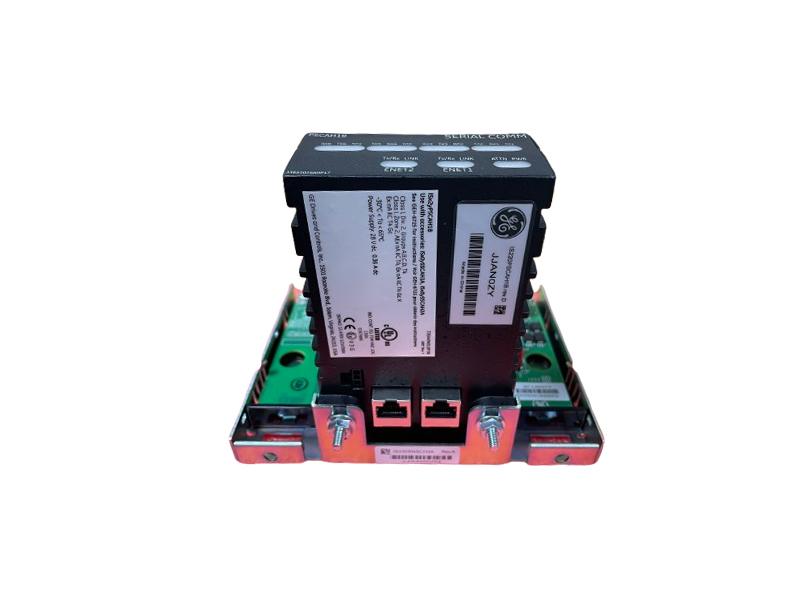

GE IS230SNSCH2A Serial Communications Assy
Description:
IS230SNSCH2A is GE MKVIe series Serial Communications Assy.
IS230SNSCH2A package including :
1x IS220PSCAH1B communications module
1x IS200SSCAH2A communications terminal board

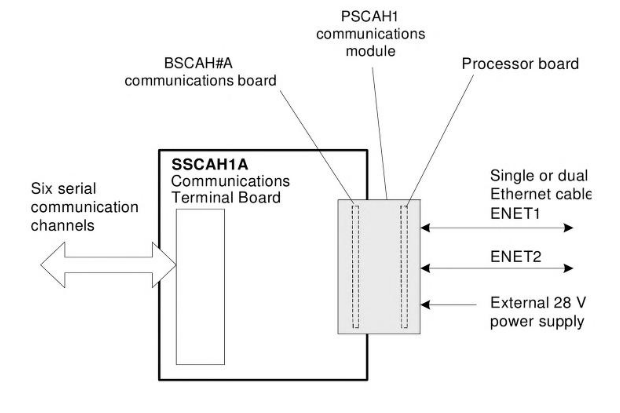

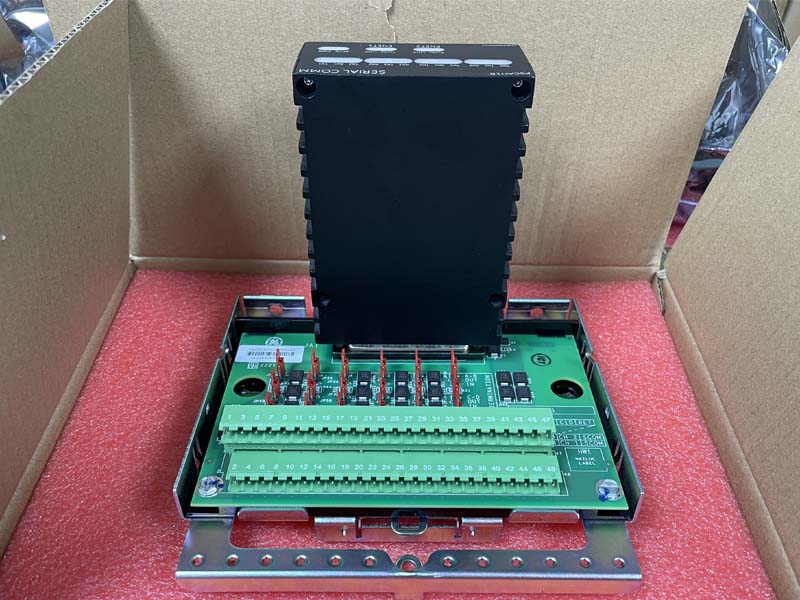

IS220PSCAH1B is mounted directly to the IS200SSCAH2A terminal board, which has a single DC-62 pin connector that receives the IS220PSCAH1B module.

IS220PSCAH1B provides the electrical interface between one or two I/O Ethernet networks and a serial communications terminal board. The I/O pack contains a BPPx processor board common to all Mark* VIe distributed I/O packs and a serial communications board. The communications board contains six serial transceiver channels, each of which can be individually configured to comply with RS-232, RS-422, or RS-485 half-duplex standards.

Input to the I/O pack is through dual RJ-45 Ethernet connectors and a 3-pin power input. Output is through a DC-62 pin connector that connects directly with the associated terminal board connector. One of the Ethernet ports can be used to support Ethernet Modbus communication on Simplex networks. Visual diagnostics are provided through indicator LEDs.

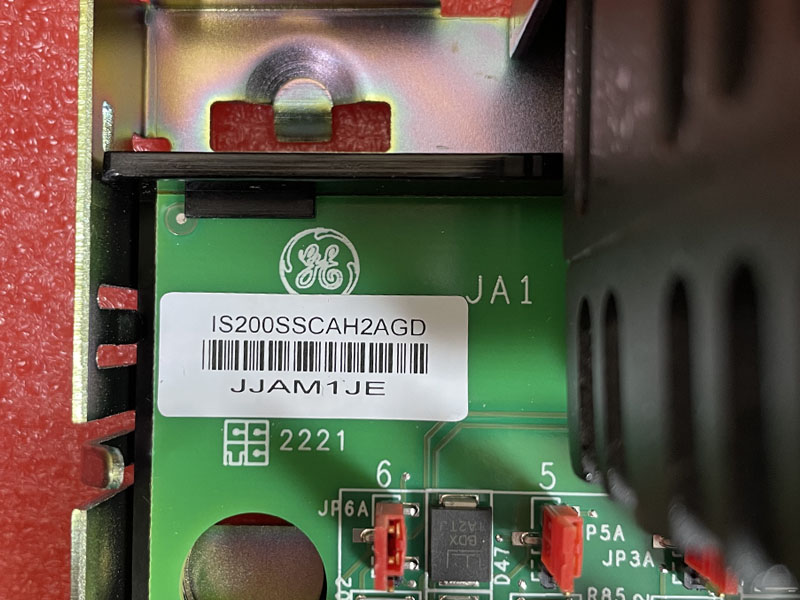

IS200SSCAH2A is a compact serial communication terminal board that provides up to six communication channels. Each channel may be configured for RS-232C, RS-485, or RS-422 signaling. The I/O pack plugs into the DC-62 pin connector to communicate with the Mark VIe controller over Ethernet.

FAQ:
What's the difference between IS220PSCAH1B and IS220PSCAH1A?
IS220PSCAH1A contains a BPPB processor board.
IS220PSCAH1B contains a functionally compatible BPPC that is supported in ControlST* software suite V04.07 and later.

What’s the warranty period of IS230SNSCH2A?
We supply 1 year warranty.

IS230SNSCH2A

IS200SSCAH2A

IS220PSCAH1B
