GE IS230TNRLH1B LAY OUT DIN RAIL MODULE IS220PDOAH1B with IS200TRLYH1B
GE IS230TNRLH1B LAY OUT DIN RAIL MODULE IS220PDOAH1B with IS200TRLYH1B
Brand:
General Electric PLCItem NO.:
IS230TNRLH1BOrder(MOQ):
1 PCPayment:
T/TMarket Price:
999Price:
$99Product Origin:
USAShipping Port:
XiamenLead Time:
In stockWarranty:
1 year
GE IS230TNRLH1B LAY OUT DIN RAIL MODULE IS220PDOAH1B with IS200TRLYH1B
Description:

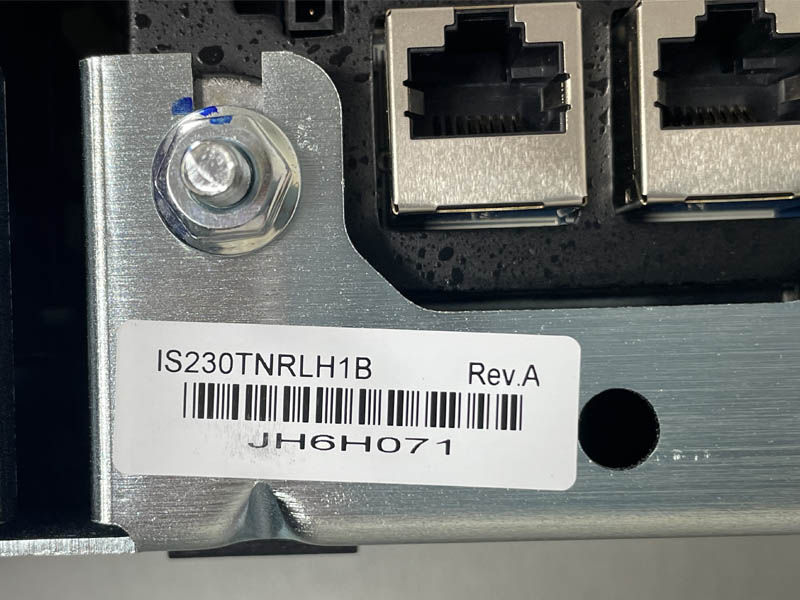

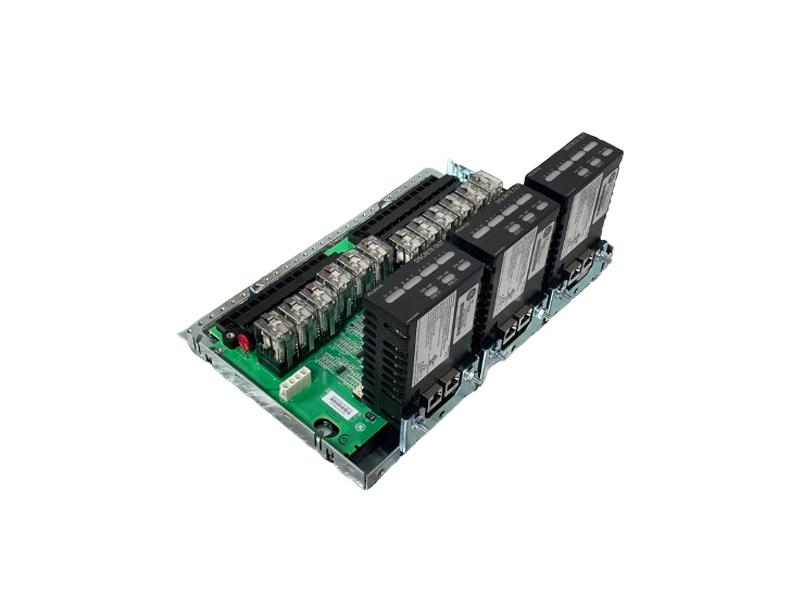

IS230TNRLH1B is GE MKVIe series LAY OUT DIN RAIL MODULE Assy.

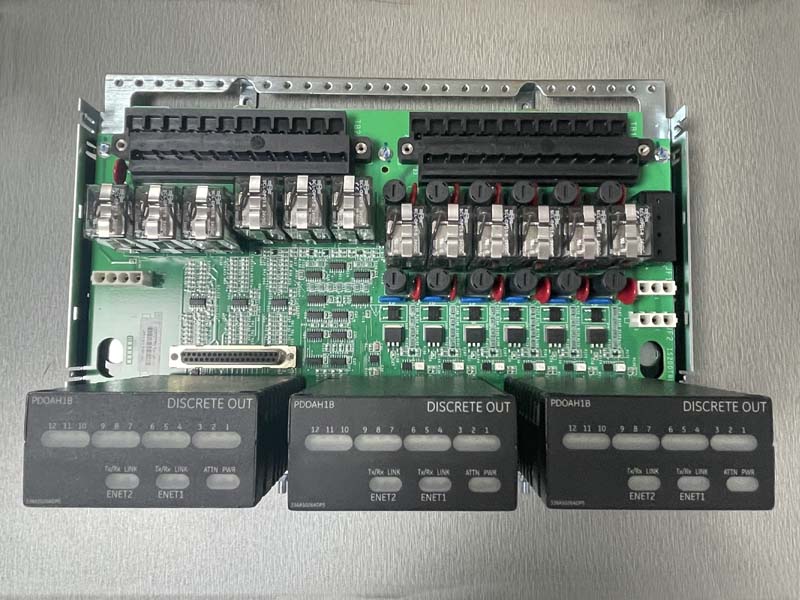

IS230TNRLH1B package including :
3 x IS220PDOAH1B Discrete Output Pack
1x IS200TRLYH1B discrete output terminal board with coil sensing

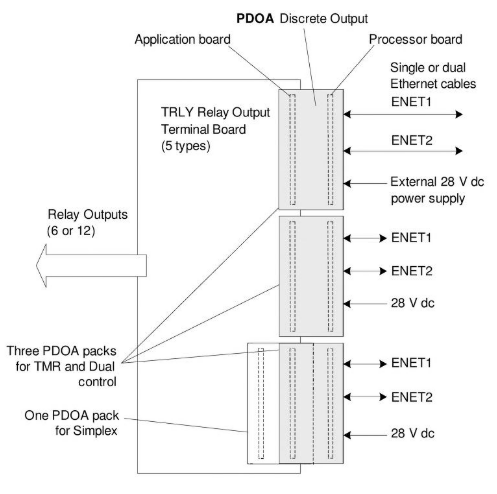

IS220PDOAH1B provides the electrical interface between one or two I/O Ethernet networks and a discrete output terminal board. The I/O pack contains a BPPx processor board and an acquisition board specific to the discrete output function. IS220PDOAH1B is capable of controlling up to 12 relays and accepts terminal board specific feedback. Electromagnetic relays (with types TRLYHIB, C, D, and F terminal boards) and solid-state relays (with type TRLYH#E boards) are available.
Dimensions of IS220PDOAH1B:
8.26 cm high x 4.19 cm wide x 12.1 cm deep

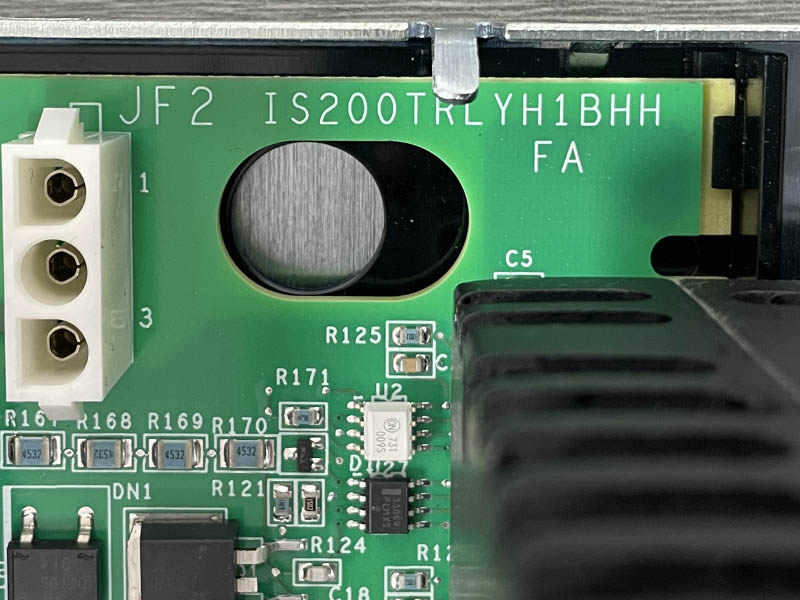

IS200TRLYH1B holds 12 plug-in magnetic relays. The first six relay circuits configured by jumpers for either dry, Form-C contact outputs, or to drive external solenoids. A standard 125 V dc or 115/230 V ac source, or an optional 24 V dc source with individual jumper selectable fuses and on-board suppression, can be provided for field solenoid power. The next five relays (7-11) are unpowered isolated Form-C contacts. Output 12 is an isolated Form-C contact, used for special applications such as ignition transformers.
FAQ:
What's the difference between IS220PDOAH1B and IS220PDOAH1A?
The PDOAHIA contains a BPPB processor board.
The PDOAHIB contains a functionally compatible BPPC that is supported in the ControlST* software suite V04.04 and later.
IS220PDOAH1B ambient rating is rated from -40 to 70°C (-40 to 158 °F)
IS220PDOAH1A ambient rating is rated from -30 to 65°C (-22 to 149 °F)
What's the specifications of IS230TNRLH1B module?
Number of Relay Channels: 12 relays (different types depending on the terminal board)
Relay and Coil Monitoring: 12 relay/coil monitors, 3 fuse status feedbacks muxed to read status from 6 fuses
I/O Pack Response Time: From Ethernet command to output is approximately in 6 ms
SOE Reporting: Each relay may be configured to report operation in the Sequence of Events (SOE) record
