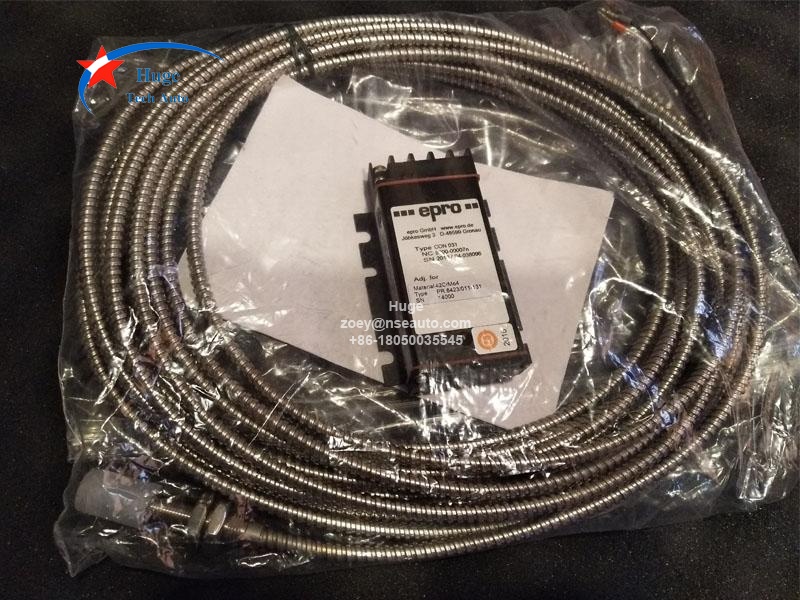

Emerson EPRO PR6423/016-011-CN 8mm Tip diameter Eddy Current Sensor with armored
Emerson EPRO PR6423/016-011-CN 8mm Tip diameter Eddy Current Sensor with armored
Brand:
EPROItem NO.:
PR6423/016-011-CNOrder(MOQ):
1Payment:
T/TMarket Price:
999Product Origin:
GermanyColor:
Depends on materialShipping Port:
XIAMENLead Time：
IN STOCKWarranty:
1 Year
EPRO PR6423/00E-030 8mm Tip diameter Eddy Current Sensor
Description:
PR6423/00B-030 is M10x1 case thread without armored, 141mm sleeve, 8m cable adapter plug and open cable end. It is designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key.
PR6423/xxx-xxx(Standard) dimension as below:
A. Case thread, M10x1 or 3/8-24UNF
B. Case Length
C. Wrench flats, SW 8 mm for M10 threads, WS 5/16 in for 3/8-24 UNF threads
D. SW 17 mm for M10 threads, SW 9-16 in for 3/8-24UNF threads
E. Standard cable diameter 2.8 mm (0.110 in), minimum bending radius
25 mm (0.984 in)
F. Armored cable diameter 6 mm (0.236 in), minimum bending radius
35 mm (1.378 in)
G. Optional Adapter Plug after 1m cable from Sensor
H. Cable Length (Tolerances 0... +10%)
I. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end
Ordering Information:
|
Tip Diameter |
Case Threads |
Armored Cable |
Model No. |
|
8mm
|
M10x1
|
No |
PR6423/00 |
|
Yes |
PR6423/01 |
||
|
PR6423/03* |
|||
|
3/8”-24 UNF
|
No |
PR6423/10 |
|
|
Yes |
PR6423/11 |
||
|
PR6423/13* |
*Armored cable option for Reverse Mount, if Adapter Plug is chosen.
|
Model No. |
Case Thread X |
Adapter Plug X |
Cable Length X |
Cable End X |
|
PR6423/00 PR6423/01 PR6423/10 PR6423/11 |
0 25mm 1 35mm 2 45mm 3 55mm 4 65mm 5 75mm 6 85mm 7 95mm 8 105mm 9 115mm C 125mm I 135mm K 145mm E 155mm M 165mm J 175mm L 185mm H 195mm R Reverse Mount |
0 With 1 Without |
0 4.0m 1 5.0m 2 6.0m 3 8.0m F 9.0m 4 10.0m |
0 Lemo* 1 Open |
