Emerson EPRO PR6423/002-030 8mm Tip Eddy Current Sensor withour Armored
Emerson EPRO PR6423/002-030 8mm Tip Eddy Current Sensor withour Armored
Brand:
EPROItem NO.:
PR6423/002-030Order(MOQ):
1Payment:
T/TMarket Price:
999Price Range:
1 - 5Product Origin:
GermanyShipping Port:
XIAMENLead Time：
IN STOCKWarranty:
1 Year

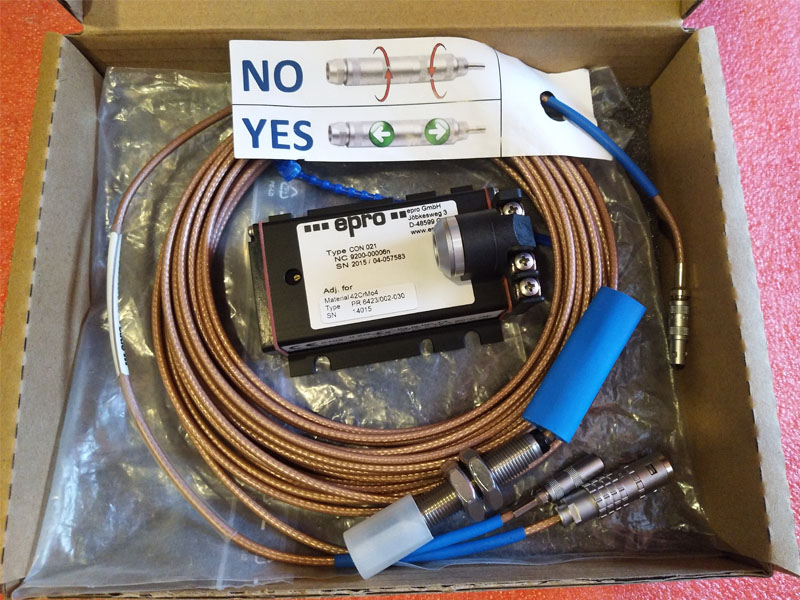

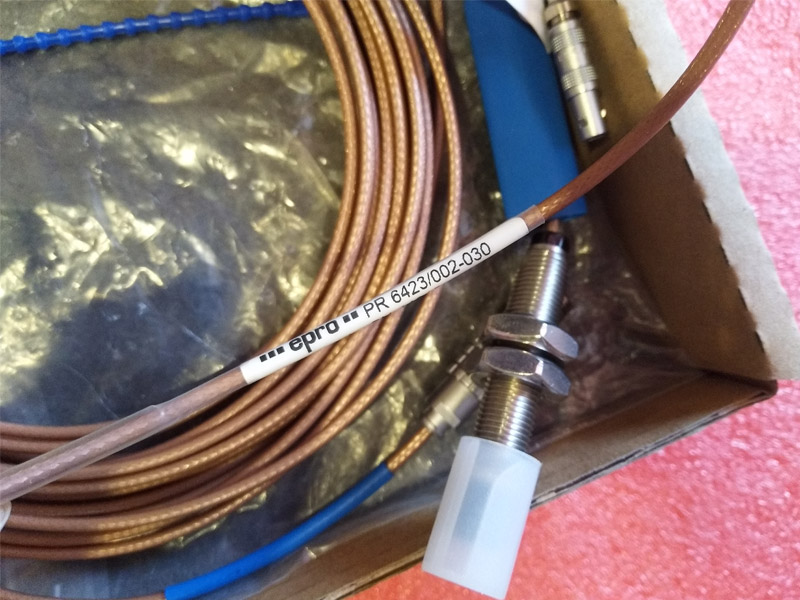

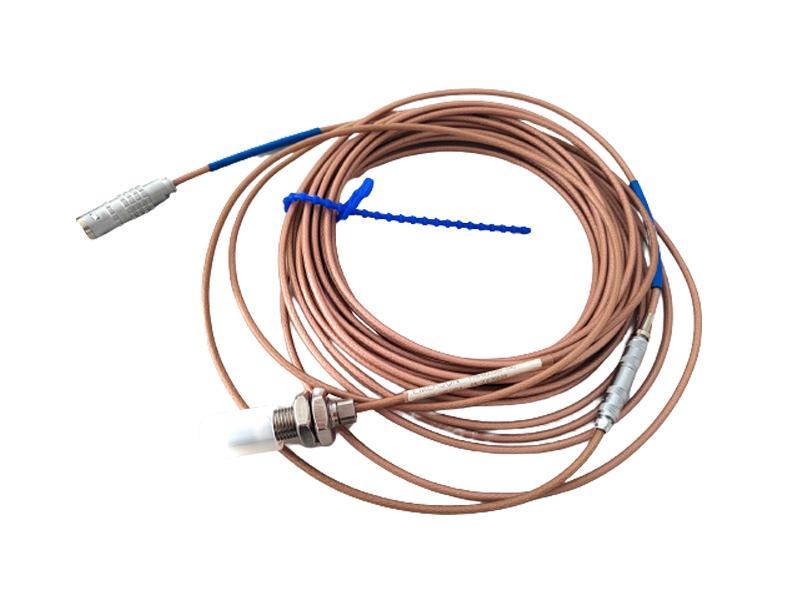

EPRO PR6423/002-030 8mm Tip diameter Eddy Current Sensor without Armored
Description:
PR6423/002-030 is designed for critical turbomachinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed. It is M10x1 45 mm case threads without armored. The cable length is 8 meters without adapter plug, the cable end is Lemo.
PR6423/xxx-xxx(Standard) dimension as below:
A. Case thread, M10x1 or 3/8-24UNF
B. Case Length
C. Wrench flats, SW 8 mm for M10 threads, WS 5/16 in for 3/8-24 UNF threads
D. SW 17 mm for M10 threads, SW 9-16 in for 3/8-24UNF threads
E. Standard cable diameter 2.8 mm (0.110 in), minimum bending radius
25 mm (0.984 in)
F. Armored cable diameter 6 mm (0.236 in), minimum bending radius
35 mm (1.378 in)
G. Optional Adapter Plug after 1m cable from Sensor
H. Cable Length (Tolerances 0... +10%)
I. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end
Ordering Information:
|
Tip Diameter |
Case Threads |
Armored Cable |
Model No. |
|
8mm
|
M10x1
|
No |
PR6423/00 |
|
Yes |
PR6423/01 |
||
|
PR6423/03* |
|||
|
3/8”-24 UNF
|
No |
PR6423/10 |
|
|
Yes |
PR6423/11 |
||
|
PR6423/13* |
|
Model No. |
Case Thread X |
Adapter Plug X |
Cable Length X |
Cable End X |
|
PR6423/00 PR6423/01 PR6423/10 PR6423/11 |
0 25mm 1 35mm 2 45mm 3 55mm 4 65mm 5 75mm 6 85mm 7 95mm 8 105mm 9 115mm C 125mm I 135mm K 145mm E 155mm M 165mm J 175mm L 185mm H 195mm R Reverse Mount |
0 With 1 Without |
0 4.0m 1 5.0m 2 6.0m 3 8.0m F 9.0m 4 10.0m |
0 Lemo* 1 Open |
