Bently Nevada 330930-065-02-00 3300 NSv Extension Cable armored
Description:

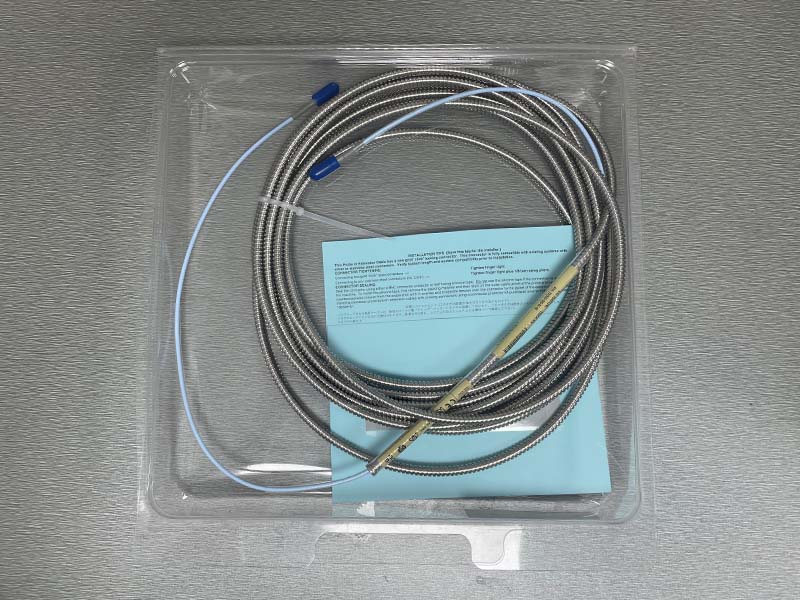

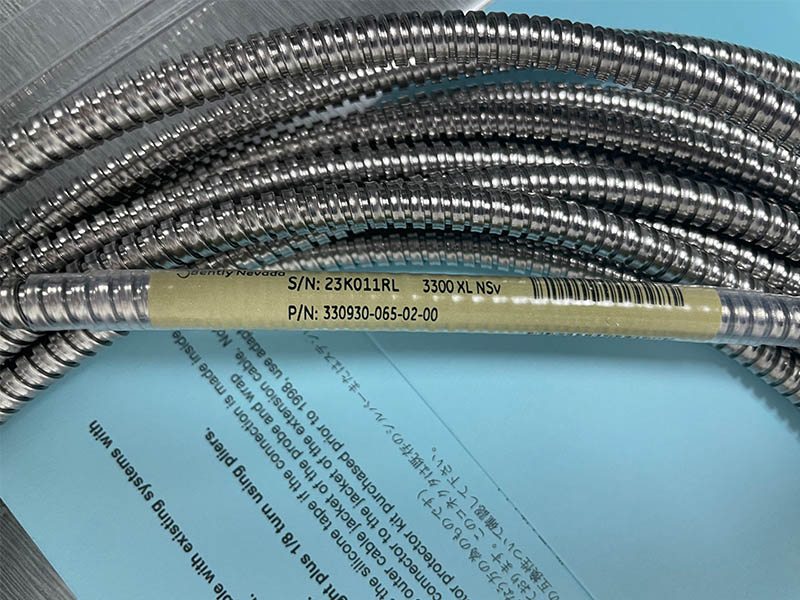

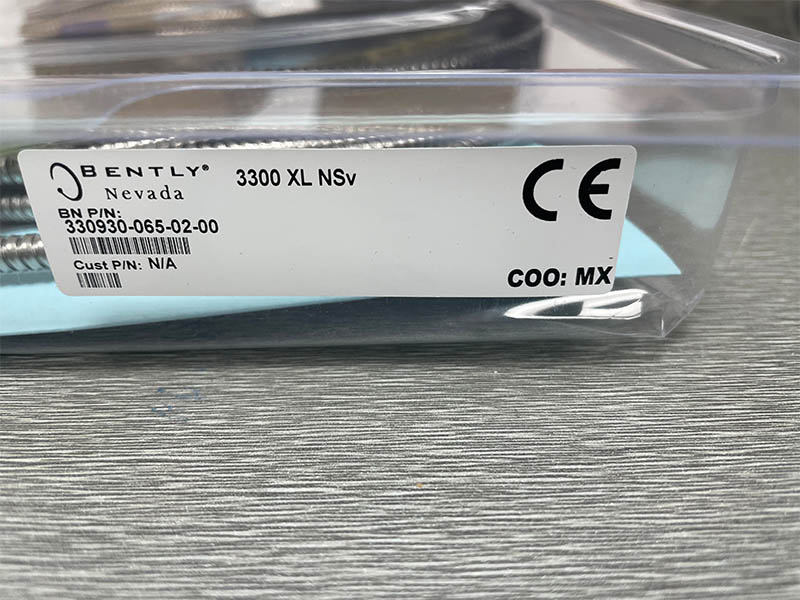

330930-065-02-00 is Bently Nevada 3300 XL NSv Proximity Transducer System Extension Cable. 330930-065-02-00 cable length is 6.5m, With stainless steel armor, without FEP jacket.
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor Sensor
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
· Radial vibration and radial position measurements
· Axial (thrust) position measurements
· Tachometer and zero speed measurements
· Phase reference (Keyphasor signals)
330930-065-02-00 as the extension cable, is mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable.
Ordering Information
330930-AAA-BB-CC
A: Cable Length Option
0 4 0 4.0 metres (13.1 feet)
0 4 5 4.5 metres (14.8 feet)
0 6 0 6.0 metres (19.7 feet)
0 6 5 6.5 metres (21.3 feet)
B: Connector and Cable Option
0 0 Without stainless steel armor
0 1 With stainless steel armor, with FEP jacket
0 2 With stainless steel armor, without FEP jacket
0 3 Without stainless steel armor, with connector protector
0 4 With stainless steel armor, with FEP jacket, with connector protector
0 5 With stainless steel armor, without FEP jacket, with connector protector
0 6 FluidLoc cable without stainless steel armor
0 7 FluidLoc cable with stainless steel armor, with FEP jacket
0 8 FluidLoc cable with stainless steel armor, without FEP jacket
0 9 FluidLoc without stainless steel armor, with connector protector
1 0 FluidLoc cable with stainless steel armor, with FEP jacket, with connector protector
1 1 FluidLoc cable with stainless steel armor, without FEP jacket, with connector protector
C: Agency Approval Option
0 0 Not Required
0 5 Multiple Approvals
