Bently Nevada 9200-06-02-01-00 Two-wire Transducer

Bently Nevada 9200-06-02-01-00 Two-wire Transducer

  • Brand:

    Bently Nevada TSI
  • Item NO.:

    9200-06-02-01-00
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Product Origin:

    USA
  • Shipping Port:

    Xiamen
  • Lead Time:

    In stock
  • Weight:

    300g (10.5 ounces)
  • Warranty:

    1 year
Product Detail
Bently Nevada 9200-06-02-01-00 Two-wire Transducer
Description:
9200-06-02-01-00 is Bently Nevada Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The two-wire systems consist of a transducer and appropriate cable.

The 9200 is a two-wire transducer suitable for continuous monitoring or for periodic measurements in conjunction with test or diagnostic instruments. When ordered with the integral cable option, the 9200 has excellent resistance to corrosive environments without need of additional protection.

The Seismoprobe family of velocity transducers is a two-wire design that uses moving-coil technology. It provides a voltage output directly proportional to the transducer's vibration velocity.

Moving-coil transducers are less sensitive to impact or impulsive excitation than solid-state velocity transducers, which are inherently accelerometers with embedded integration electronics.

Moving-coil transducers are less sensitive to impact or impulsive excitation and can represent a good choice for certain applications. Because they don’t require external power, they are convenient for portable measurement applications.

Ordering Information
9200-AA-BB-CC-DD
A:  Transducer Mounting Angle/Minimum Operating Frequency Option
01   0 ±2.5, 4.5 Hz (270 cpm)
02   45 ±2.5, 4.5 Hz (270 cpm)
03   90 ±2.5, 4.5 Hz (270 cpm)
06   0 ±100, 10 Hz (600 cpm)
09   0 ±180, 15 Hz (900 cpm)
B: Connector/Cable Option

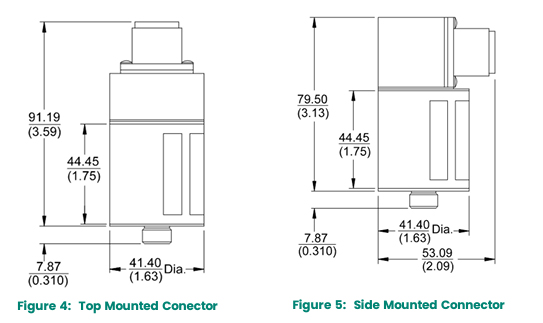

01   Top Mount (no cable)
02   Side Mount (no cable)
05   Terminal block top mount (no cable)
10   10 feet (3.0 meter)
15   15 feet (4.6 meter)
22   22 feet (6.7 meter)
32   32 feet (9.8 meter)
50   50 feet (15.2 meter)
C: Mounting Base Option
01 Circular; 1/4-20 UNC stud
02 Circular; 1/4-28 UNF stud
03 Rectangular flange
04 Circular; with three 8-32 threaded studs on a 44 mm (1.75 in) diameter bolt circle
05 No base; 1/2-20 UNF-3A stud
06 Isolated circular 1/4-20 UNC stud
07 Isolated circular 1/4-28 UNF stud
08 Isolated rectangular flange
09 Isolated circular 5/8-18 UNF stud
10 Circular; M10X1 stud
11 Isolated circular M10X1 12 Isolated circular 1/2-20 UNF-2A
D: Agency Approval Option
00 No Approvals
01 CSA
04 ATEX/IECEx
