Bently Nevada 330902-00-95-05-02-00 3300 NSv Proximity Probes
Description:

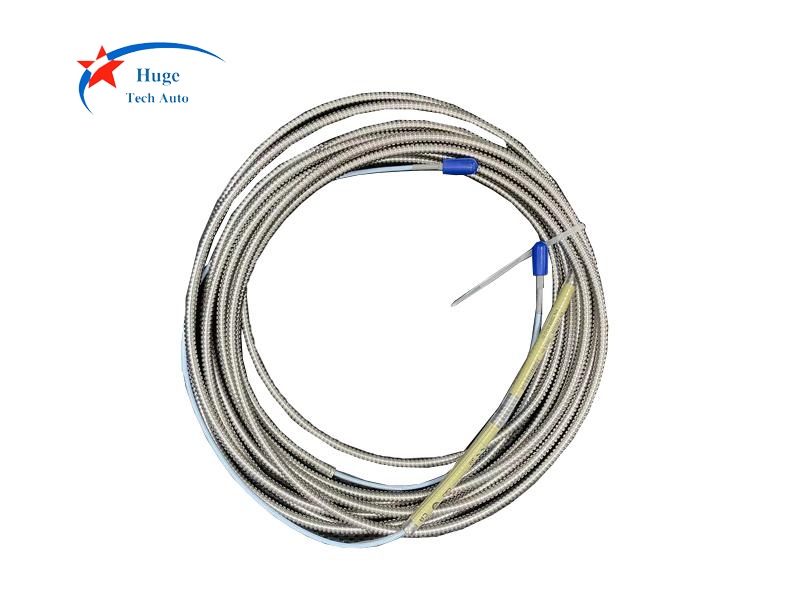

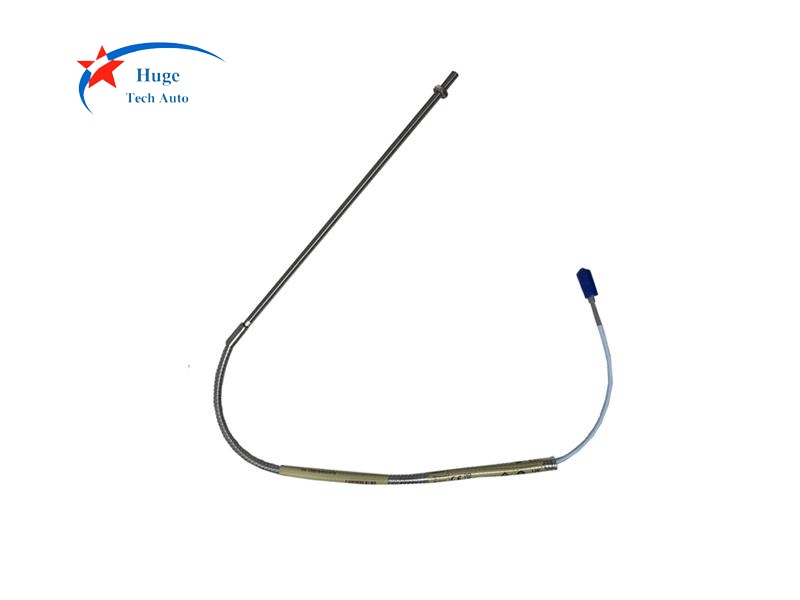

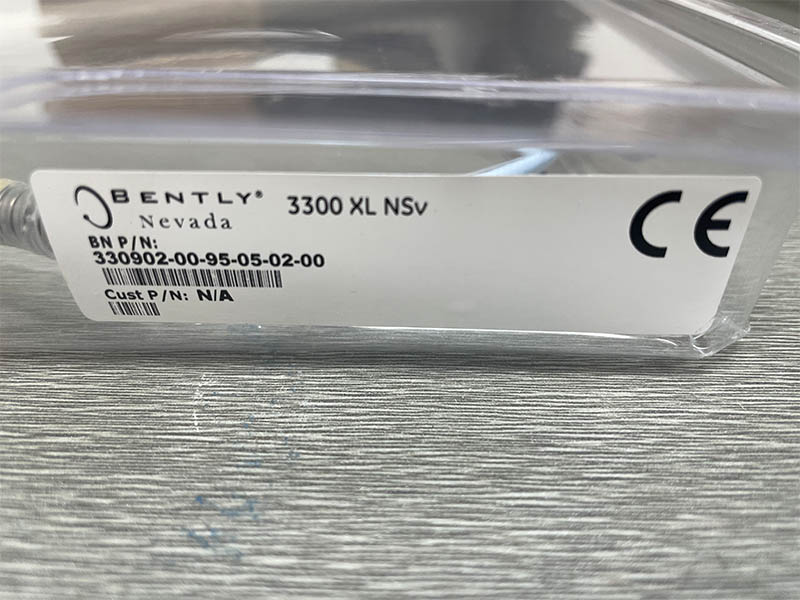

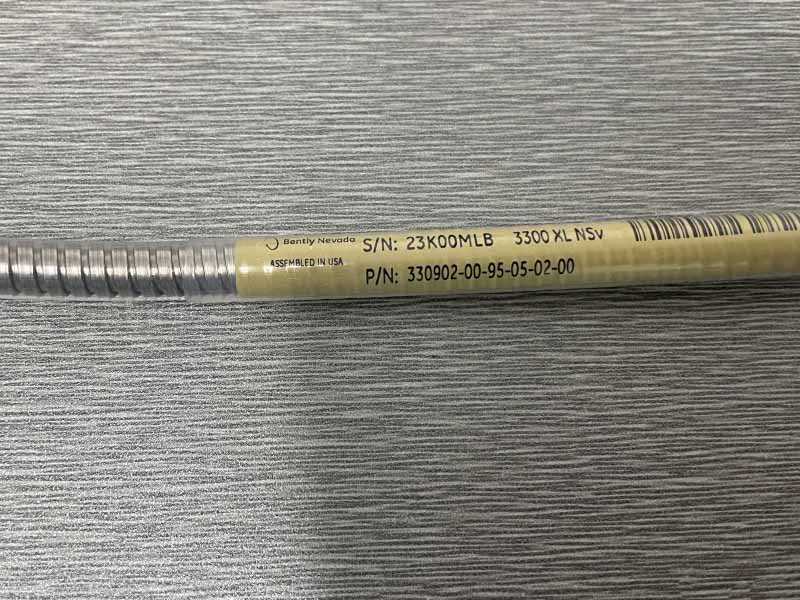

330902-00-95-05-02-00 is Bently Nevada 3300 XL NSv Proximity Transducer System Proximity Probes. 330902-00-95-05-02-00 cable length is 0.5m, 1/4-28 UNF thread, with armor.
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor Sensor

The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
· Radial vibration and radial position measurements
· Axial (thrust) position measurements
· Tachometer and zero speed measurements
· Phase reference (Keyphasor signals)

330902-00-95-05-02-00 as the Proximity Probes, is mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable.  The NSv probe has increased chemical resistance compared to the 3300 RAM probe, which allows its use in many process compressor applications. The side-view characteristics of the 3300 NSv probe are also superior to those of the 3000-series 190 probe when gapping the 3300 NSv probe at the same distance from the probe target. The 3300 NSv probe comes in varying probe case configurations, including armored and unarmored ¼ -28, 3⁄8 -24, M8 X 1 and M10 X 1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8 -24 or M10 X 1 threads. All components of the transducer system have gold-plated brass ClickLocconnectors. ClickLoc connectors lock into place and prevent the connection from loosening. The patented TipLocmolding method provides a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLocdesign provides 220 N (50 lb) of pull strength and securely attaches the probe cable to the probe tip. Connector protectors are recommended for use on the probe-to-extension cable connection, as well as on the cable-to-Proximitor Sensor connection. Connector protectors prevent most liquids from entering into the ClickLoc connectors and adversely affecting the electrical signal.

Ordering Information
330902-AA-BB-CC-DD-EE
A: Unthreaded Length Option
B: Overall Case Length Option
C: Total Length Option
0 5  0.5 metre (20 in)
1 0  1.0 metre (39 in)
5 0  5.0 metres (16.4 feet)
7 0  7.0 metres (23.0 feet)
D: Connector and Cable-Type Option
0 1  Miniature coaxial ClickLoc connector with connector protector, standard cable
0 2  Miniature coaxial ClickLoc connector, standard cable
1 1  Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
1 2  Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
0 0  Not required
0 5  Multiple Approvals
