172103-01 Bently Nevada 3500/65 RTD/Isolated Tip TC I/O Module

Bently Nevada 3500/65 172103-01 RTD/Isolated Tip TC I/O Module, Internal Terminations

Brand:
Bently Nevada TSI
Item NO.:
3500/65 172103-01
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
USA
Shipping Port:
Xiamen
Lead Time：
In stock
Weight：
0.45kg
Warranty:
1 year

Product Detail

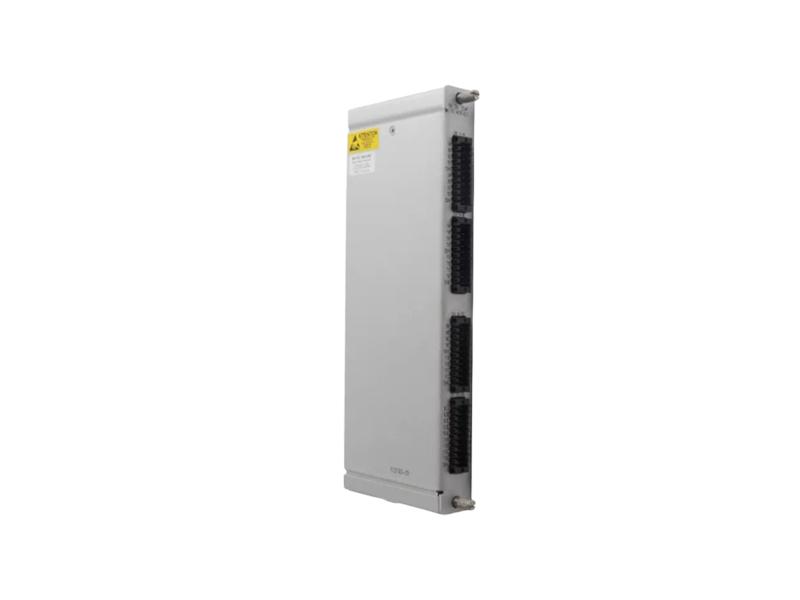

Bently Nevada 3500/65 172103-01 RTD/Isolated Tip TC I/O Module
Description:
172103-01 is Bently Nevada 3500/65 RTD/Isolated Tip TC I/O Module with Internal Terminations.
monitor provides 16 channels of temperature monitoring and accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs.
3500/65 module requires a corresponding I/O module. Main modules connect to the backplane inside the rack, and I/O modules connect with the other side of the backplane, behind their associated main modules. For bulkhead-mounted racks, only, each I/O module connects to the face of the backplane above its associated main module. 172103-01 is installed behind 3500/65 main card 145988-02. It requires 1 full-height rear slot.

Ordering Information:
3500/65-AA-BB
A: I/O Module Type
01 RTD/Isolated Tip TC with Internal Terminations
02 RTD/Isolated Tip TC with External Terminations
B: Agency Approval Option
00 None
01 CSA/NRTL/C
02 CSA/ATEX

Spares:
145988-02 3500/65 Monitor
172103-01 3500/65 RTD/Isolated Tip TC I/O Module, Internal Terminations
172109-01 3500/65 RTD/ Isolated Tip TC I/O Module, External Terminations

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:Paypal, T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
Bently Nevada 172103-01
