330905-00-08-10-02-05 Bently Nevada NSv Proximity Probes

Bently Nevada 330905-00-08-10-02-05 NSv Proximity Probes with 1m cable length

Brand:
Bently Nevada TSI
Item NO.:
330905-00-08-10-02-05
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
USA
Shipping Port:
Xiamen
Lead Time：
In stock
Warranty:
1 year

Product Detail

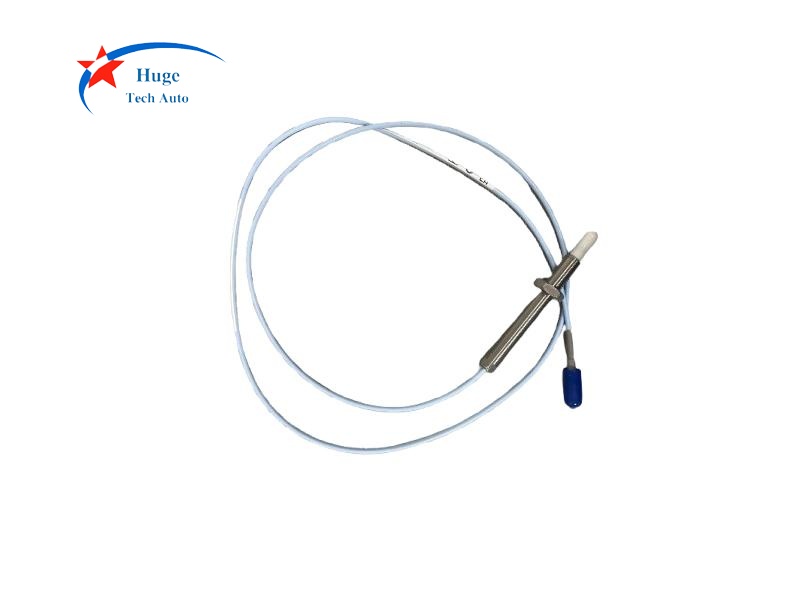

Bently Nevada 330905-00-08-10-02-05 NSv Proximity Probes with 1m cable length
Description:
330905-00-08-10-02-05 belong to Benlty Nevada 3300 XL NSv Proximity Transducer system. It is a M10 x 1 thread, 1 meter cable length, Miniature coaxial ClickLoc connector, standard cable without armor.
The NSv probe has increased chemical resistance compared to the 3300 RAM probe, which allows its use in many process compressor applications. The side-view characteristics of the 3300 NSv probe are also superior to those of the 3000-series 190 probe when gapping the 3300 NSv probe at the same distance from the probe target.
The 3300 NSv probe comes in varying probe case configurations, including armored and unarmored ¼ -28, 3⁄8 -24, M8 X 1 and M10 X 1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8 -24 or M10 X 1 threads. All components of the transducer system have gold-plated brass ClickLocconnectors. ClickLoc connectors lock into place and prevent the connection from loosening. The patented TipLocmolding method provides a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLocdesign provides 220 N (50 lb) of pull strength and securely attaches the probe cable to the probe tip. Connector protectors are recommended for use on the probe-to-extension cable connection, as well as on the cable-to-Proximitor Sensor connection. Connector protectors prevent most liquids from entering into the ClickLoc connectors and adversely affecting the electrical signal.

Ordering Information:
330905-AA-BB-CC-DD-EE
A: Unthreaded Length Option
B: Overall Case Length Option
C: Total Length Option
0 5 0.5 metre (20 in)
1 0 1.0 metre (39 in)
5 0 5.0 metres (16.4 feet)
7 0 7.0 metres (23.0 feet)
D: Connector and Cable-Type Option
0 1 Miniature coaxial ClickLoc connector with connector protector, standard cable
0 2 Miniature coaxial ClickLoc connector, standard cable
1 1 Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
1 2 Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option
0 0 Not required
0 5 Multiple Approvals

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets

FAQ:
1. How can we figure out the cable lenght?
The third group of suffix means the total cable length.

2. What's the warranty?
We supply 1 year warranty.

3. What's the country of origin?
USA

330905-00-08-10-02-05
