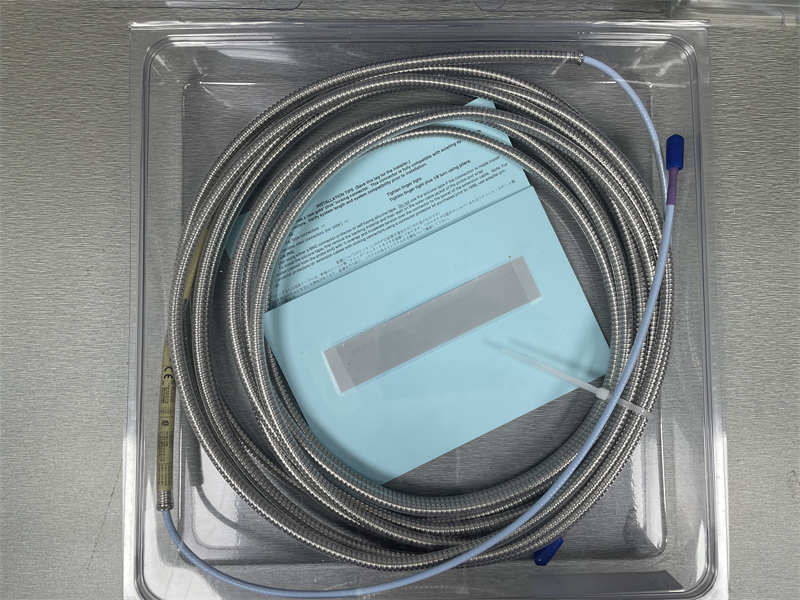

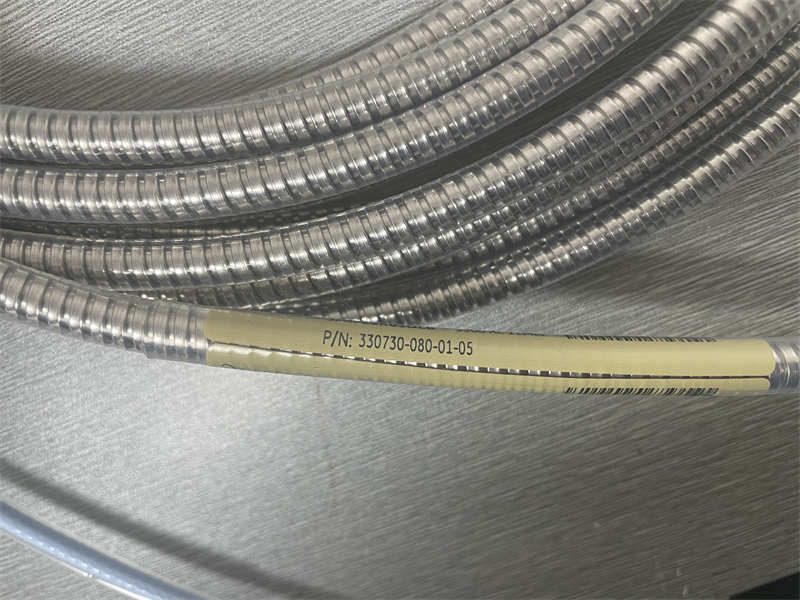

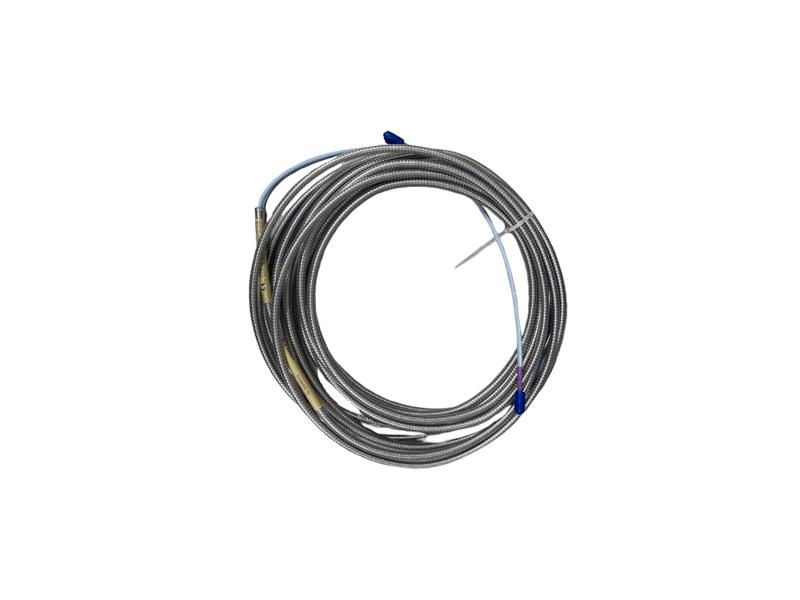

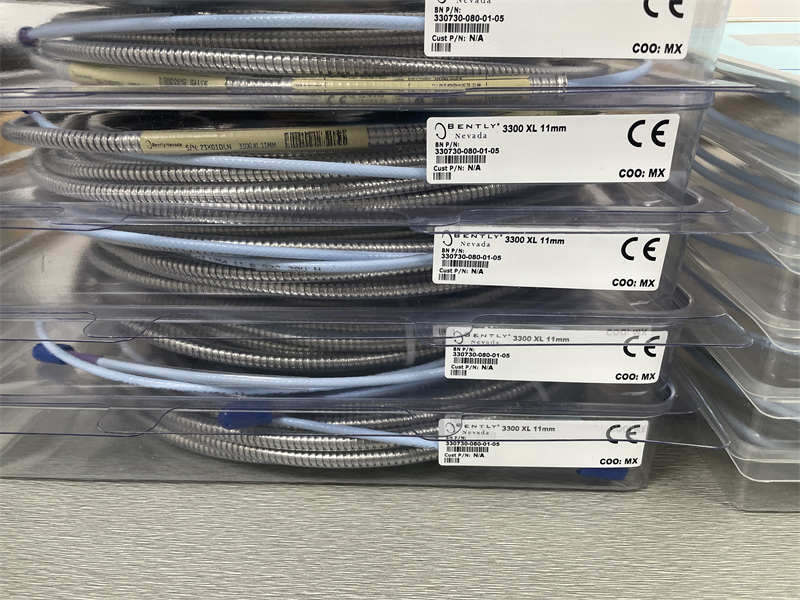

Bently Nevada 330730-080-01-05 3300 XL 11 mm Extension Cable with 8m cable
Description:
330730-080-01-05 is belong to Bently Nevada 3300 XL 11 mm Proximity Transducer System. It is 6 meters cable length, with armor. Extension Cables can also be ordered with a FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior. The connector protector option provides additional protection of the connectors in a humid or moist environment. Connector protectors are recommended for all installations and provide increased environmental protection2. Additionally, the 3300 XL 11 mm probe comes standard with a locknut with pre-drilled safety wire holes.

Ordering Information:
330730-AAA-BB-CC
A: Cable Length Option
040  4.0 meters (13.1 feet)
080  8.0 meters (26.2 feet)
B: Connector and Cable Option
00  Standard cable
01  Armored cable
02  Standard cable with connector protector
03  Armored cable with connector protector
10  FluidLoc cable
11  Armored FluidLoc cable
12  FluidLoc cable with connector protector
13  Armored FluidLoc cable with connector protector
C: Agency Approval Option
00  Not required
05  Multiple Approvals

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets

FAQ:
What is 3300 XL 11 mm Proximity Transducer System consist of?
The 3300 XL 11 mm Proximity Transducer System consists of:
3300 XL 11 mm probe
3300 XL 11 mm extension cable
3300 XL 11 mm Proximitor Sensor

What's the warranty period?
We supply 1 year warranty.
