WOODWARD 9907-167 Digital Control for Steam Turbines
Description:

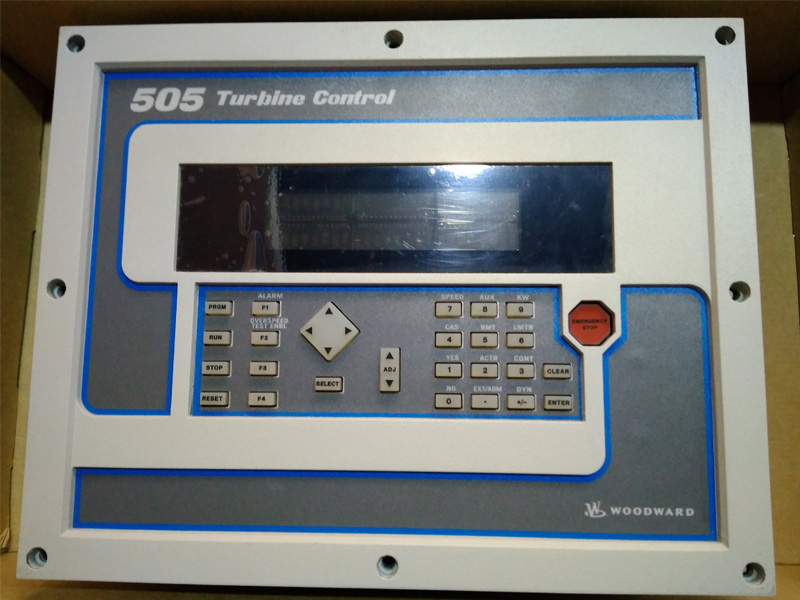

The 505E control is packaged in an industrial hardened enclosure designed to be mounted within a system control panel located in a plant control room or next to the turbine. The control’s front panel serves as both a programming station and operator control panel (OCP). This user-friendly front panel allows engineers to access and program the unit to the specific plant’s requirements, and plant operators to easily start/stop the turbine and enable/disable any control mode. Password security is used to protect all unit program mode settings. The unit’s two-line display allows operators to view actual and setpoint values from the same screen, simplifying turbine operation.

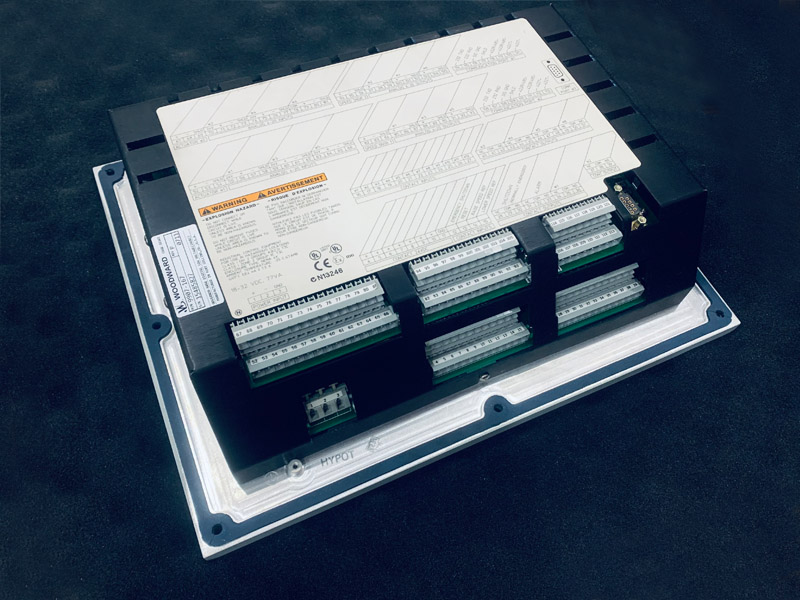

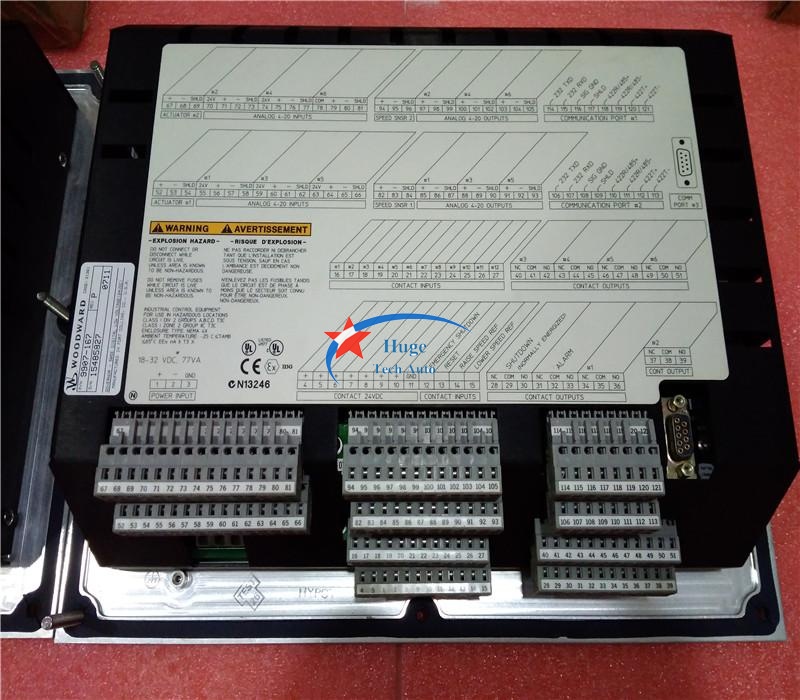

Turbine interface input and output wiring access is located on the controller’s lower back panel. Unpluggable terminal blocks allow for easy system installation, troubleshooting, and replacement.
Related items:
5464-334
5464-346
5464-355
5464-545
5464-643
5464-648
8440-1706(SPM-D11)
9907-014
8200-226
9907-164
9907-167
BENEFITS:
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
