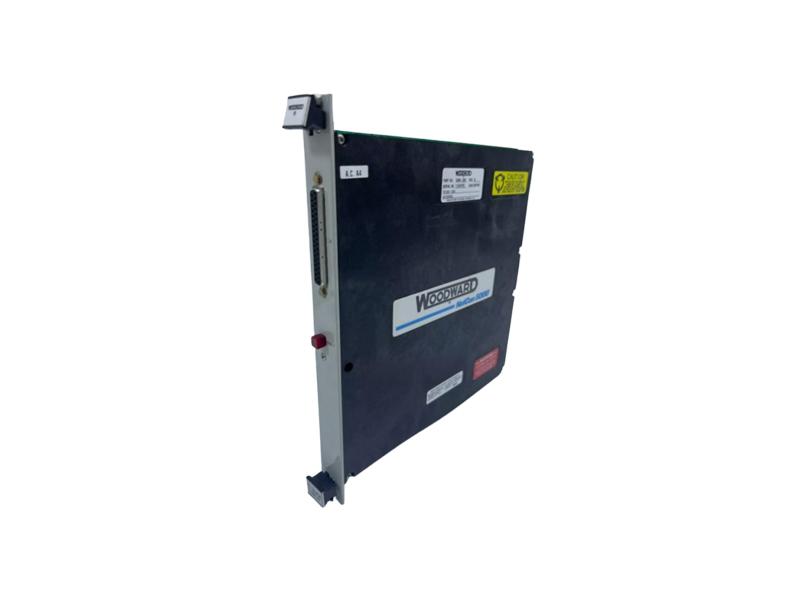

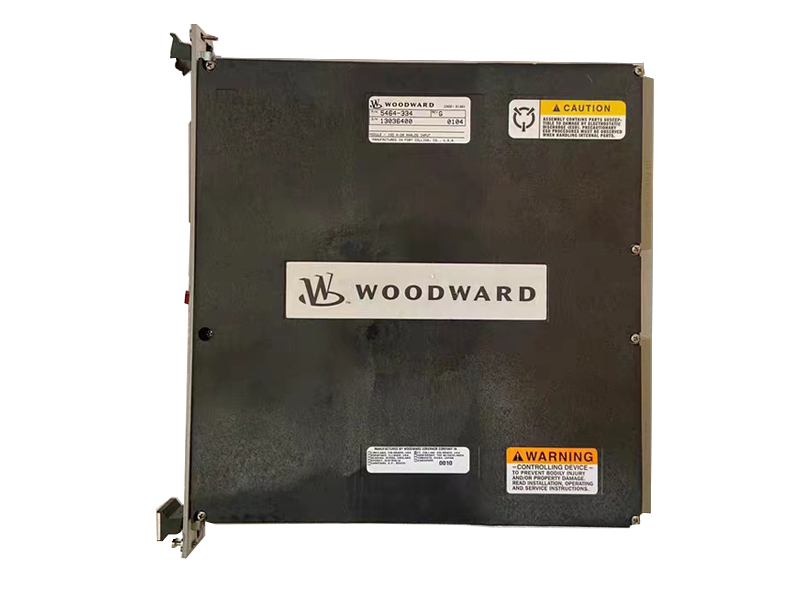

WOODWARD 5464-334 NEW MODULE HOT SELL
Description:
5464-334 is Isolated 4-20 mA Analog Input.The control accepts eight 4–20 mA current inputs, with each of the control's twoATMs accepting four inputs. All analog inputs may be used with two-wireungrounded (loop powered) transducers or isolated (self-powered) transducers.Because inputs are not fully isolated, care must be taken in their application andmaintenance to avoid "ground-loop" type problems. All analog inputs have 200Vdc common mode rejection isolation. If interfacing to a non-isolated devicewhich may have the potential of reaching over 200 Vdc with respect to thecontrol's common, the use of a loop isolator is recommended to break any returncurrent paths, which could result in erroneous readings.All eight analog inputs are programmable. When an analog input is used, thechosen input must be wired to and configured within the control's program tofunction. Refer to Volume 3 of this manual for a complete list of programmableanalog input options.A 24 Vdc power supply is available from the 5009 control to power externaltransducers or other auxiliary devices. Isolation is provided through diodes on thepower and common lines. This 24 Vdc output is capable of providing 24 Vdc with+10% regulation. Power connections are be made through terminals located onsystem ATMs.

5464-333 B ISOL T/C FH 5464-835 NEW Remote XCVR 5464-334 B 4-20mA input 5464-836 NEW Remote XCVR 5464-337 C RTD 100 Ohm 5464-839 C 2Ch Position controller 5464-337 B RTD 100 Ohm 5466-034 Dual overspeed 5464-338 B RTD 200 Ohm 5466-035 Dual overspeed 5464-555 B 2Ch Actuator driver 5466-045 C Pressure input 5464-643 NEW D/I 5466-045 B Pressure input 5464-646 B 2Ch Actuator driver 5466-258 G MODULE - SIMPLEX DISCRETE I/O

BENEFITS:
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:Paypal, T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
