WOODWARD 5466-355

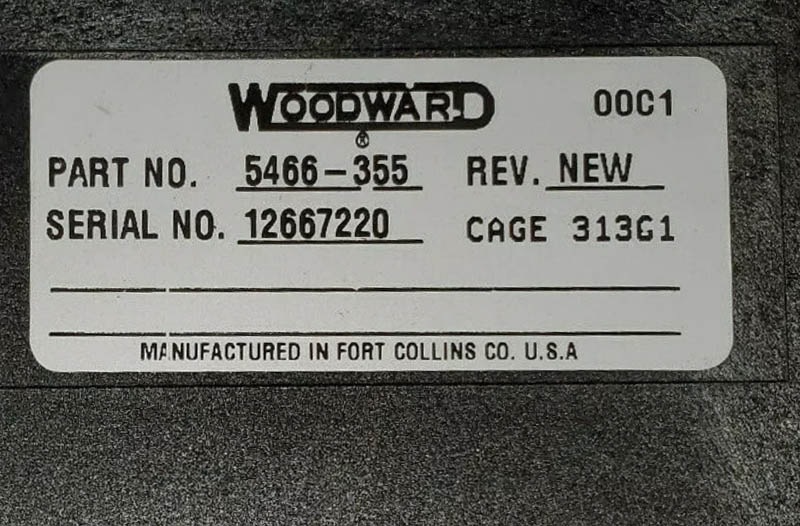

WOODWARD 5466-355 NETCON REMOTE CHASSIS TRANSCEIVER

Brand:
WOODWARD
Item NO.:
WOODWARD 5466-355
Order(MOQ):
1 PC
Payment:
T/T
Market Price:
999
Price Range:
1 - 5
Product Origin:
USA
Color:
Depends on material
Shipping Port:
XIAMEN
Lead Time：
IN STOCK
Warranty:
1 year

Product Detail

Woodwadr 5466-355 NETCON REMOTE CHASSIS TRANSCEIVER
Description:
5466-355 is designed as Woodward NETCON REMOTE CHASSIS TRANSCEIVER.
5466-355 receives and sends control, data, and addressinformation via cable to and from its associated Main XCVR module. Thismodule must be used in each Remote l/O Chassis that is connected to theMain Chassis via copper cables.
5466-355 connects to the VME bus of the chassis. The busreceiver/driver of the Remote Transceiver module interfaces with the VMEbus, exchanging control, data, and address information. The chassis decoderdetermines if this chassis is to be accessed, and if so, it activates thereceiver/driver of this chassis' Remote Transceiver module to receive or sendinformation.Figure 7-11 is a block diagram of the Remote Transceivermodule.

FAQ:
What's the specifications of 5466-355?
Parallel Interface: High-speed, differential line drivers operating at VME transmission rate
Cable Interface: 100 pin metal shell Micro-D connector (2 per module)

How to install 5466-355?
· The Remote XCVR module has no switches or LEDs.
· All expansion chassis except for the last one in the chain should use the Remote XCVR module without termination resistors. This module must be installed in Slot 1.
· The last expansion chassis in the chain should use the Remote XCVR module with termination resistors. This module must be installed in Slot 1.
