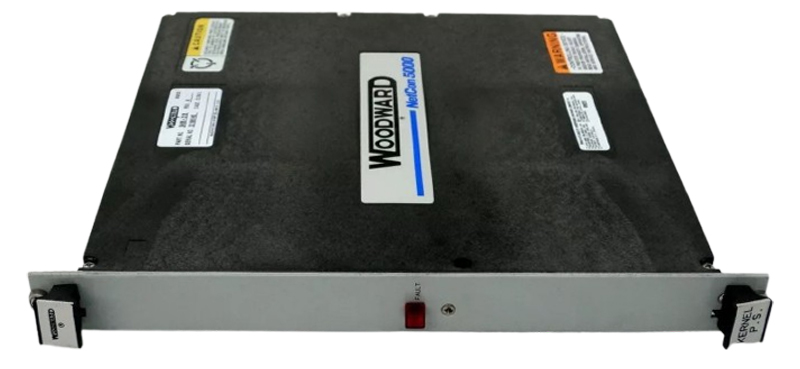

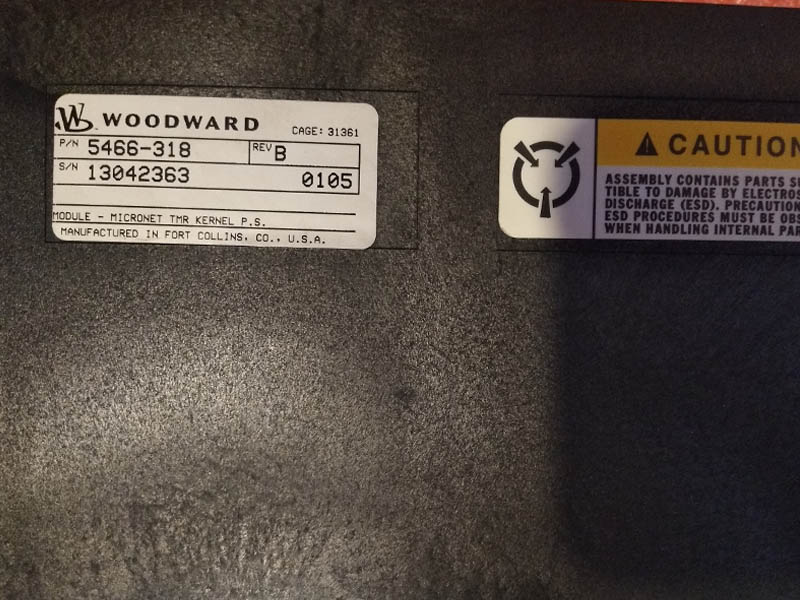

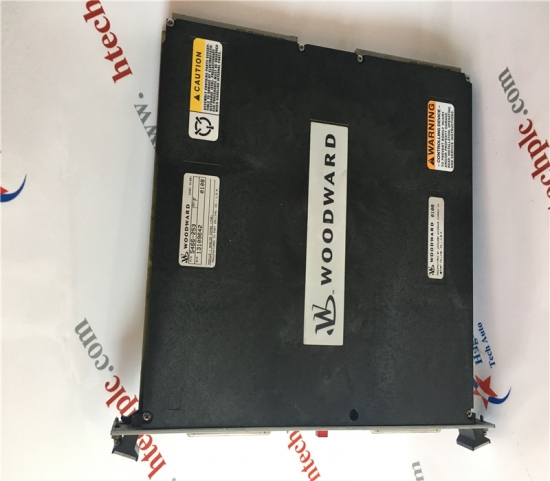

Woodward 5466-318 MICRONET TMR KERNEL Power Supply Module
Description:
5466-318 is designed as Woodward MICRONET TMR KERNEL Power supply module.  5466-318 MUST be used with the TMR040 CPU. 5466-318 has one LED to indicate kernel power supply health.See MicroNet TMR Kernel Power Supply Troubleshooting (Section 4.8.2) for adescription of the LED indication.
The MicroNet TMR control contains three kernel power supply modules. Each kernel section (A, B, and C) will contain one kernel power supply module. The kernel power supply will be located in the first slot of each kernel section. This module receives 24 Vdc from the MicroNet main power supplies and regulates it to 5 Vdc, 10 A for the rest of the kemel section and also creates a 5 Vdc precharge voltage.

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets

FAQ:
What's the specifications of 5466-318?
Input Voltage: 24 Vdc +10%
Output Woltage:  5 Wde +5%
Output Current: 10 A maximum

How to install 5466-318?
The Kernel Power Supply must be installed in the first module slot from the left for each sub-chassis (kernel). The Kernel CPU module is installed in the next module slot directly to the right of each Kernel Power Supply.
