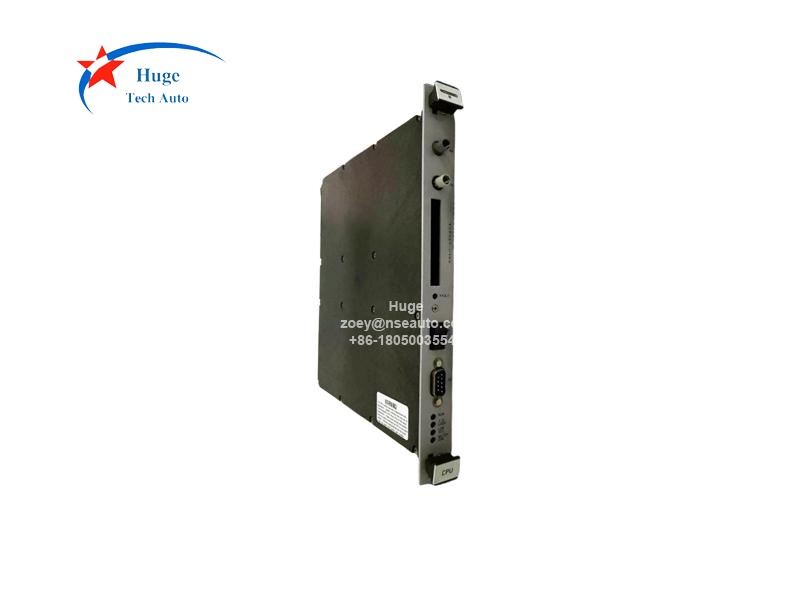

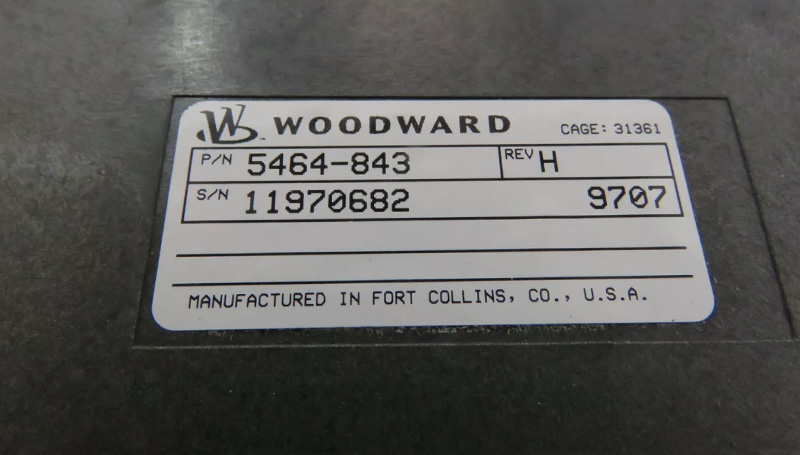

WOODWARD 5464-843 NetCon CPU Module
Description:
5464-843 is belong to Woodward Vertex-ProMotor-Driven Compressor Control system. As a CPU, 5464-843 contains a Motorola MPC5200 processor,128 Mbyte DDR RAM, 64 MB of flash memory, a Real Time clock, and variouscommunication peripherals. These peripherals include (2) general use Ethernetports, (2) Real Time Network ports, (1) serial port, (1) one service port, and (2)CAN ports. This module includes an FPGA to provide VMEbus master/slavecapability as well as other functions necessary for redundant systems5464-843 is belong to Woodward MicroNet™ Control System.
Features:
• Pentium/NT CPU - the newest offering for the MicroNet gives very high performance  for the most complex (size, speed of execution, math intensive, etc.) applications imaginable. The Windows NToperating system is enhanced with areal-time extension that, together with the rate group structure of GAP, provides determinism. This CPU is only available in the Simplex architecture.
-Ethernet Port (10/100 BaseT)
-Two RS232 Serial Ports- Video, Keyboard, Monitor output for local display support
- Program loading over Ethernet TCP/IP network using standard Windows Explorer
• Motorola 68040 CPU - the traditional workhorse of the MicroNet and its predecessor (NetCon) that gives excellent performance for most applications. The proprietary operating system supports both Simplex and Triple Modular Redundant (TMR) architectures. Features include:
- RS232 Serial Port
- Fiber optic port for local display support
- PCMCIA port for program and data file loading

Related items:

5464-334
5464-346
5464-355
5464-545
5464-643
5464-648
8440-1706(SPM-D11)
9907-014
8200-226
9907-164
9907-167

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
