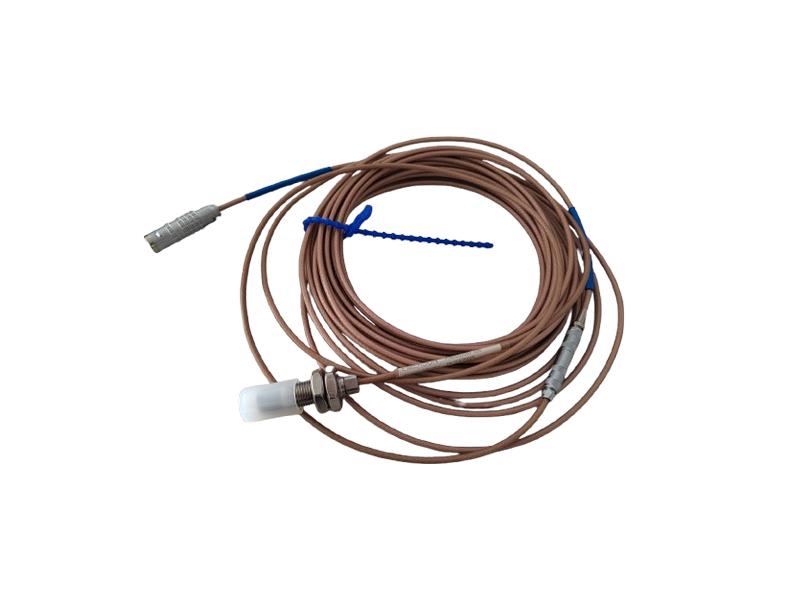

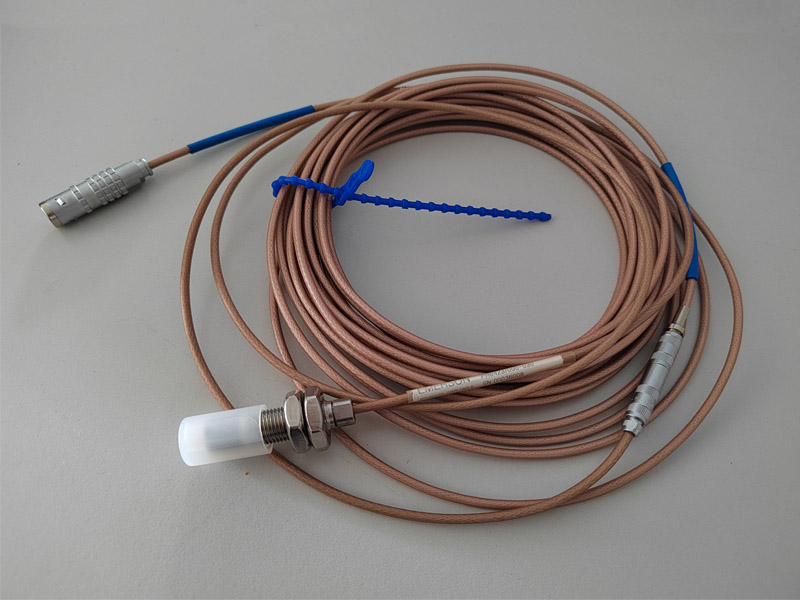

EPRO PR6423/000-030 8mm Tip diameter Eddy Current Sensor
Description:

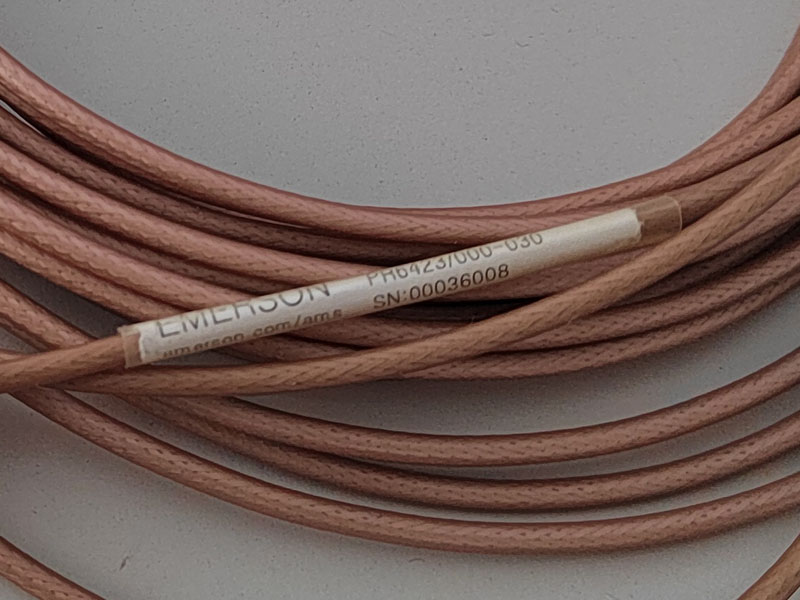

PR6423/000-030 is manufactured by Emerson.PR6423/000-030 is designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors,  gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key. PR6423/000-030 is widely used, it is M10x1 25 mm case threads without armored. The cable length is 8 meters without adapter plug, the cable end is Lemo.

Specifications:
Tip Diameter: 8.0 mm
Measurement range: ±1.0 mm Position, 0 to 500 μm PP Vibration
Frequency Range: 0 to 20 kHz
Sensitivity: 8 V/mm (203.2 mV/mil) ±1.0%
Sensor Body Thread Options: M10x1 or 3/8-24 UNF-2A
Temperature Range: -35 to 180°C (-31 to 250°F)
Agency Rating: CE, CSA, ATEX (see converter spec sheet)

PR6423/xxx-xxx(Standard) dimension as below:
A. Case thread, M10x1 or 3/8-24UNF
B. Case Length
C. Wrench flats, SW 8 mm for M10 threads, WS 5/16 in for 3/8-24 UNF threads
D. SW 17 mm for M10 threads, SW 9-16 in for 3/8-24UNF threads
E. Standard cable diameter 2.8 mm (0.110 in), minimum bending radius
25 mm (0.984 in)
F. Armored cable diameter 6 mm (0.236 in), minimum bending radius
35 mm (1.378 in)
G. Optional Adapter Plug after 1m cable from Sensor
H. Cable Length (Tolerances 0... +10%)
I. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end
