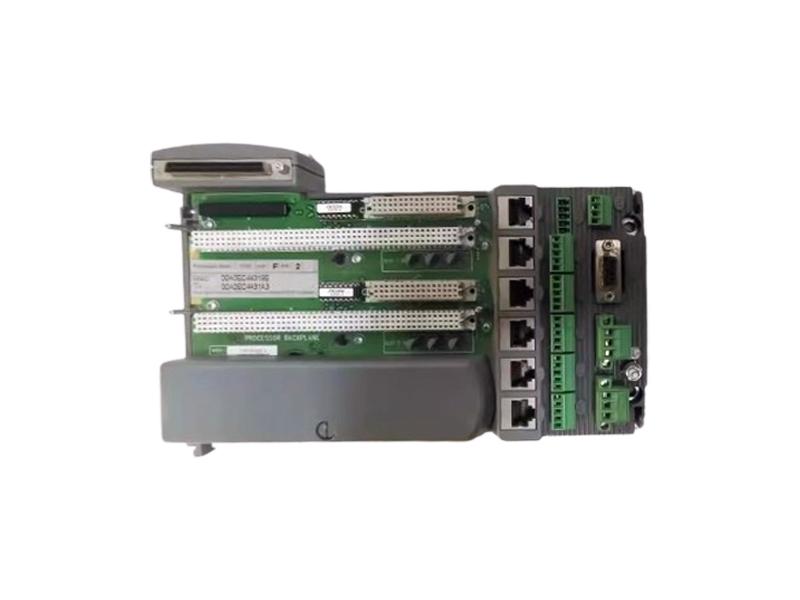

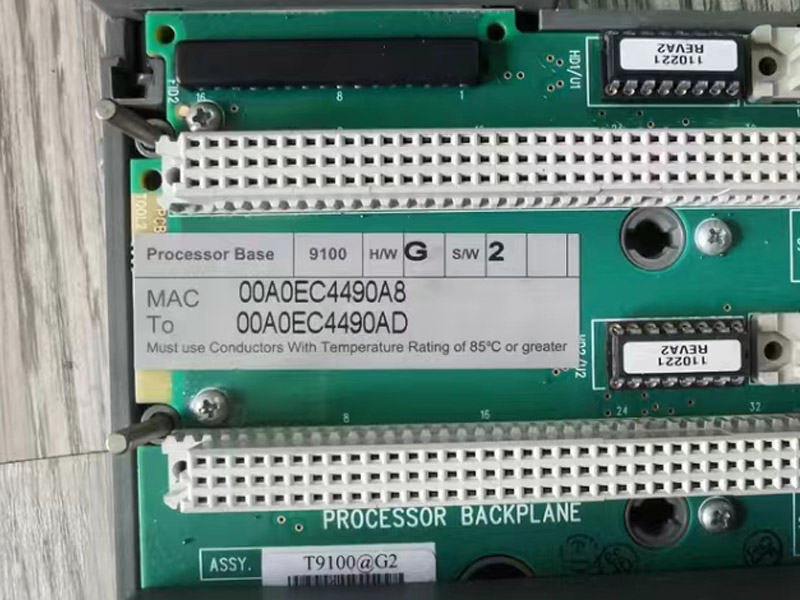

ICS T9100 Processor Backplane Unit 460 g Description： The T9100 processor base unit has six auto-sensing 10/100BASE-TX Ethernet ports which allow it to connect to a local area network through standard Rj45 Ethernet cable. These are two ports for each processor module. If a direct connection is required from the controller to the computer (for example, during setting up) use a crossover cable. This will depend on the characteristics of the network interface in the PC. The fixed connectors on the controller are RJ45 sockets. Use Cat5e (enhanced) cables with RJ45 modular plugs for the network cabling. Connect the network cables to the sockets on the T9100 processor base unit. • For each network connection, insert the RJ45 modular plug on the cable into the appropriate socket. • Make sure the length of the cable does not exceed 100m (328 ft). Refer to the illustration for an example. The AADvance controller includes a Program Enable key that protects the application from access that has not been approved for change. The key must be fitted to the KEY connector on the T9100 processor base unit before you can download and make changes to an application. The program enable key is supplied with the processor base unit and is fitted as shown. The modules of the AADvance controller mount onto the base units. The processor module(s) mount onto the T9100 processor base unit, while the various I/O modules mount onto the T9300 I/O base unit and associated termination assemblies.
