ICS T9432 Analogue input module 16 channel

ICS T9432 Analogue input module, 16 channel, isolated

Brand:
ICS
Item NO.:
T9432
Order(MOQ):
1 PC
Market Price:
999
Product Origin:
Mexico
Shipping Port:
Xiamen
Lead Time：
In stock
Weight：
340 g
Warranty:
1 year

Product Detail

ICS T9432 Analogue input module 16 channel
Description：

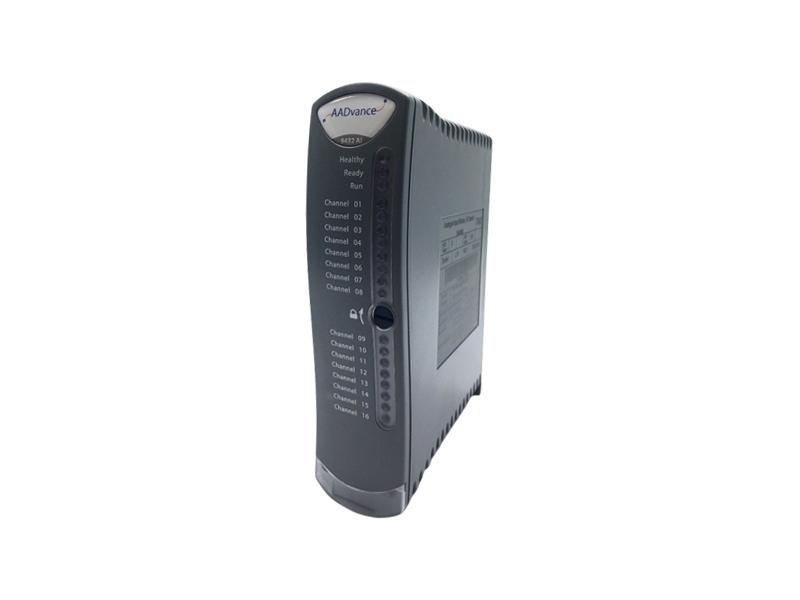

T9432 is belong to ICS Triplex Programmable Logic Controllers model. It is analogue input has sixteen isolated analogue input channels and measures input current in the range 0 mA to 24 mA. Each channel supplies digital state and analogue data to the processor for process monitoring. Each input has five configurable voltage bands (there are eight distinct switching thresholds to allow hysteresis), each of which can be adjusted to supply line monitoring and field device diagnostics. The input module makes local module and channel status indications through its front panel LEDs, the same indications can be connected to application variables and viewed at the Workbench. Comprehensive diagnostics at system and module levels give clear indications which help fast maintenance and repair. The module incorporates signal and power isolation circuits, which divide each input channel from the remainder of the system, protecting the controller from field faults. An independent watchdog arrangement monitors the module operation and supplies more fault containment by a shutdown mechanism if a fault occurs.
These modules mate with the T9831/2/3 Analogue Input termination assemblies. When analogue modules are installed in a dual or TMR configuration they supply fault tolerant input functionality, enabling you to replace input modules without interrupting the channel input data flow to the processor modules. This module supports HART commands #03 to collect data from the field device. The application can be configured to use HART information to monitor and respond to device conditions, it may also be used to supply module diagnostic information such as comparison and error reporting.
Safety integrity level: IEC 61508 SIL 3
Safety level degradation: 1oo1D, 1oo2D and 2oo3D
Safety accuracy limit: 200 µA
Self test interval: < 1 hour; system dependent
Sample update interval (no filter): 6 ms
Value of least significant bit: 0.98 µA
Error at 25 °C ± 2 °C
After 1 year at 40 °C 0.21 % + 10 µA
After 2 years at 40 °C 0.22 % + 10 µA
After 5 years at 40 °C 0.23 % + 10 µA
Temperature drift: ( 0.01 % + 0.3 µA ) per °C
Voltage: Redundant + 24 Vdc nominal
Module supply power dissipation: 4.0 W (13.6 BTU/hr)
Input Current：4 mAdc to 20 mAdc
Resolution：0.98 µA, 15-bit
Measurement calibrated accuracy at 25 °C： ± 0.05 mA
Channel isolation - maximum withstanding：± 1.5k Vdc for 1 minute
