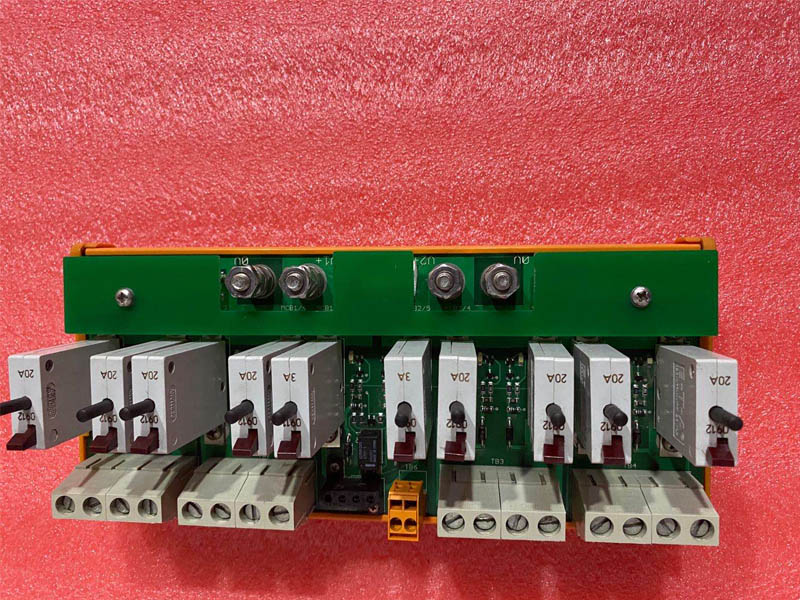

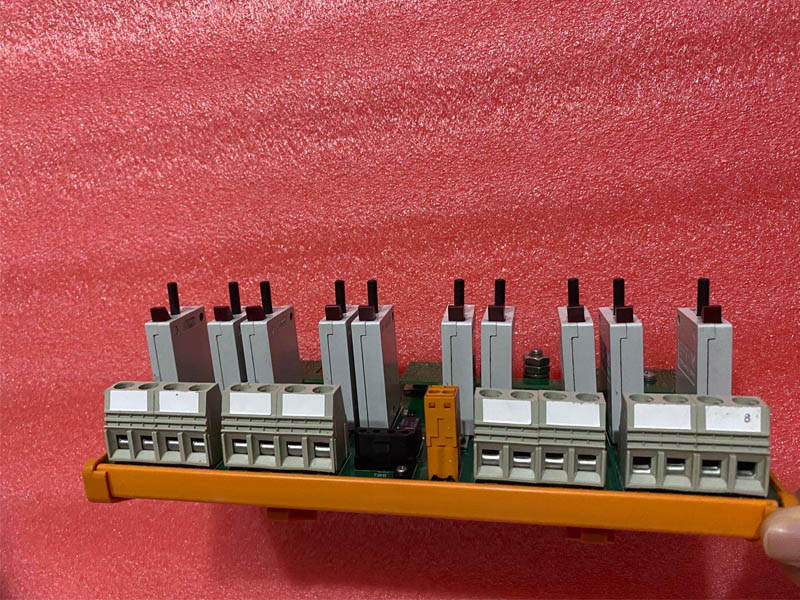

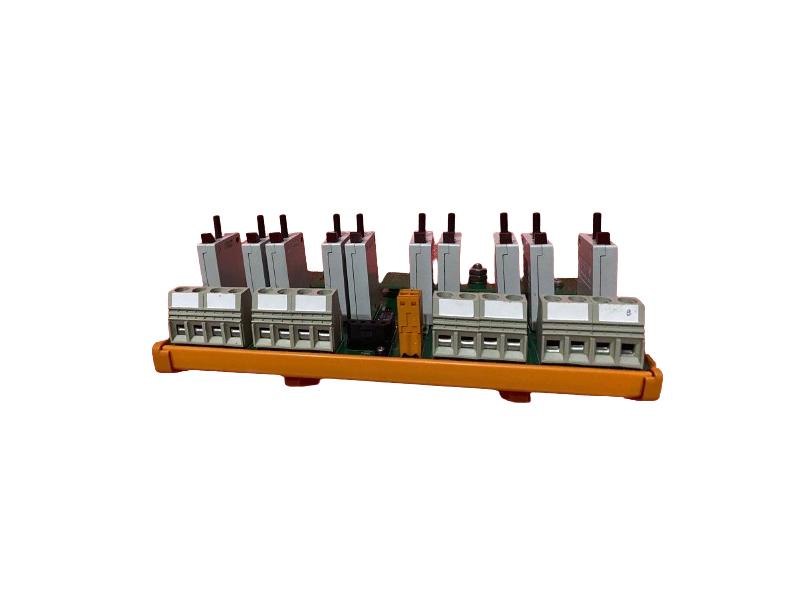

ICS Triplex T8292 Trusted Power Distribution Unit MCB 24VDC
Description:
The dual 5-channel Trusted® Power Distribution Unit Miniature Circuit Breaker (MCB) 24 V is designed for N+1 or 100 % redundant 24 Vdc power distribution applications. The unit is designed to be mounted on a standard DIN rail. Monitoring circuits provide local LED indication of individual MCB ‘trip’ status and a relay contact provides a common alarm signal output.
Power fed to the Trusted Power Distribution Unit MCB 24 V is sub-distributed via the dual MCBs either as an N+1 or 100 % redundant configuration, via the fitting (for N+1) or removal of the board mounted link, LK-N+1.
The standard factory-fitted configuration is N+1.
Each MCB is monitored for open circuit condition and provides a local on-board LED indication of individual ‘trip’ status (red LED displayed for tripped). A volt-free relay contact provides the common alarm output signal (contact open for tripped) for connection to external alarm monitoring circuits. For modules up to issue 5 the maximum difference between supply feeds must not exceed 1 V.
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
