ICS Triplex T8100 TMR CONTROLLER CHASSIS
Description:
The Trusted^TM Controller Chassisis designed to accommodate a maximum of eight single-width Trusted^TM Interfaces and up to two triple-width Trusted^TM TMR Processors.

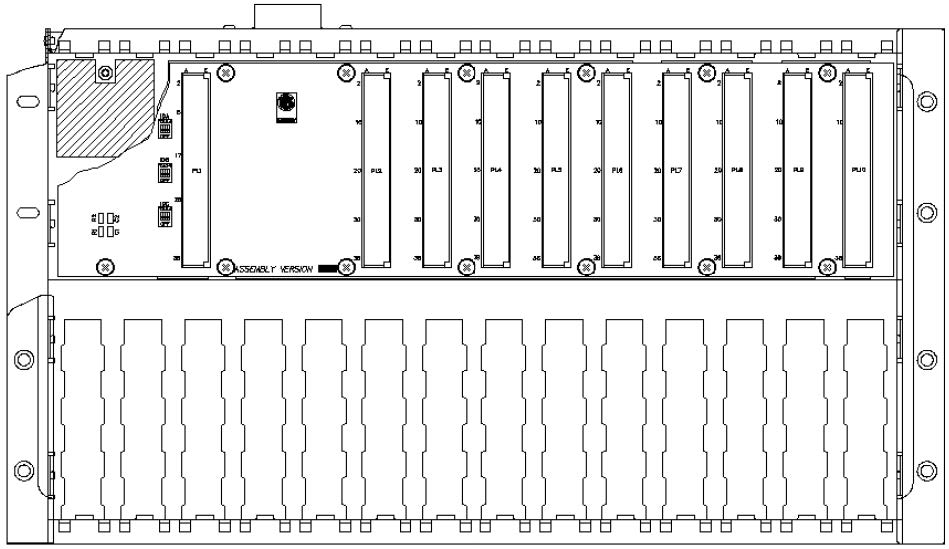

The chassis consists of a backplane, power connection terminals, and the Inter-Module Bus connectors. The chassis is 6U (10.5ins) high and is either front mounted in a 483mm (19-inch) fixed frame or swingframe, or can be panel (rear) mounted in a suitable electrical enclosure.
The two slot positions on the left (as viewed from the front) are for installing the Trusted^TM TMR Processors. The eight remaining
slots are for installing the Trusted^TM Interfaces. Each module plugs into the chassis backplane, connecting to the triplicated Inter-Module Bus. Double and single connector options are available.
The backplane is part of the TrustedTM Controller Chassis andprovides electrical interconnection and other services for the modules. A triplicated 4-position DIP switch is provided for user configuration of the system identification.
Power connection to the TrustedTM Controller Chassis is provided via a 4-pole connector on the chassis backplate. The TrustedTM Controller Chassis isdesigned for a nominal dual +24V dc power supply.
The controller chassis can be either swing frame or fixed frame mounted. The chassis may also be panel (rear) mounted by the addition of a panel mounting kit T8380 that comprises a pair of brackets with rear facing ears. The chassis can house up to two TMR processor modules and up to eight I/O and/or interface modules. The inter-module bus (IMB) backplane is part of the chassis and provides the electrical interconnection and other services for the modules. The maximum data transfer rate of the IMB is 150Mbaud. There are no user-serviceable parts inside the chassis.
Modules are inserted by sliding them carefully into their slot position. Ensure that the U-channels of the module top and bottom casings engage the raised guides of the upper and lower chassis plates. Ejector levers on the modules secure the modules within the chassis.
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
