General Electric IS220PDIOH1A  new inventory with high quality
Description:

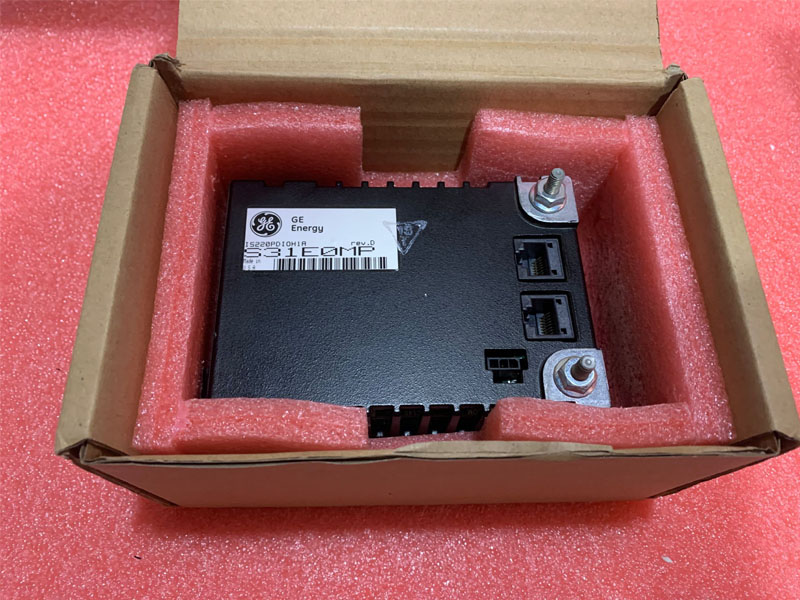

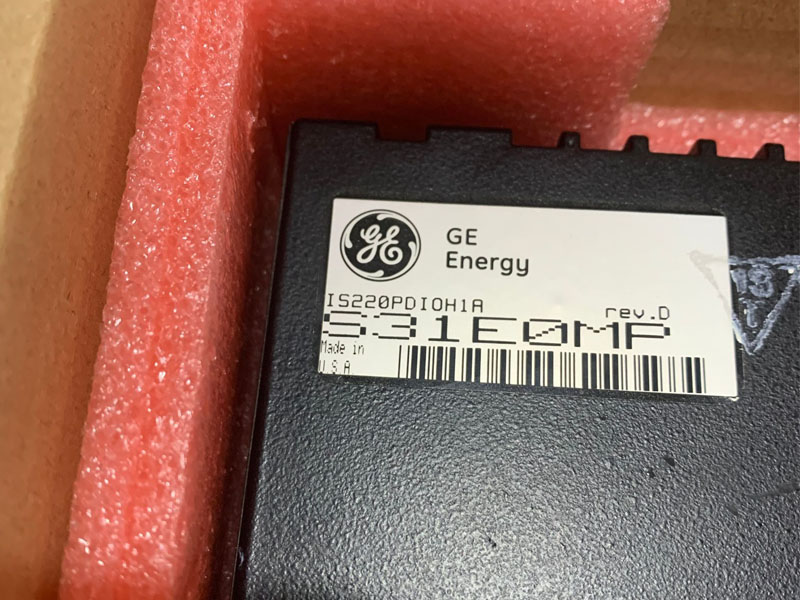

IS220PDIOH1A is part of GE Mark Vie series module, it is a Discrete I/O pack. IS220PDIOH1A usually with terminal boards (accessories) IS200TDBSH2A or IS200TDBTH2A.

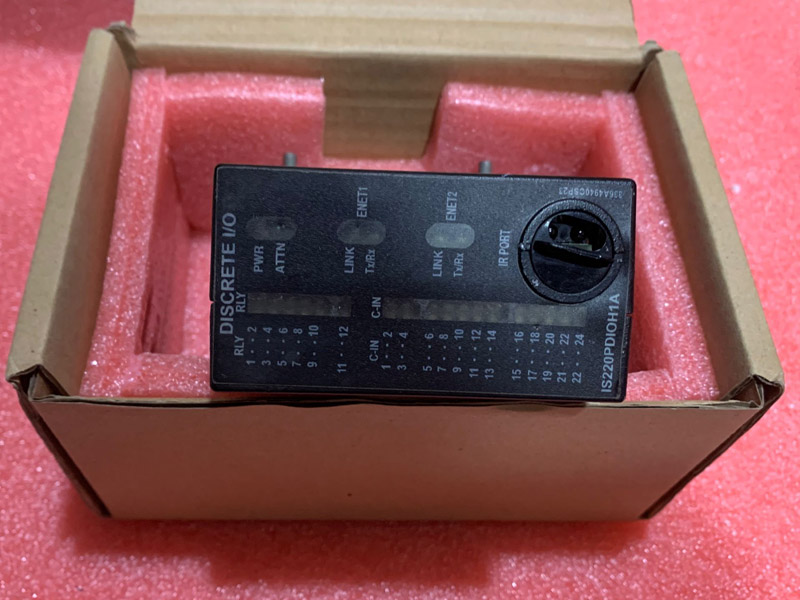

The Discrete Input/Output (PDIO) pack provides the electrical interface betweenone or two I/O Ethernet networks and a discrete inputoutput terminal board. Thepack contains a processor board common to all Mark* Vle distributed I/O packsand an acquisition board specific to the discrete input output function. The packaccepts up to 24 contact inputs, controls up to 12 relay outputs, and receivesterminal board specific feedback signals. The associated terminal boarddetermines voltage capability of PDIO. System input to the pack is through dualRJ45 Ethernet connectors and a three-pin power input. Discrete signalinput/output is through a DC-62 connector that connects directly with theassociated terminal board connector. Visual diagnostics are provided throughindicator LEDs. and local diagnostic seral communications are possible throughan infrared port.
PDIO is the functional equivalent of a PDIA and PDOA I/O pack combined intoa single assembly. For simplex applications, it goes on a TDBS terminal boardthat is the equivalent of a SRLY relay terminal board combined with a STCIcontact input terminal board. For TMR applications, it goes on a TDBT terminalboard that, with the WROB option, provides the equivalent of a TRLYH1B relayterminal board combined with a TBCI contact input terminal board.
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment: T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
Product details:
