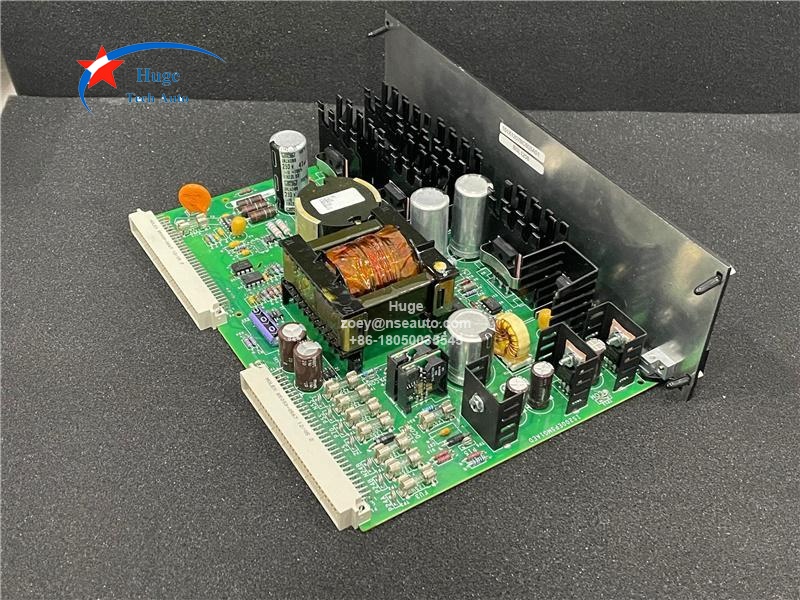

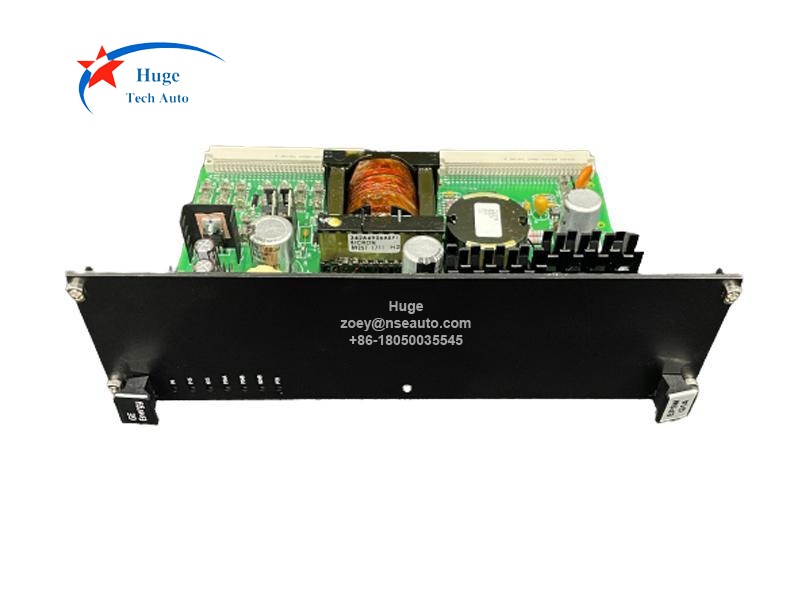

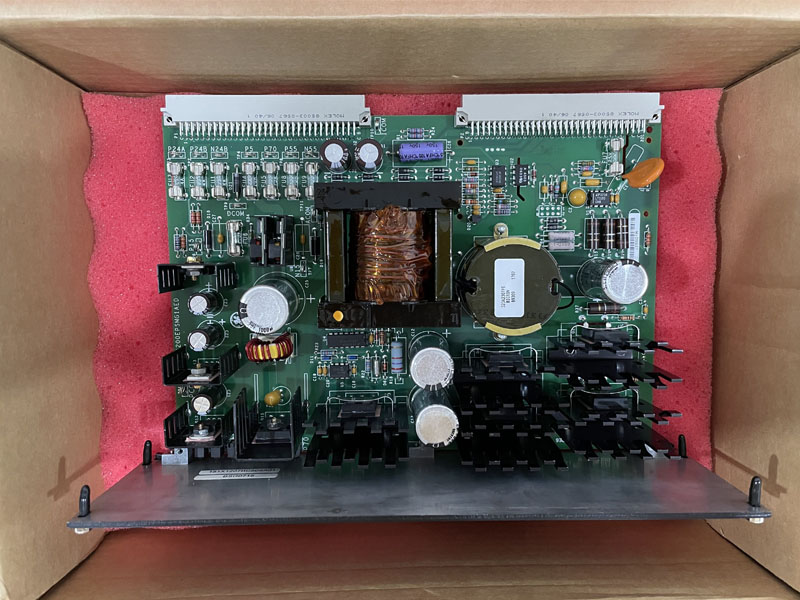

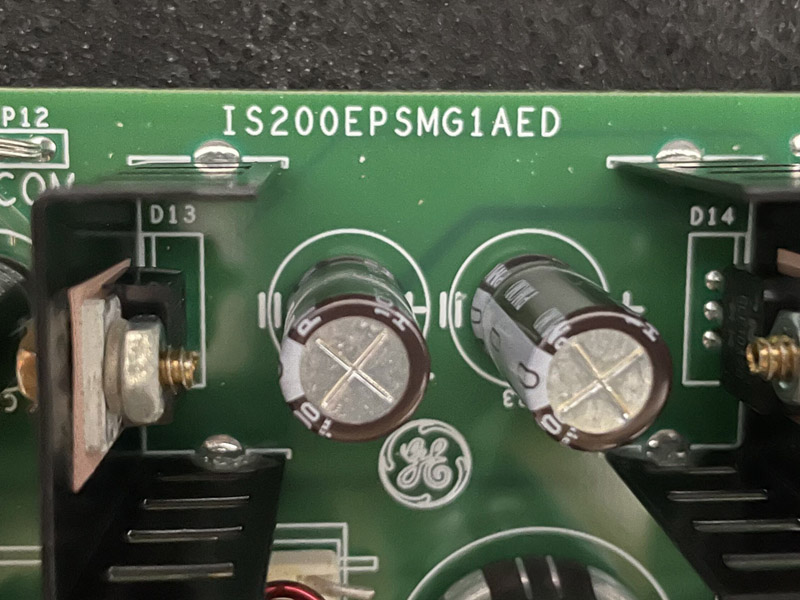

GE IS200EPSMG1AED EX2100 Exciter Power Supply Card
Description：
IS200EPSMG1AED is part of GE EX2100 products, it is a EX2100 Exciter Power Supply Card which can provide power to other controllers.

IS200EPSMG1A converts 125 V dc from the EPDM into the voltages required for the control system. There are three independent power supplies that supply power to
each of the controllers M1, M2, and C. These supplies are located in the power supply module mounted below the control rack in the control cabinet.
The EPSM supplies +5 V dc, ±15 V dc, and +24 V dc to the controller. Power is also supplied to modules external to the control rack as follows:
•  ±24 V dc to power the EDEX de-excitation module, crowbar module, EGDM, and EDCF
•  Isolated +70 V dc for contact wetting to the EXTB and ECTB boards
