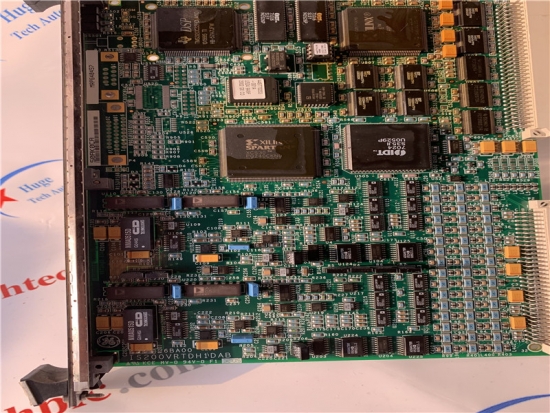

GE IS200SPIDG1ABA PROFIBUS Master Gateway module accessory terminal board
Description:
IS200SPIDG1ABA is designed as GE accessory ID board. It is used with PROFIBUS Master Gateway Analog output pack IS220PPRFH1A or IS220PPRFH1B. Mark VIe offers a PROFIBUS DP-V0 and DP-V1, Class 1 master that maps I/O
from slave devices to the controllers.
The gateway is an I/O module that communicates on the 100 MB Ethernet I/O network to the controllers and on an RS-485 interface to slave devices. It supports 9.6 KB to 12 MB communications for up to 125 nodes with 244 bytes of I/O per slave. Data can be communicated between the controller and the PROFIBUS I/O module as fast as 10 ms. Data s then asynchronously communicated to the slaves at the fastest possible rate, determined by the PROFIBUS network baud rate, slave quantity, I/O quantity, and slave response time. At a 10 ms execution rate (frame rate), 500 inputs and 500 outputs (half
Boolean and half analog) can be processed. For input event detection, Boolean inputs can be configured for sequence of events (SOE) logging with 10 ms time tags. Analog data can be configured for point-to-variable data type conversion
and scaling. Online downloads of control software are supported.
Also, IS200SPIDG1A can be used with CANopen I/O pack IS220PCNOH1A or IS220PCNOH1B.
