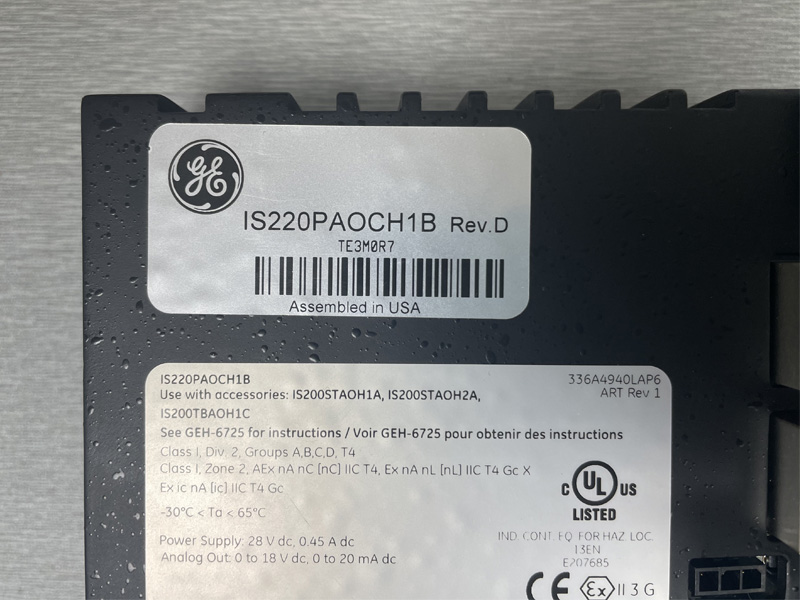

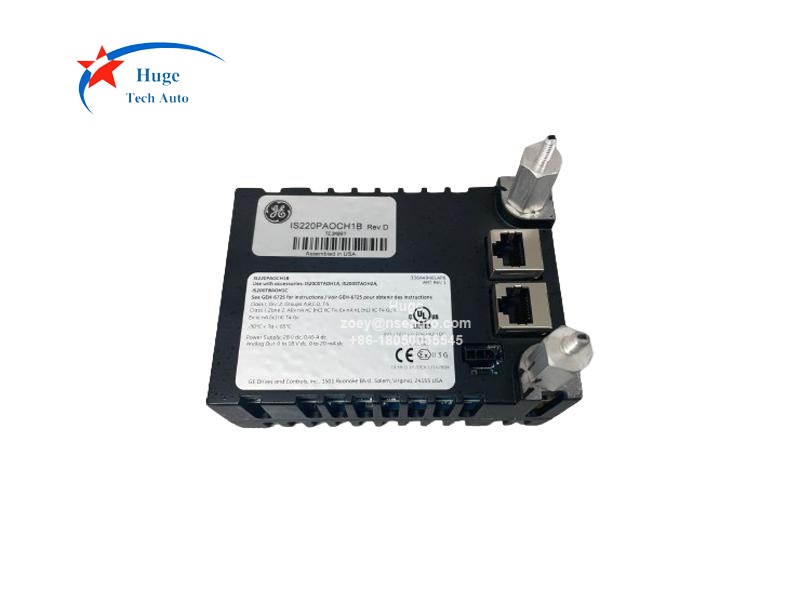

GE IS220PAOCH1B Analog Output Module
Description:
IS220PAOCH1B is GE Mark Vie series family analog output pack. It is with terminal boards (accessories) IS200STAOH1A, IS200STAOH2A, or IS200TBAOH1C.
The Analog Output (PAOC) pack provides the electrical interface between one or two I/O Ethernet networks and an analog output terminal board. The pack contains a processor board common to all Mark* Vle distributed I/O packs and an acquisition board pair specific to the analog output finction. The pack is capable of providing up to eight simplex 0-20 mA current loop outputs and includes an analog to digital converter for current feedback from each output.
Input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input. Output is through a DC-37 pin connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs, and local diagnostic serial communications are possible throughan infrared port.
