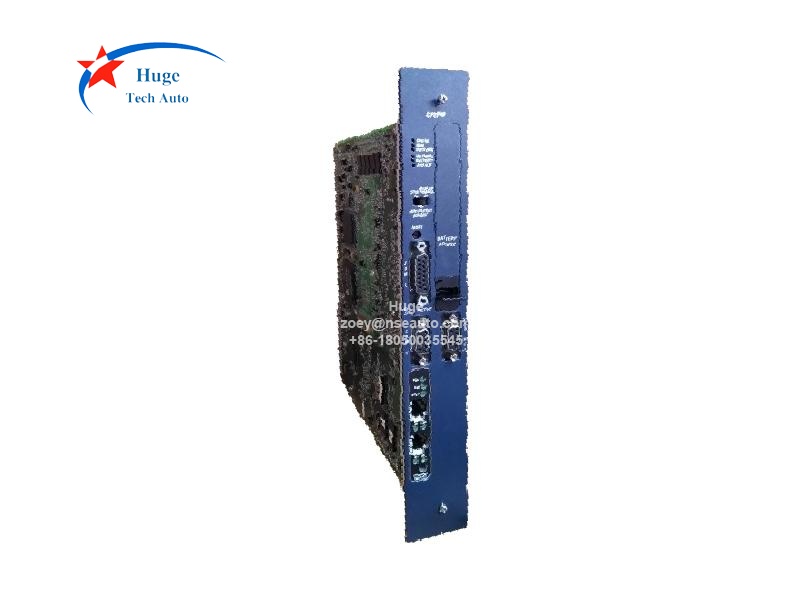

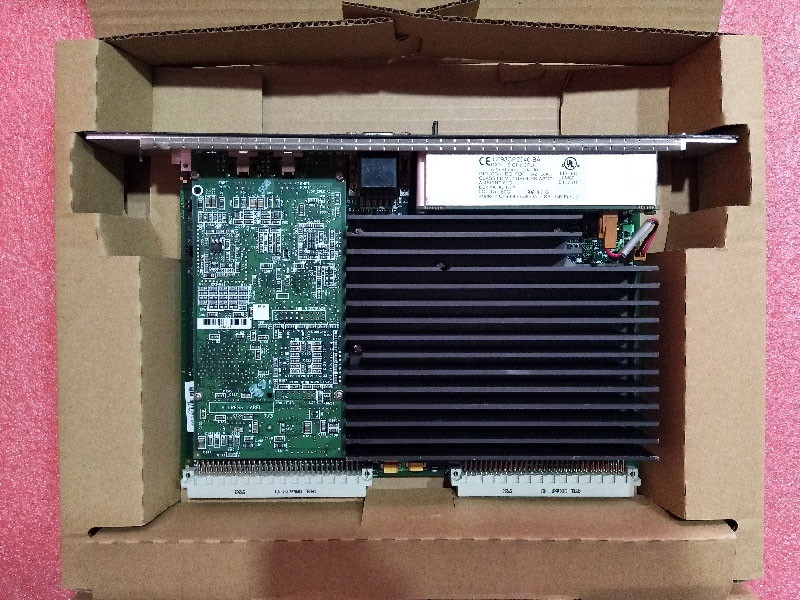

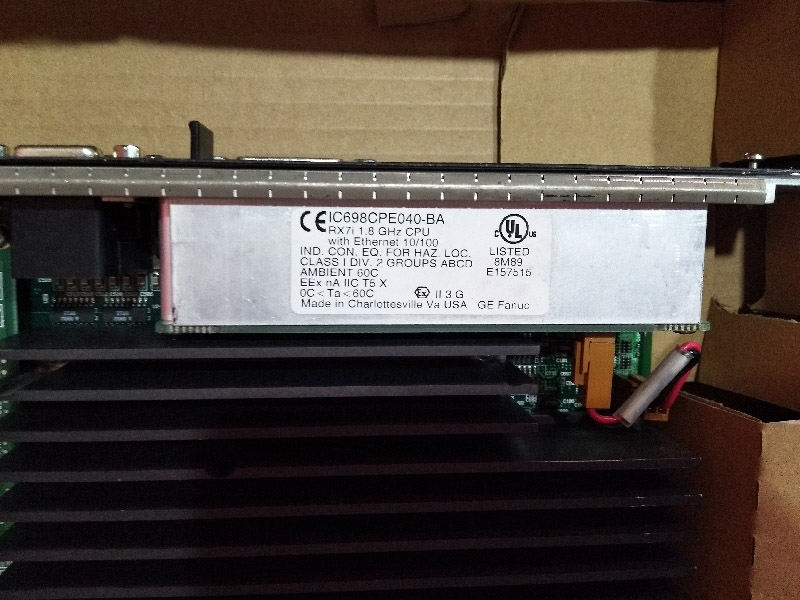

GE IC698CPE040 RX7i VME 1800 MHz Central Processing Unit

GE IC698CPE040 PACSystems RX7i Central Processing Unit 1800MHz, Pentium-M CPU, 64MB user memory

Brand:
General Electric PLC
Item NO.:
IC698CPE040
Order(MOQ):
1 PC
Payment:
T/T
Market Price:
1999
Price:
$1999
Product Origin:
USA
Shipping Port:
Xiamen
Lead Time：
In stock
Warranty:
1 year

Product Detail

GE IC698CPE040 RX7i VME 1800 MHz Central Processing Unit
Description:
IC698CPE040 is belong to GE PACSystems. It is a RX7i CPUs with embedded Ethernet Interface. Among the RX7i CPUs, IC698CPE040 is1800MHz, Pentium-M CPU with 64 MB of user memory and 64 MB of user flash.
The PACSystems controller environment combines performance, productivity, openness and flexibility. The PACSystems control system integrates advanced technology with GE Fanuc’s existing systems. The result is seamless migration that protects your investment in I/O and application development.
The RX7i CPUs are programmed and configured by the programming software to perform real time control of machines, processes, and material handling systems. The CPU communicates with I/O and smart option modules over a rack-mounted backplane using the VME64 Standard format. It communicates with the programmer and HMI devices via the embedded Ethernet ports or a serial port using SNP Slave protocol.
Features:
▪ Contains 64 Mbytes each of battery-backed user memory and non-volatile flash user memory for user data (program, configuration, register data, and symbolic variable) storage.
▪ Access to bulk memory via reference table %W.
▪ Configurable data and program memory.
▪ Programming in Ladder Diagram, C, Structured Text, and Function Block Diagram.
▪ Auto-located Symbolic Variables that can use any amount of user memory.
▪ Support for Series 90-70 discrete and analog I/O, communications, and other modules. For a list of modules supported, refer to the PACSystems RX7i Installation Manual, GFK-2223.
▪ Support for all VME modules supported by Series 90-70.
▪ Rx7i data monitoring over the web. Allows a combined total of up to 16 web server and FTP connections.
▪ Up to 512 program blocks. Maximum size for a block is 128KB.
▪ Test Edit mode that allows you to easily test modifications to a running program.
▪ Bit-in-word referencing
▪ Battery-backed calendar clock.
▪ CPU and module firmware upgrades via Winloader through CPU’s RS-232 or RS-485 serial port. ▪ Three isolated serial ports: an RS-485 serial port, an RS-232 serial port, and an RS-232 Ethernet station manager serial port.
▪ An embedded Ethernet interface with: 
Data exchange using Ethernet Global Data (EGD) 
TCP/IP communication services using SRTP 
Support for SRTP Channels, Modbus/TCP Server, and Modbus/TCP Client 
Full programming and configuration services 
Comprehensive station management and diagnostic tools 
Two full-duplex 10BaseT/100BaseT/TX (RJ-45 Connector) ports with an internal network switch providing auto-negotiated network speed, duplex mode, and crossover detection. 
User-configurable Redundant IP address 
Time synchronization to SNTP time server on Ethernet network (when used with Release 5.00 or later CPU module).
Power requirements:
+5 VDC: 6.8 Amps nominal
+12 VDC: 0.003 Amps nominal
-12 VDC: 0.003 Amps nominal
Operating temperature:
0 to 60°C (32°F to 140°F), fan tray required
Boolean execution speed, typical:
0.02391ms per 1000 Boolean contacts/coils
Time of Day Clock accuracy：Maximum drift of ±2 seconds per day

Elapsed Time Clock (internal timing) accuracy ：Maximum drift of ±2 seconds per day
