EPRO PR9376/010-011 Hall Effect Speed/Proximity Sensor
Description：

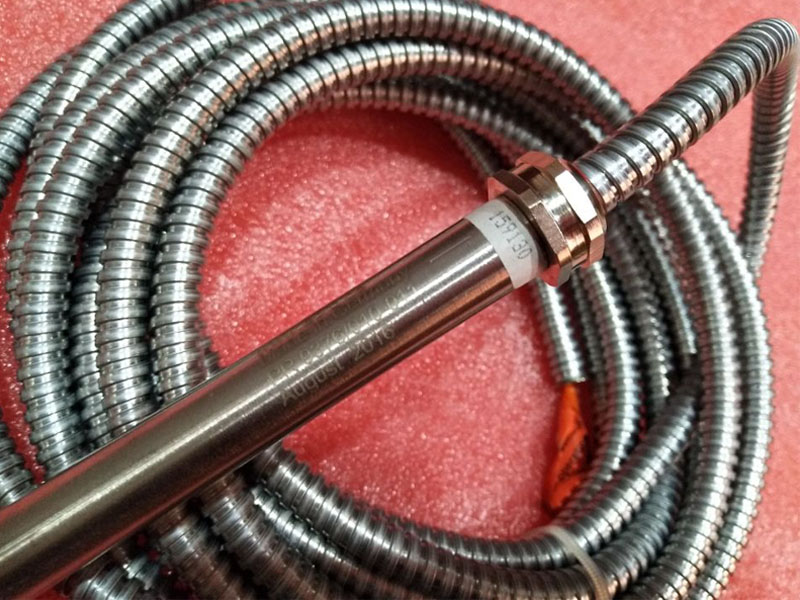

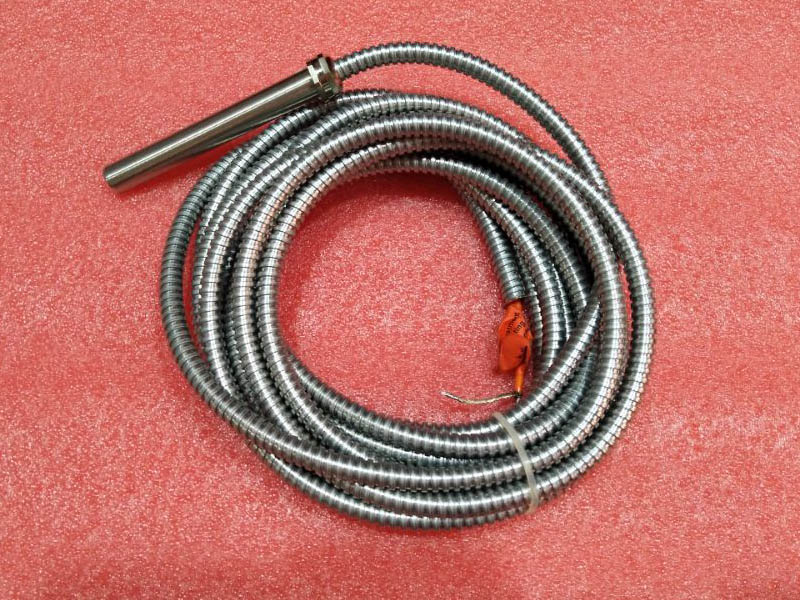

PR9376/010-011 is the sensor with 5 meters armored cable, open cable end.
Non-contact Hall effect sensor designed for speed or proximity measurements on critical turbomachinery applications such as steam, gas and hydro turbines, compressors, pumps, and fans.
Dynamic Performance:
Output: 1 AC cycle per revolution/gear tooth
Rise/Fall Time: 1 µs
Output Voltage (12 VDC at 100 Kload): High >10 V / Low <1V
Air Gap: 1 mm (Module 1); 1.5 mm (Module ≥2)
Maximum Operating Frequency: 12 kHz (720,000 cpm)
Trigger Mark Limited to: Spur Wheel, Involute Gearing Module 1; Material ST37
Measuring Target:
Target/Surface Material: Magnetic soft iron or steel (non stainless steel)
Environmental:
Reference Temperature: 25°C (77°F)
Operating Temperature Range: -25 to 100°C (-13 to 212°F)
Storage Temperature: -40 to 100°C (-40 to 212°F)
Sealing Rating: IP67
Power Supply: 10 to 30 VDC @ max. 25mA
Resistance: Max. 400 Ohms
Material: Sensor – Stainless steel; Cable - PTFE
Weight (Sensor only): 210 grams (7.4 oz)
BENEFITS:
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
