EPRO PR6424/010-100+CON021 16mm Eddy Current Sensor

Emerson EPRO PR6424/010-100+CON021 16mm Eddy Current Sensor with Eddy Current Signal Converter CON021

  • Brand:

    EPRO
  • Item NO.:

    PR6424/010-100
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Market Price:

    999
  • Product Origin:

    USA
  • Color:

    Depends on material
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Warranty:

    1 Year
Product Detail

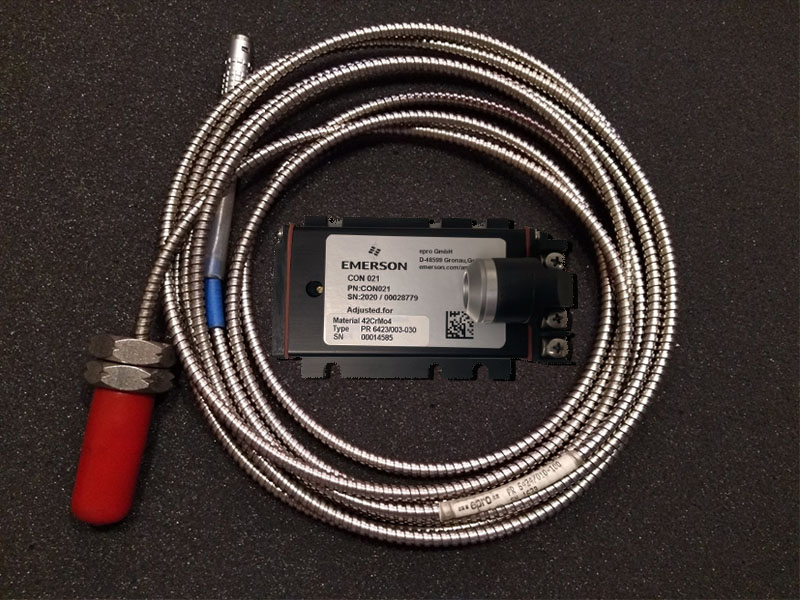

Emerson EPRO PR6424/010-100+CON021 16mm Eddy Current Sensor with Eddy Current Signal Converter CON021
Description:

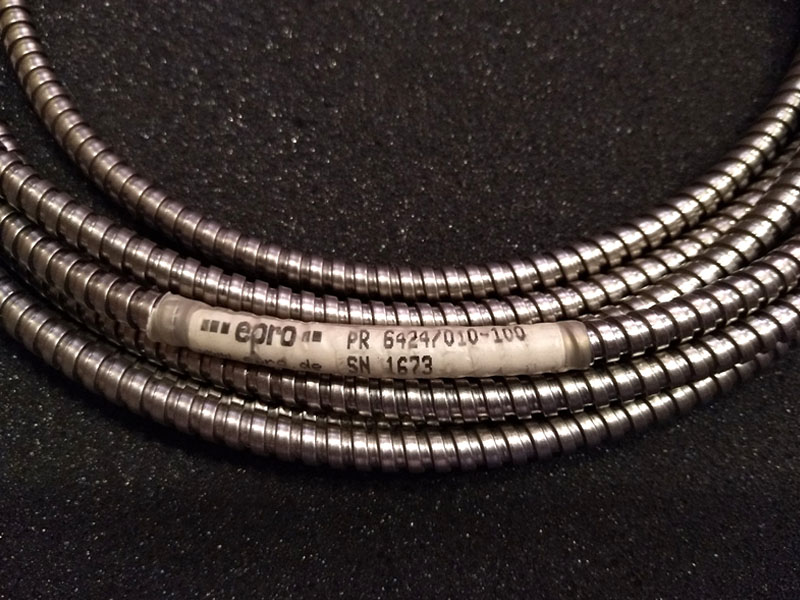

PR6424/010-100 is M18x1.5 sleeve thread, with armored cable, 40mm total sensor length, without daptor plug, 5 meters cable length with LEMO cable end. It is belong to non-contact sensor, which is designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key.
CON021 is the convert, which can be used for PR6424.
Dynamic Performance
Sensitivity/Linearity:4 V/mm (101.6 mV/mil) ≤ ±1.5%
Air Gap (Center):Approx. 2.7 mm (0.11”) Nominal
Long Term Drift:< 0.3%
Range: Static ±2.0 mm (0.079”)
Dynamic 0 to 1,000μm (0 to 0.039”)
Target
Target/Surface Material:Ferromagnetic Steel (42 Cr Mo4 Standard)
Maximum Surface Speed: 2,500 m/s (98,425 ips)
Shaft Diameter: ≥80mm
Environmental:
Operating Temperature Range: -35 to 150°C (-31 to 302°F)
Temperature Error: <4%/100°K(API 670 Compliant)
Pressure Resistance to Sensor Head:  10,000 hPa (145 psi)
Shock and Vibration: 5g @ 60Hz @ 25°C (77°F)
Physical
Material: Sleeve – Stainless Steel, Cable – PTFE
Weight (Sensor & 1M Cable, no Armor) : ~200 grams (7.05 oz)

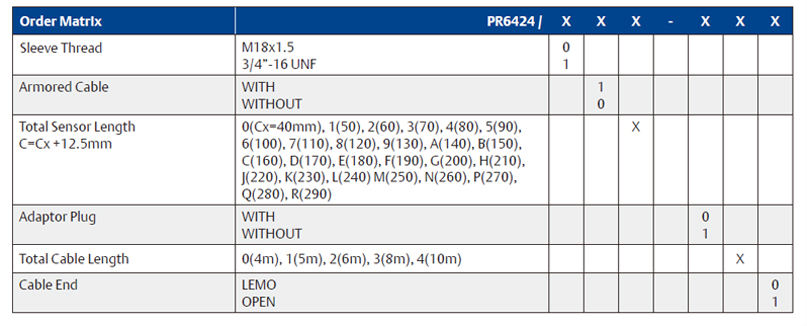

Ordering Information:
