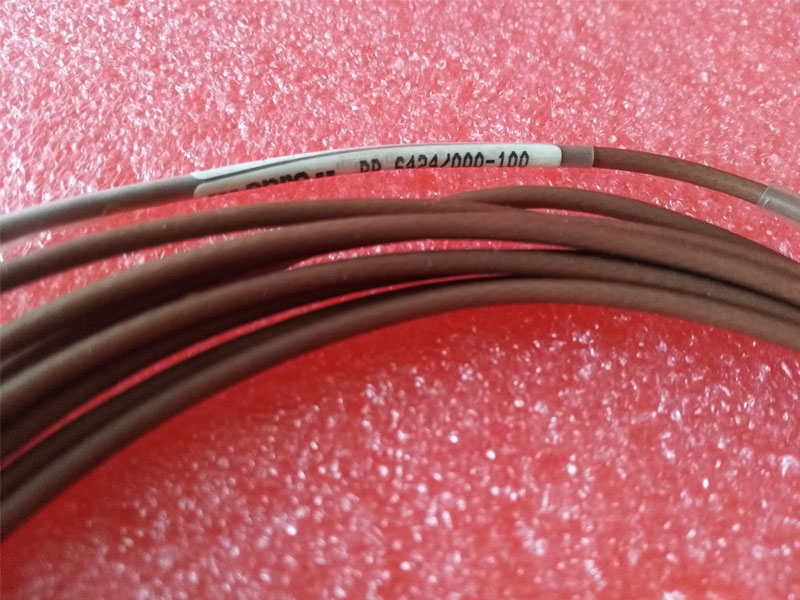

EPRO PR6424/000-100 16mm Eddy Current Sensor without Adaptor Plug
Description:
Non-contact sensor designed for critical turbomachinery applications such as steam,gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key. PR6424/000-100 is M18x1.5 sleeve thread, 40mm sensor without armored cable,  meters total cable without adaptor plug, LEMO cable end.
Dynamic Performance
Sensitivity/Linearity：4 V/mm (101.6 mV/mil) ≤ ±1.5%
Air Gap (Center)：Approx. 2.7 mm (0.11”) Nominal
Long Term Drift：< 0.3%
Range: Static ±2.0 mm (0.079”)
Dynamic 0 to 1,000μm (0 to 0.039”)
Target
Target/Surface Material：Ferromagnetic Steel (42 Cr Mo4 Standard)
Maximum Surface Speed: 2,500 m/s (98,425 ips)
Shaft Diameter: ≥80mm
Environmental:
Operating Temperature Range: -35 to 150°C (-31 to 302°F)
Temperature Error:＜4%/100°K（API 670 Compliant）
Pressure Resistance to Sensor Head:  10,000 hPa (145 psi)
Shock and Vibration: 5g @ 60Hz @ 25°C (77°F)
Physical
Material: Sleeve – Stainless Steel, Cable – PTFE
Weight (Sensor & 1M Cable, no Armor) : ~200 grams (7.05 oz)
