EPRO PR6423/012-040 8mm Tip diameter Eddy Current Sensor with Eddy Current Signal Converter CON021
Description:

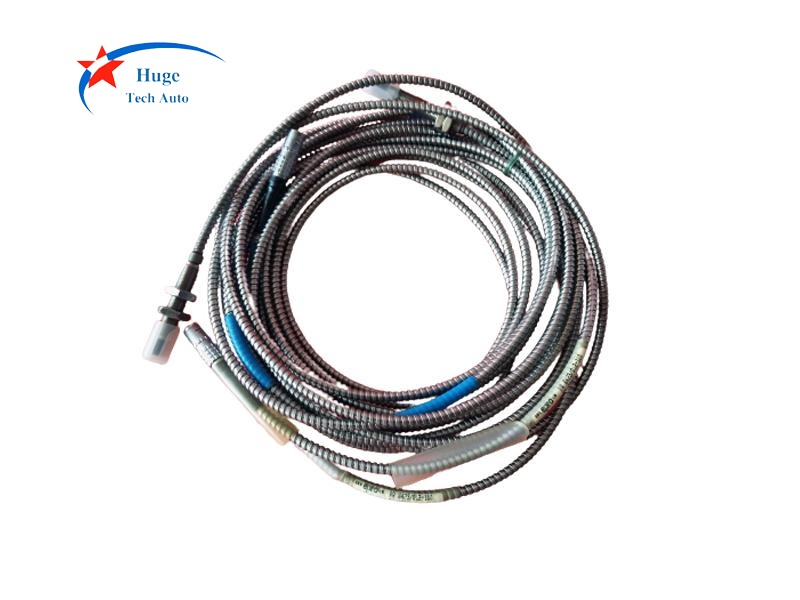

PR6423/012-040 is M10x1 case thread with armored, 45mm sleeve, 10m cable adapter plug and Lemo cable end. It is designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors,  gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key.
PR6423/xxx-xxx(Standard) dimension as below:
A. Case thread, M10x1 or 3/8-24UNF
B. Case Length
C. Wrench flats, SW 8 mm for M10 threads, WS 5/16 in for 3/8-24 UNF threads
D. SW 17 mm for M10 threads, SW 9-16 in for 3/8-24UNF threads
E. Standard cable diameter 2.8 mm (0.110 in), minimum bending radius
25 mm (0.984 in)
F. Armored cable diameter 6 mm (0.236 in), minimum bending radius
35 mm (1.378 in)
G. Optional Adapter Plug after 1m cable from Sensor
H. Cable Length (Tolerances 0... +10%)
I. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end
Ordering Information:
