EPRO PR6423/010-000-CN

Emerson EPRO PR6423/010-000-CN 8mm Tip diameter Eddy Current Sensor

  • Brand:

    EPRO
  • Item NO.:

    PR6423/010-000
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Market Price:

    999
  • Product Origin:

    Germany
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Warranty:

    1 Year
Product Detail

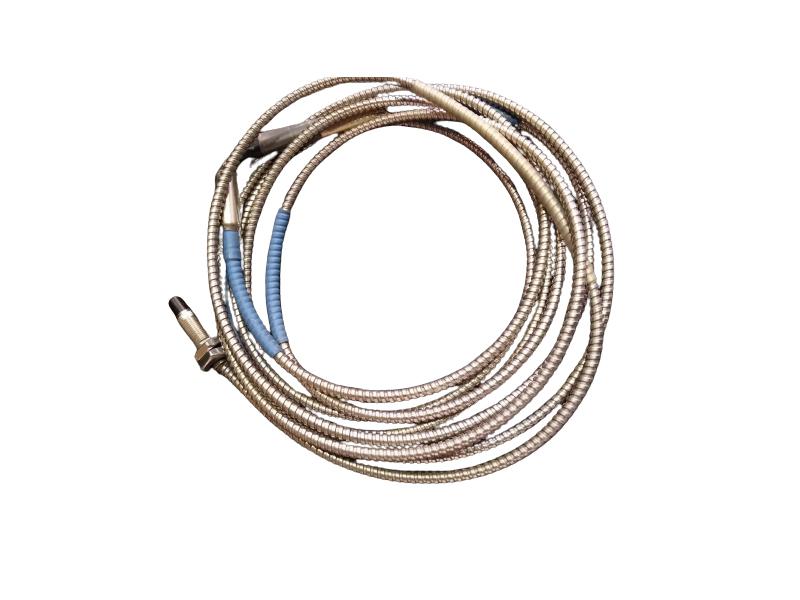

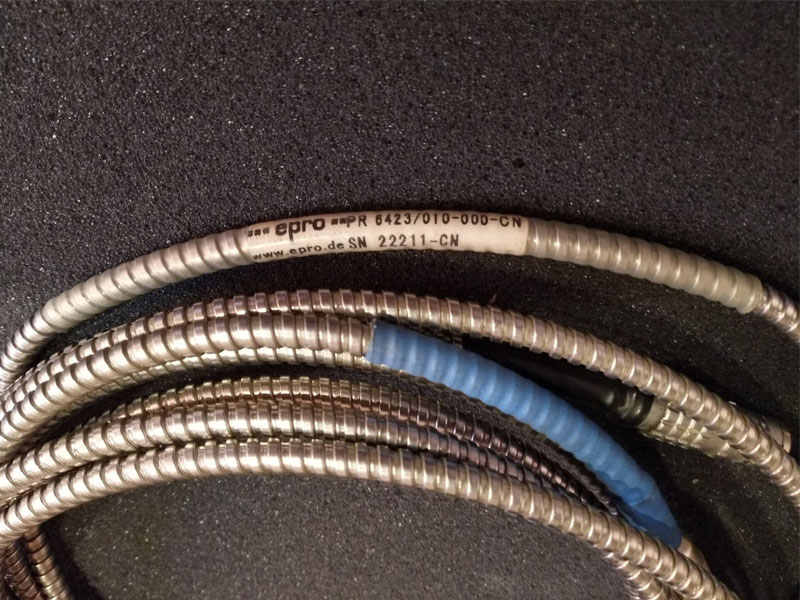

EPRO PR6423/010-000-CN 8mm Tip diameter Eddy Current Sensor
Description:
PR6423/010-000-CN is M10x1 case thread with armored, 25mm sleeve, 4m cable adapter plug and Lemo cable end. It is designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors,  gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key.
PR6423/xxx-xxx(Standard) dimension as below:
A. Case thread, M10x1 or 3/8-24UNF
B. Case Length
C. Wrench flats, SW 8 mm for M10 threads, WS 5/16 in for 3/8-24 UNF threads
D. SW 17 mm for M10 threads, SW 9-16 in for 3/8-24UNF threads
E. Standard cable diameter 2.8 mm (0.110 in), minimum bending radius
25 mm (0.984 in)
F. Armored cable diameter 6 mm (0.236 in), minimum bending radius
35 mm (1.378 in)
G. Optional Adapter Plug after 1m cable from Sensor
H. Cable Length (Tolerances 0... +10%)
I. Lemo connector (male), 11.0 mm (0.433 in) diameter or open cable end


Ordering Information:

Model No.

Case Thread X

Adapter Plug X

Cable Length X

Cable End X

PR6423/00

PR6423/01

PR6423/10

PR6423/11

0 25mm

1 35mm

2 45mm

3 55mm

4 65mm

5 75mm

6 85mm

7 95mm

8 105mm

9 115mm

C 125mm

I 135mm

K 145mm

E 155mm

M 165mm

J 175mm

L 185mm

H 195mm

R Reverse Mount

0 With

1 Without

0 4.0m

1 5.0m

2 6.0m

3 8.0m

F 9.0m

4 10.0m

0 Lemo*

1 Open
