EPRO EMERSON MMS6823 interface card nrand new
Description:

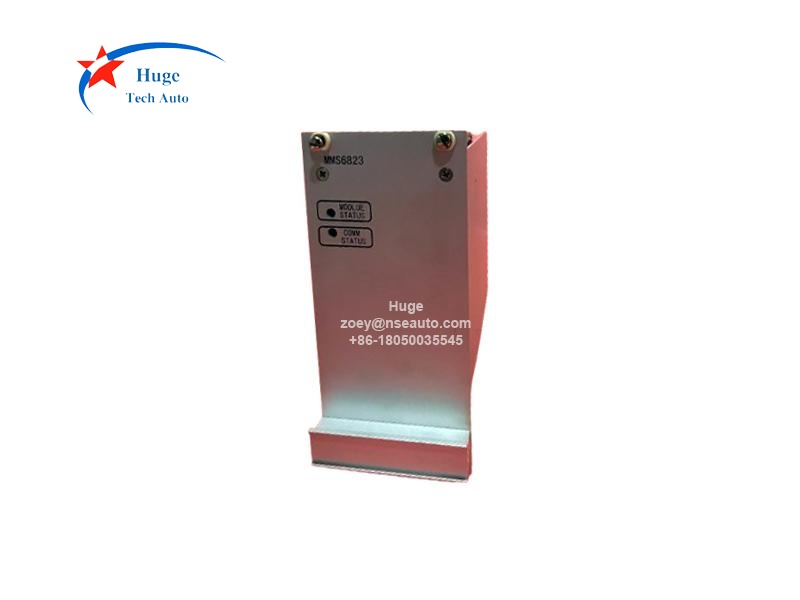

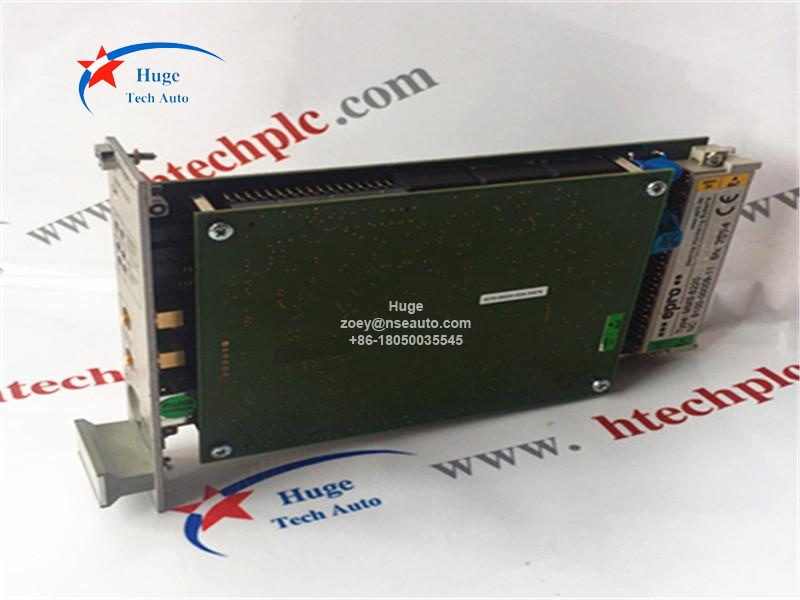

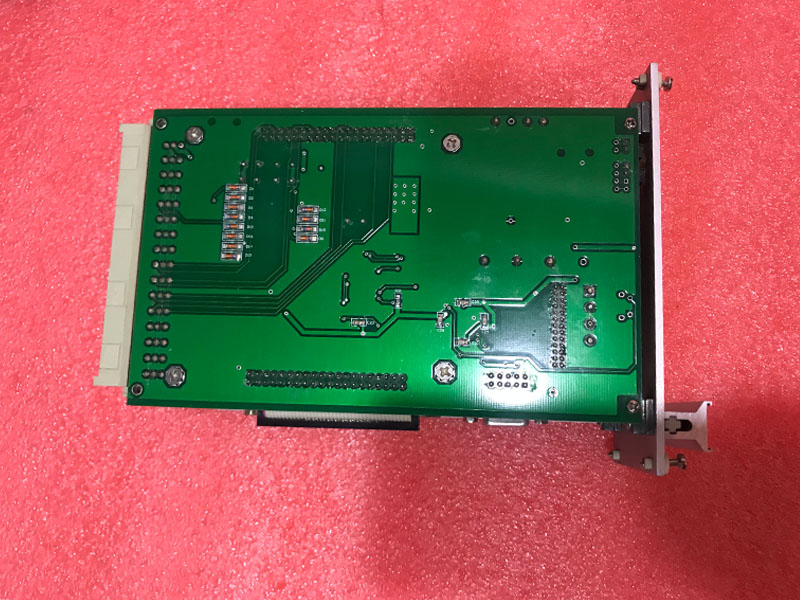

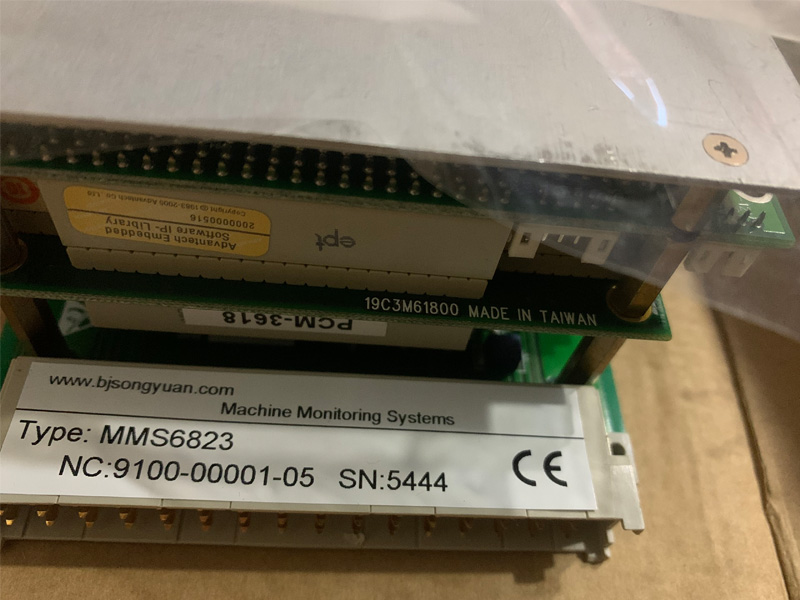

MMS6823 is part of Emerson MMS 6000 machine monitoring system.
The function of the communication interface module MMS6823 is to continuously access the MMS6000 module connected to the bus through the RS485 bus, and at the same time convert the received characteristic value data, alarm and module status data into the standard MODBUS protocol. MODBUS output can choose MODBUS RTU or MODBUS ASCII Agreement method. And convert the received characteristic value data, alarm and module status data into the standard TCP/IP protocol, which can be output through the Ethernet RJ45 interface. These data can be accessed and displayed by the connected vibration analysis system or DCS, DEH and other systems.
The connected MMS6000 module can be configured through MMS6823. The RS485 bus and MODBUS output are connected through the 48-pin socket on the back of the module. The TCP/IP network interface is a standard RJ45 interface located on the rear panel of the module and connected using a standard network cable. The IP address of MMS6823 can be flexibly set according to needs.
