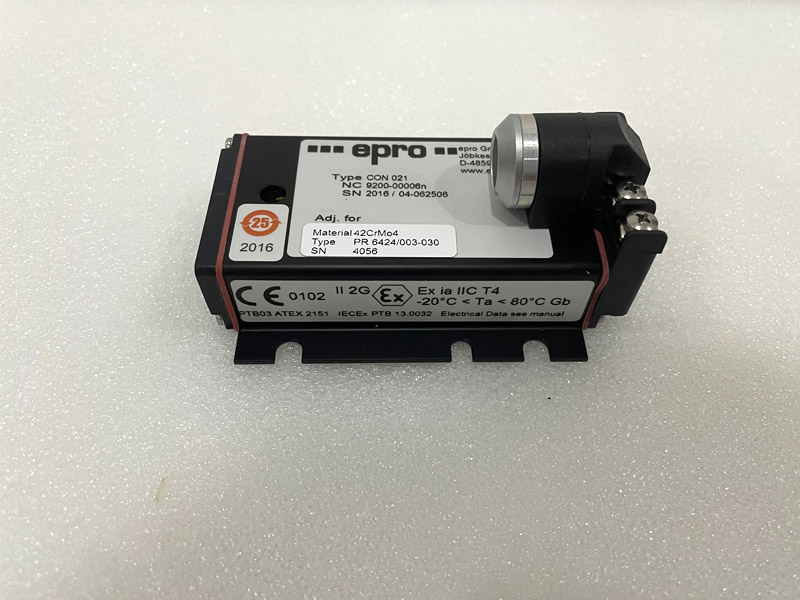

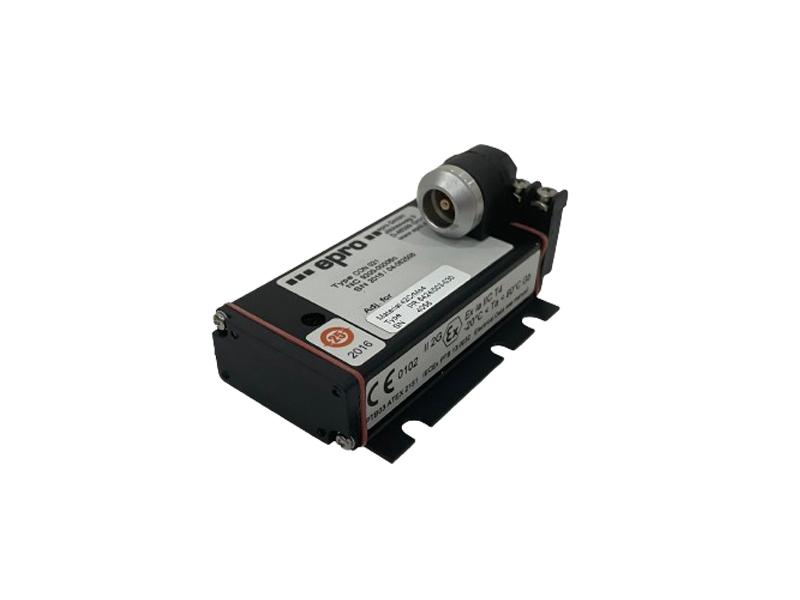

Emerson Epro CON021 Eddy Current Signal Converter
Description:
CON021 Sensor Signal Converter designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft displacement, position, eccentricity and speed/key.
Dynamic Performance
Frequency Range (-3 dB): 0 to 20000 Hz:
Rise Time: <15 µs
NOTE: Designed for PR6422, PR6423, PR6424, PR6425, PR6426, PR 6453
For extended range use: CON021/91x-xxx
PR6425 always requires extended range converter
Environmental
Operating Temperature Range: -30 to 100°C (-22 to 212°F)
Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F)
Protection Class: IP20
Power & Electrical
Supply Voltage Range: -23V to -32V (Output Range - 4V to -20V); -21V to -32V (Output Range - 2V to -18V)
Physical
Housing Material: LMgSi 0.5 F22
Weight: ~120 grams (4.24 oz)
Mounting: 4 Screws M5x20 (Included in Delivery)
Connections: Transducer: Self-Locking Lemo-Plug
 Supply/Output: Screw Terminal Type (max.1.5mm2, wire)

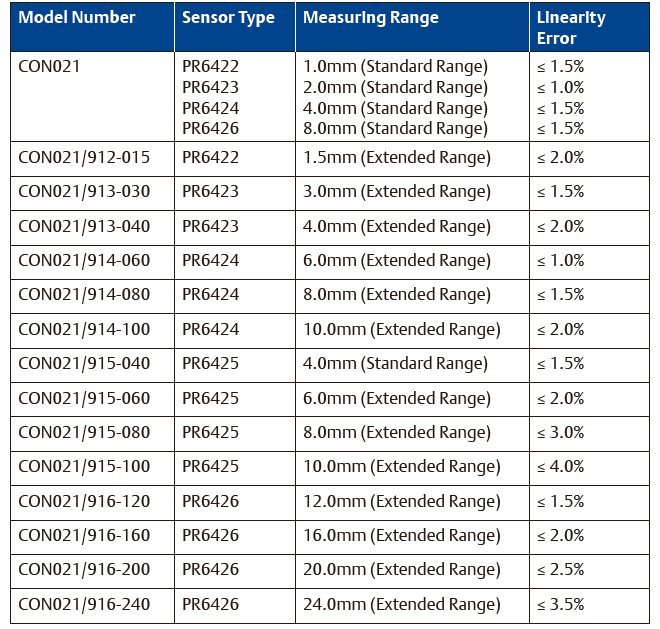

Ordering Information:
