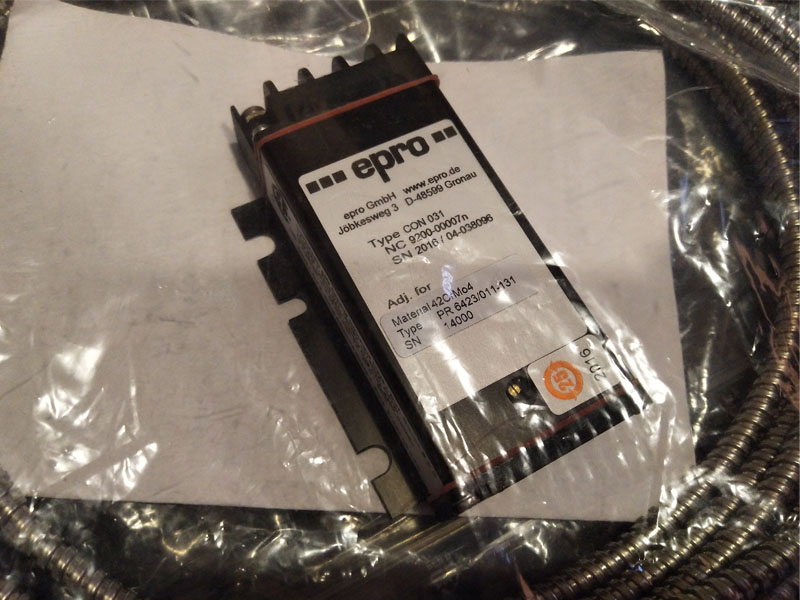

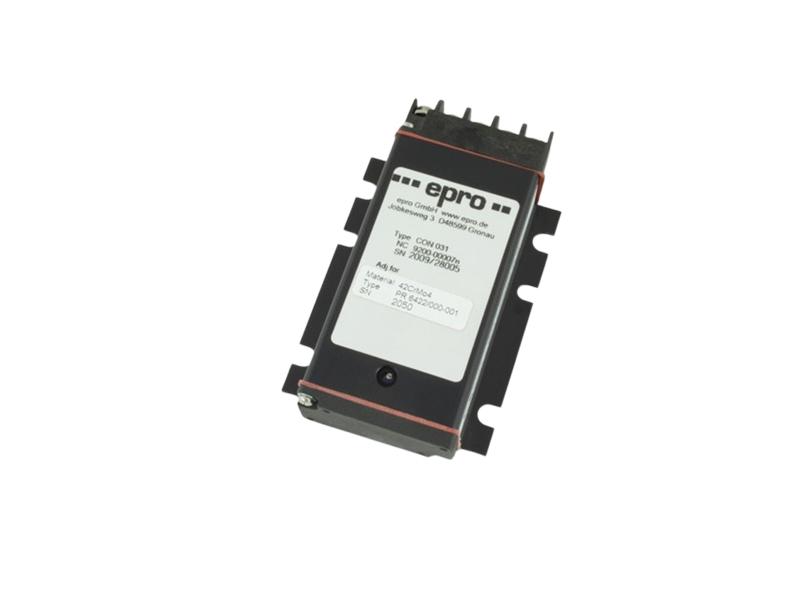

Emerson Epro CON031 Eddy Current Signal Converter
Description:
CON031 Sensor Signal Converter designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft displacement, position, eccentricity and speed/key.

Specifications:
Maximum Output Range: -4 to -20V
Reference Voltage: -12V
Connector Arrangement: Screw Terminal
Frequency Range: 0 to 20 kHz
Rise Time: <15 μs
Sealing: IP20
Temperature Range: -30 to 100°C (-22 to 212°F)
Agency Rating: CE, CSA, ATEX (see spec sheet)
